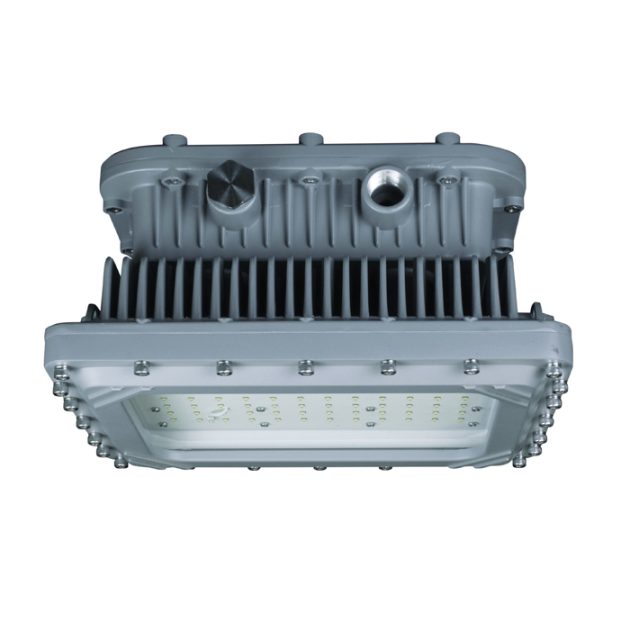

NICOR Titan High Voltage XPQ1B Hazardous Location LED Flood Light
The NICOR Titan XPQ1B is a ruggedized LED luminaire specifically engineered for demanding industrial environments where flammable vapors, gases, or combustible dusts are present. Built to withstand moisture, dirt, and heavy vibration, this fixture is an essential safety and performance upgrade for NEMA 3 and 4X areas, including oil refineries and chemical processing plants.
Delivering high efficacy for significant energy savings, the Titan series is an ideal retrofit for outdated HPS or MH systems[cite: 11]. With a die-cast, copper-free aluminum housing and tempered glass optics, it ensures long-term durability and uniform light distribution in ambient temperatures ranging from -40°F to 122°F.
Key Features:
✅ UL Class 1 Division 2 (Groups A, B, C, D) and Class 2 Division 2 (Groups F, G)
✅ High efficacy performance up to 125.5 Lm/W for maximum energy savings
✅ IP66, NEMA 3, and NEMA 4X rated for superior ingress protection
✅ Multiple beam angles available: 25°, 60°, and 120° (NEMA Type 2, 4, and 6)
✅ Integrated 10kA surge protector to safeguard internal electronics
✅ Corrosion-resistant copper-free aluminum housing with stainless steel hardware
✅ L70 reported lifespan of over 50,000 hours for reduced maintenance
✅ Flexible mounting options, including trunnion and 3/4″ NPT pendant mount
✅ Prewired with 2′ flying leads for easy installation without opening the power supply
📦 Package Options:
🔹 100W Model: Delivers up to 12,170 lumens; available 5000K
NICOR Titan XPQ1B Technical Specifications:
| Feature | Details |
|---|---|
| Certification | Class I Division 2, Groups A-D; Class II Division 2, Groups F, G |
| Wattage | 100W |
| Lumen Output | Up to 17,261 Lm (150W Model) |
| Efficacy | Up to 125.5 Lm/W |
| Voltage | 347-480VAC |
| CCT | 5000K |
| Beam Angles | 25°, 60°, 120° |
| Housing | Die-cast, copper-free aluminum with polyester powder coat +1 |
| Operating Temp | -40°F (-40°C) to 122°F (50°C) |
| Ingress Protection | IP66, NEMA 3, NEMA 4X +1 |
| Weight | 33.1 lbs |
| Lifespan | L70 > 50,000 Hours |
Certifications & Compliance:
🔗 UL844 – Hazardous Location compliance for C1D2 and C2D2
🔗 IECEx – International certification: Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db
🔗 UL 1598A Marine – Suitable for saltwater spray and marine environments
🔗 IP66 Rated – Full protection against dust and powerful water jets
🔗 Download Datasheet
Applications of NICOR Titan XPQ1B:
🔹 Oil & Gas (Refineries and Drilling Rigs)
🔹 Chemical Plants
🔹 Mining & Grain Elevators
🔹 Marine and Coastal Facilities
🔹 Manufacturing & Heavy Industrial Labs
What’s in the Box?
📦 1x Titan XPQ1B LED Luminaire
📦 1x Integrated Trunnion Bracket
📦 1x 2′ Prewired Flying Leads
📦 1x 10kA Surge Protector (Internal)
📦 1x Documentation and Warranty Guide
Ordering & Shipping Details
📦 Lead Time: 1 – 2 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 3′ Heavy Duty DS Safety Cable (XP1DSCABLE-3)

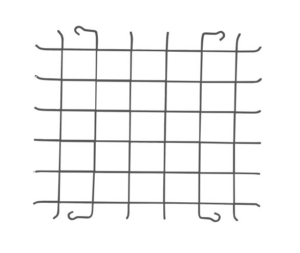

🔗 Titan Wire Guard (XPQ1WG)
🔗 Diffused Lens Option (Consult Factory)
FAQs:
Is the Titan XPQ1B suitable for offshore use?
Yes, it is UL1598A Marine rated and features a copper-free aluminum housing with stainless steel hardware, making it ideal for saltwater environments.
What is the standard warranty for this fixture?
The luminaire comes with a 5-year limited system warranty, though it does not cover failure due to overvoltage events.
Can I mount this on a pendant?
Yes, the fixture includes an integrated 3/4″ NPT threaded hub specifically for pendant mounting.
Are all models DLC Premium certified?
DLC Premium certification applies specifically to the 5000K models.
