Description

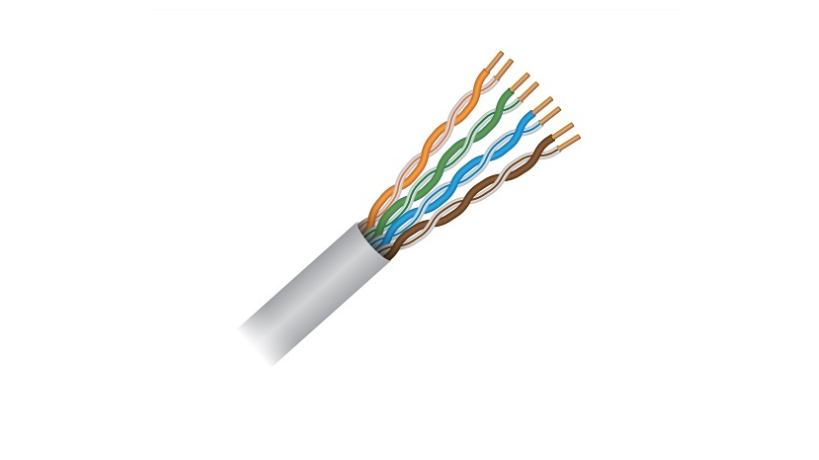

Paige GameChanger® 22 AWG UTP Riser Cable 258310311
The Paige GameChanger® cable is a specialized networking solution designed to overcome the 100-meter distance limitation of standard Category 6 cables. Engineered for infrastructure in commercial and industrial environments, including oil and gas office facilities and non-hazardous processing areas, this cable ensures high-speed data delivery over extended runs without the need for intermediate repeaters.
Built with heavy-duty 22 AWG solid bare copper conductors, the GameChanger® provides superior electrical performance and thermal management for high-wattage applications. It is fully optimized for field deployment, offering a simplified “one-pull” installation that reduces points of failure and labor costs compared to traditional fiber or boosted copper setups.
Key Features:
✅ UL 444 & UL 444-LP (0.6A) Certified
✅ Certified to TIA-568.2-E CAT 6 Performance
✅ UL 1666 (CMR) Riser Flame Rating
✅ Supports PoE Classes 1-8 (Up to 100W)
✅ Solid 22 AWG Bare Copper Conductors
✅ High-performance Polyolefin (PO) Insulation
✅ Durable FR-PVC Outer Jacket
✅ 67% Nominal Velocity of Propagation (NVP)
✅ Available in Blue, Gray, and Yellow/White
Paige GameChanger® Technical Specifications:
| Feature | Details |
|---|---|
| Manufacturer | Paige Datacom Solutions |
| Product Model | GameChanger® Cable (2583103--) |
| Conductor | 22 AWG Solid Bare Copper |
| Pair Count | 4 Twisted Pairs (UTP) +1 |
| Flame Rating | UL 1666 (CMR) Riser Rated |
| Performance | Certified to TIA-568.2-E CAT 6 |
| PoE Support | Classes 1-8 (Up to 100W) |
| Insulation | Polyolefin (PO) |
| Jacket Material | FR-PVC |
| Voltage Rating | 300V (Maximum) |
| Temperature Rating | 0°C to +75°C (Installation & Operation) |
| Outer Diameter | 0.236" nominal |
| Weight | 29 lbs per 1,000' box |
| Regional Availability | United States, Latin America, Middle East |
Certifications & Compliance:
🔗 UL 1666 (CMR) – Flame test for riser-rated vertical installations
🔗 TIA-568.2-E CAT 6 – Performance standards for telecommunications cabling
🔗 RoHS-2 – Compliance with environmental hazardous substance restrictions
🔗 UL 444-LP (0.6A) – Limited Power certification for heat dissipation in cable bundles
🔗 Download Datasheet
Applications of Paige GameChanger®:
🔹 Oil & Gas Office Infrastructure
🔹 Industrial Control Rooms
🔹 Extended-Distance Security Cameras
🔹 Remote Wireless Access Points
🔹 Manufacturing Facilities
What’s in the Box?
📦 1x 1,000′ (305m) Paige GameChanger® Cable
📦 1x REELEX Pull Box for Tangle-Free Installation
Ordering & Shipping Details
📦 Lead Time: 3-5 business days
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 GameChanger® Shielded (F/UTP) for High-EMI Environments
🔗 GameChanger® OSP (Outside Plant) for Direct Burial
🔗 RJ45 Connectors for 22 AWG Conductors
FAQs:
What is the maximum distance for the GameChanger cable?
While standard Cat 6 is limited to 100m, GameChanger can deliver 1Gbps up to 200m and 10Mbps up to 259m.
Does this cable support 100W PoE?
Yes, it is certified for PoE Classes 1-8, supporting up to 100W of power delivery.
Can this be used in hazardous areas?
This cable is CMR-rated for riser use but is not intrinsically safe or explosion-proof on its own; it should be used in non-hazardous areas or within approved conduit systems.
Is the jacket sunlight-resistant?
The standard CMR jacket is designed for indoor riser use; for outdoor or UV exposure, the OSP version is recommended.
