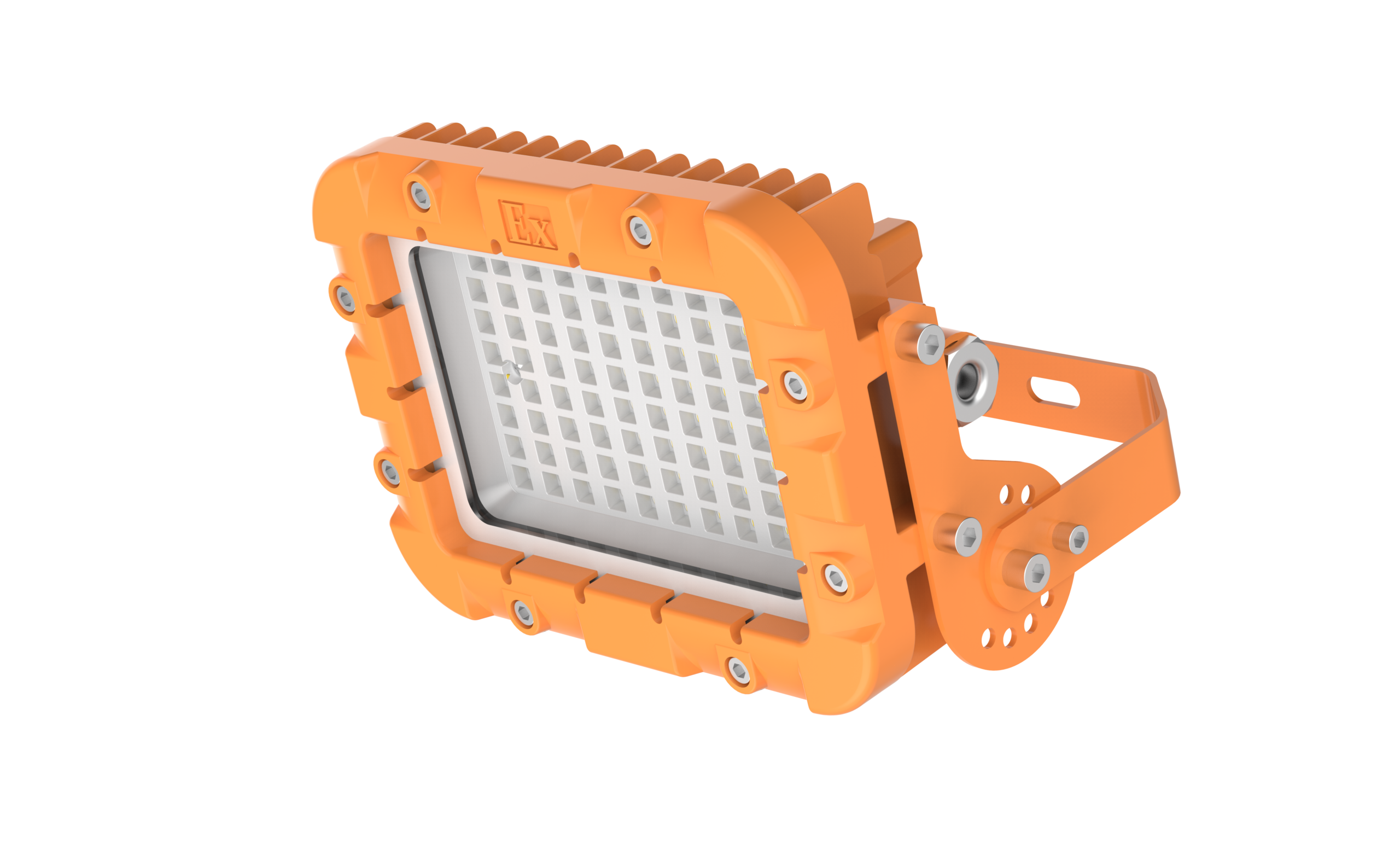

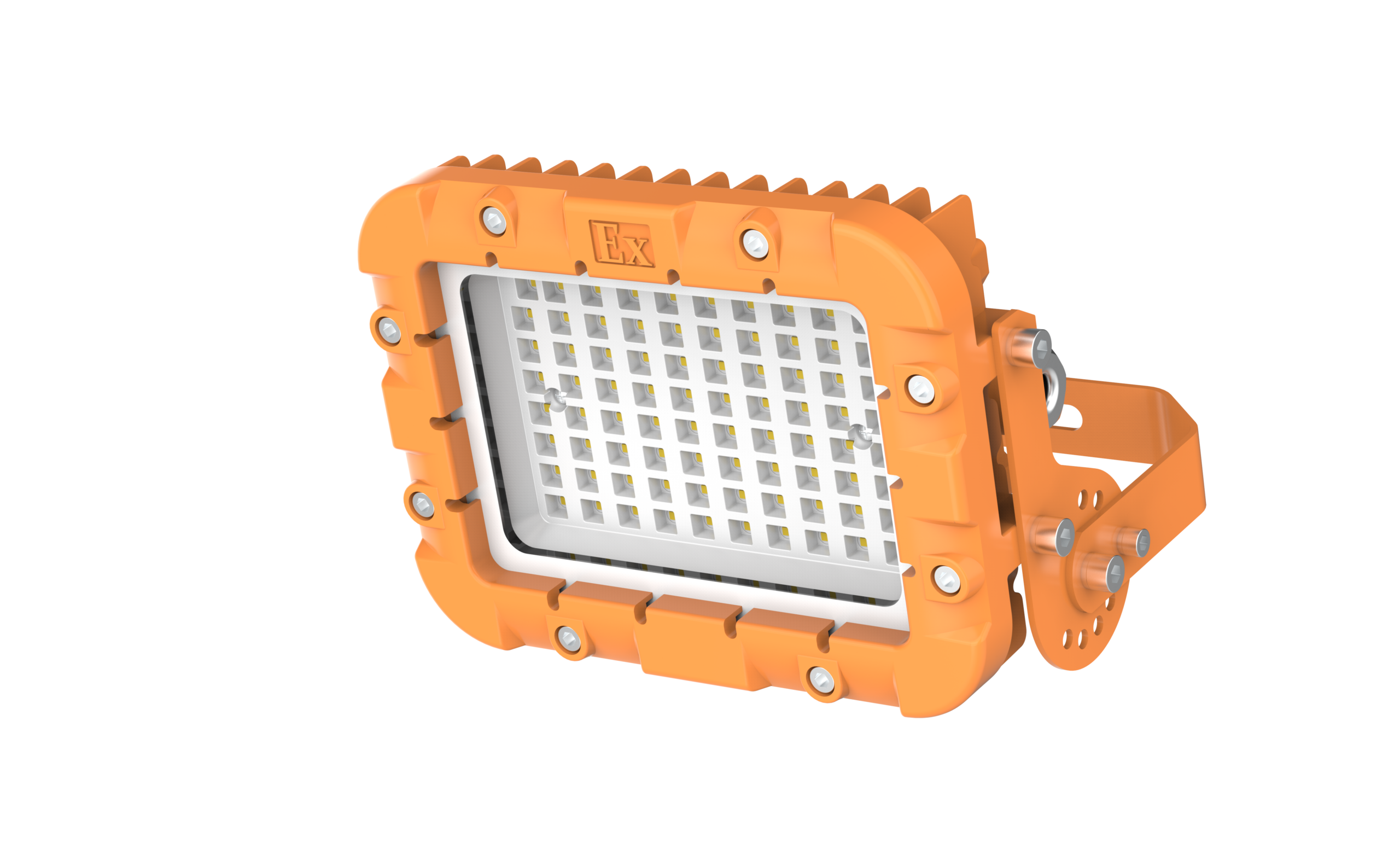

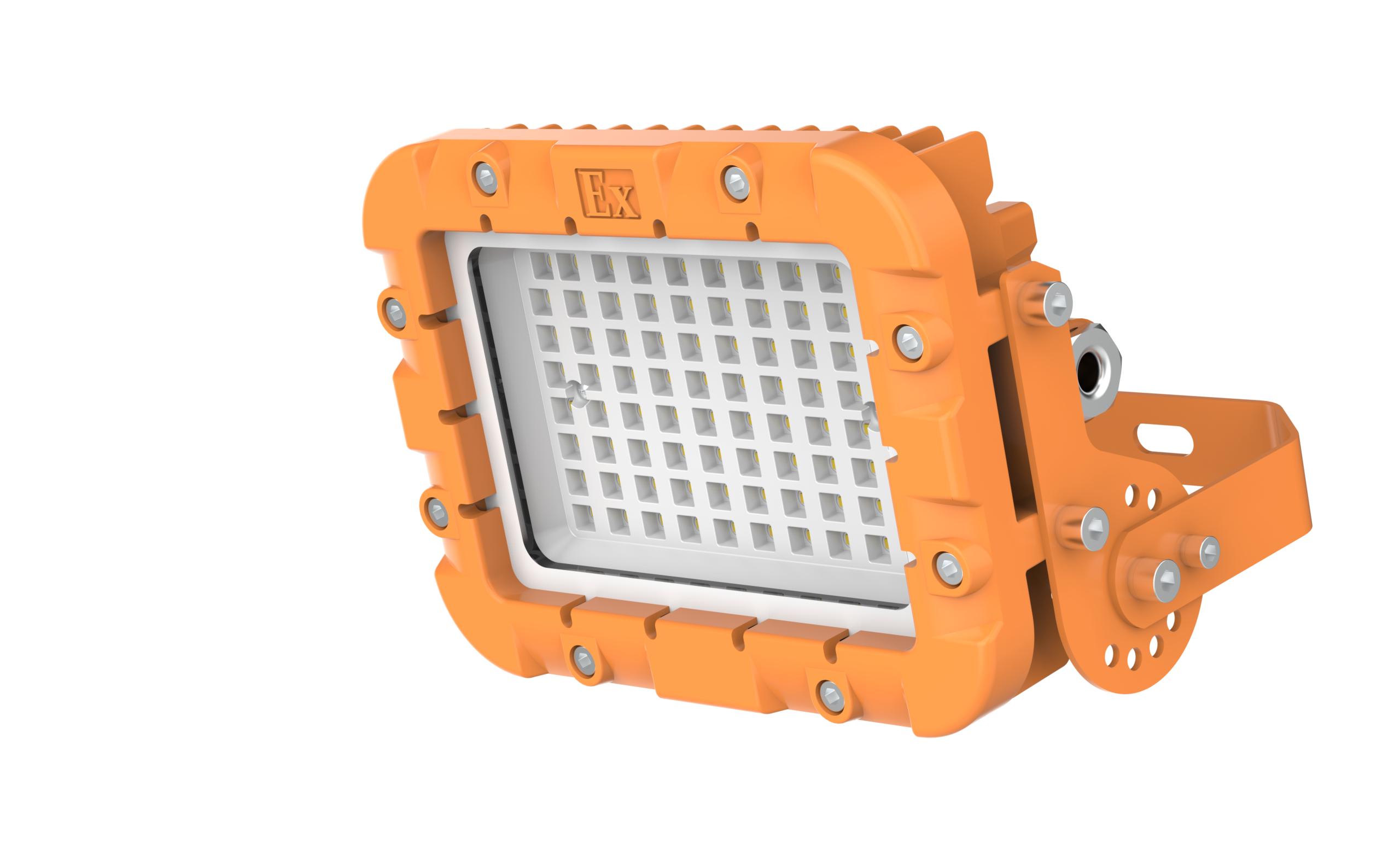

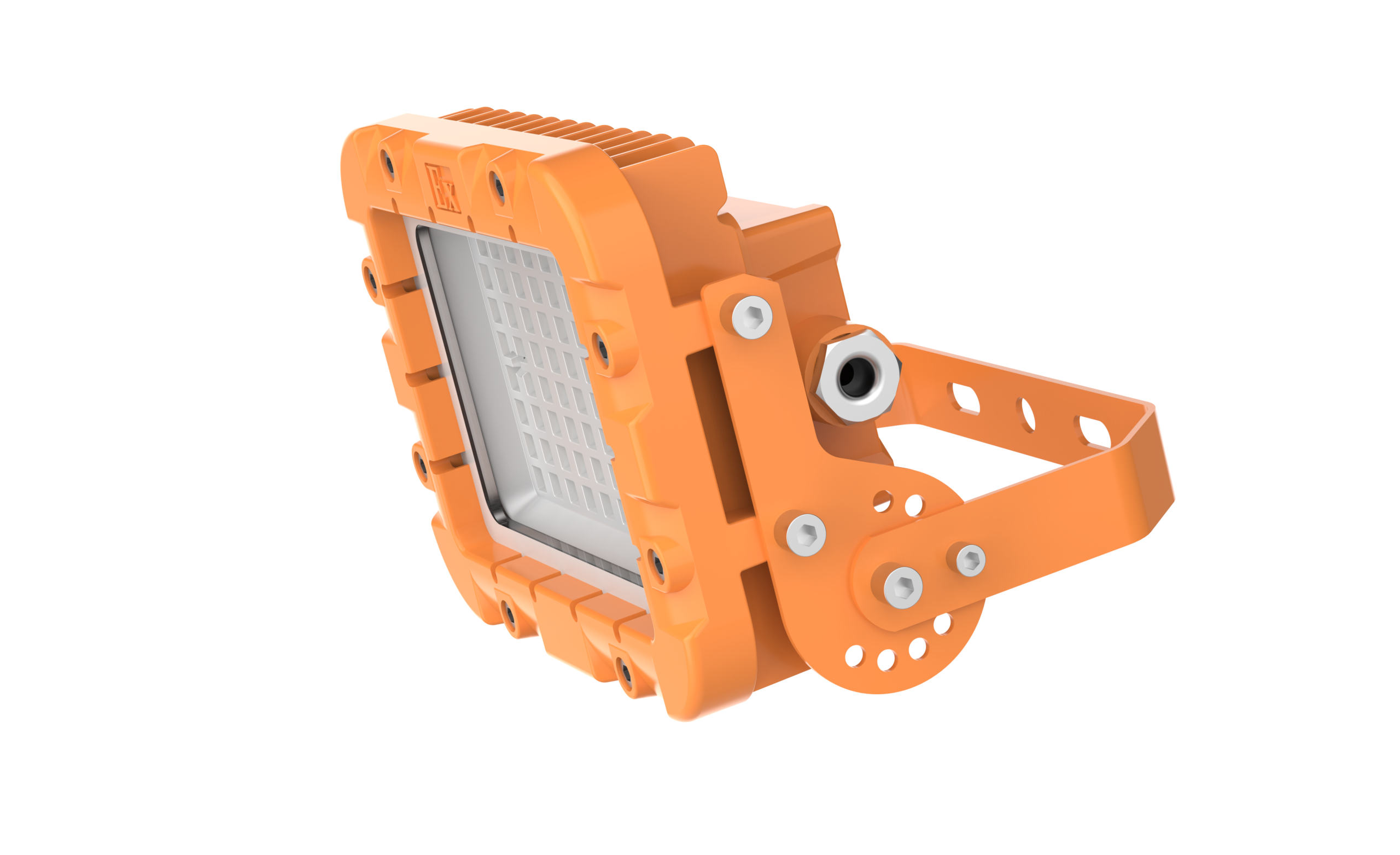

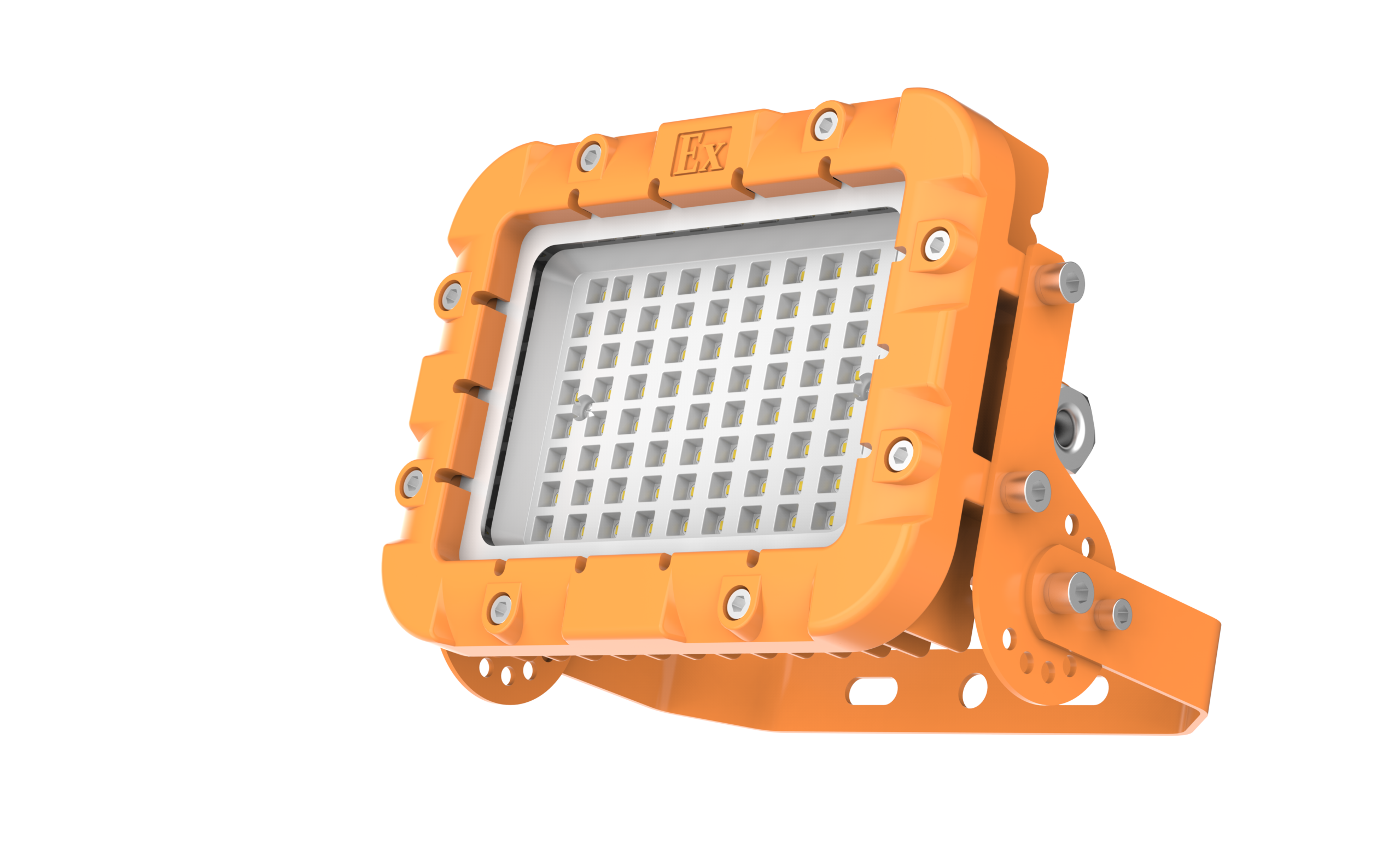

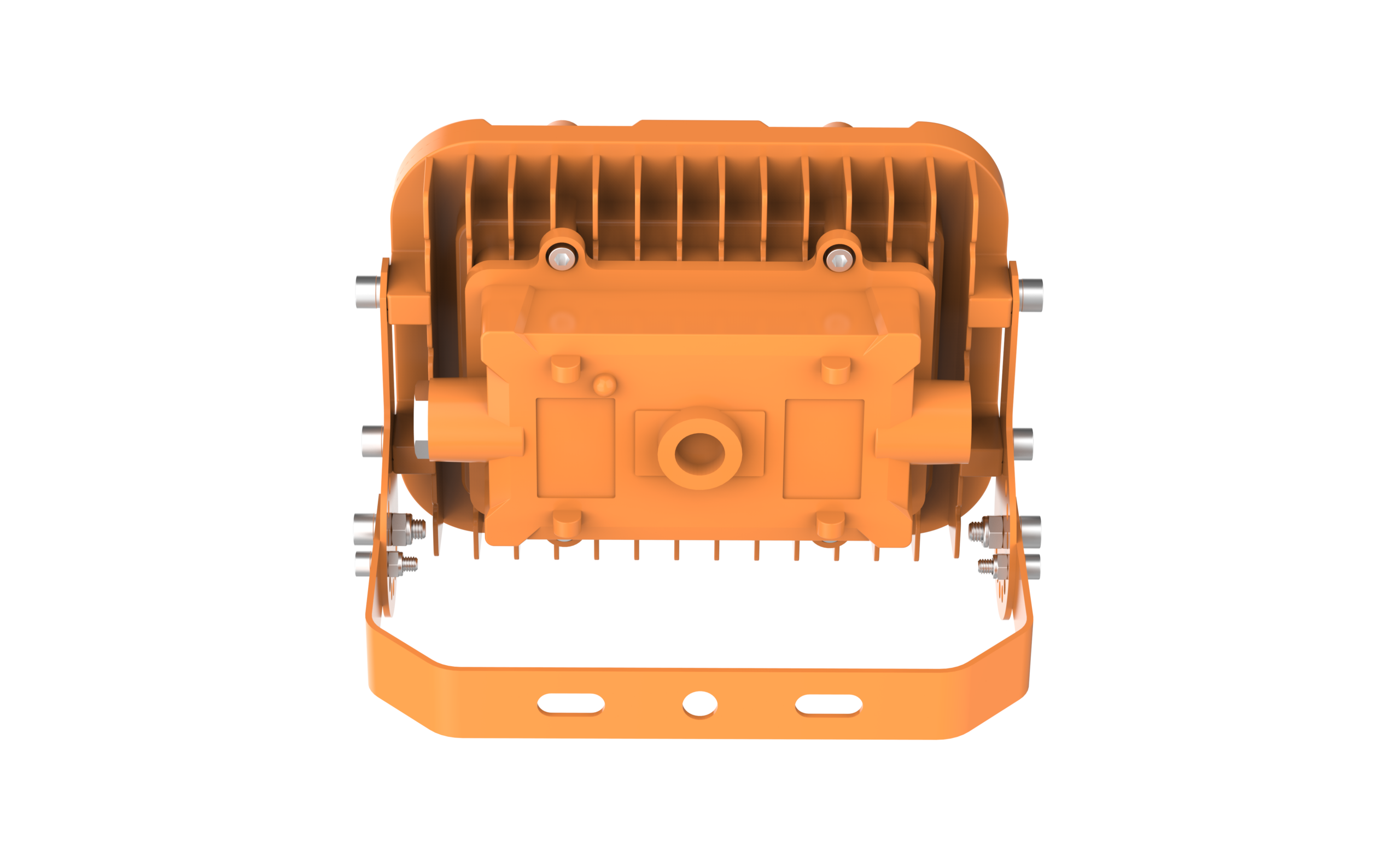

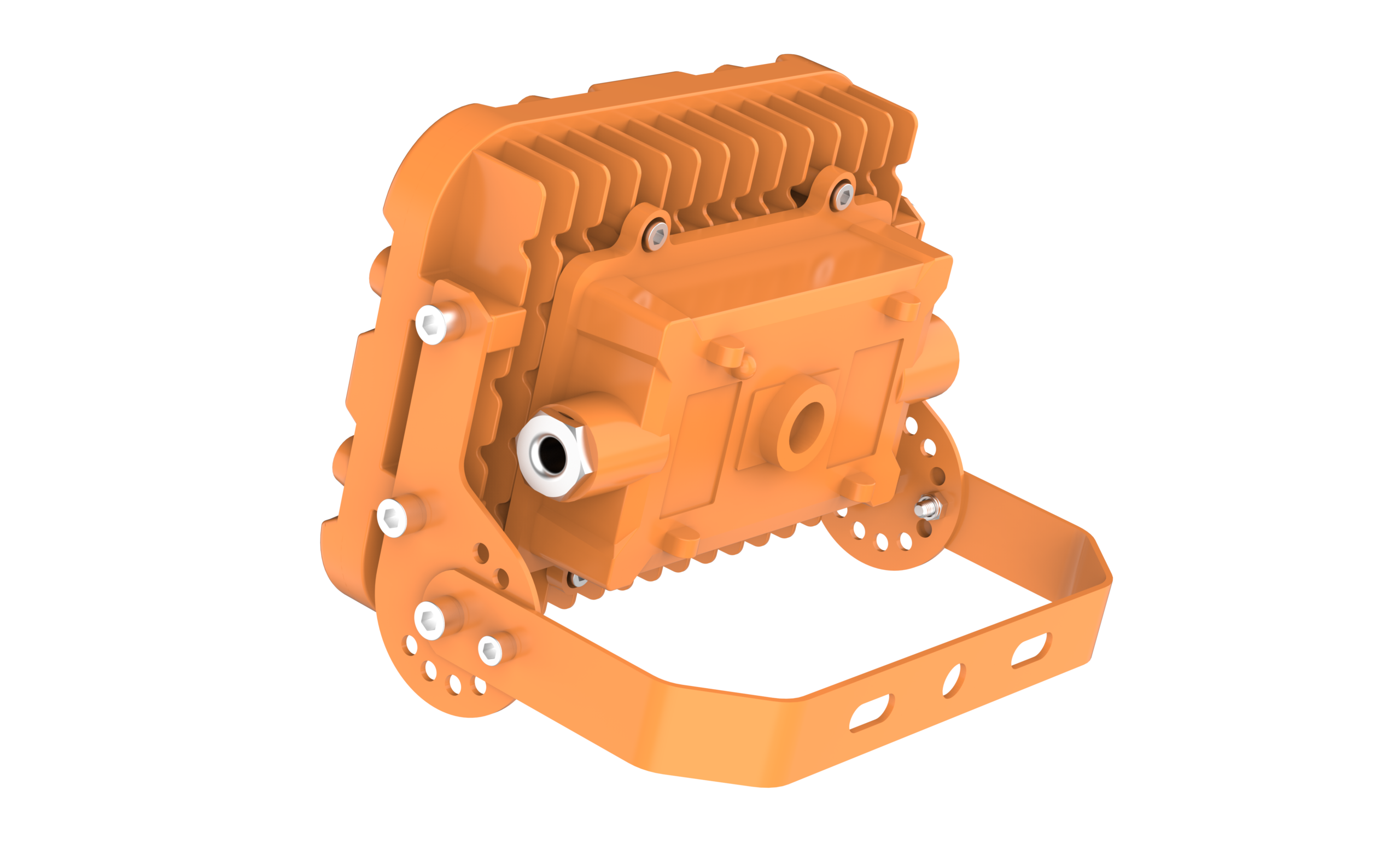

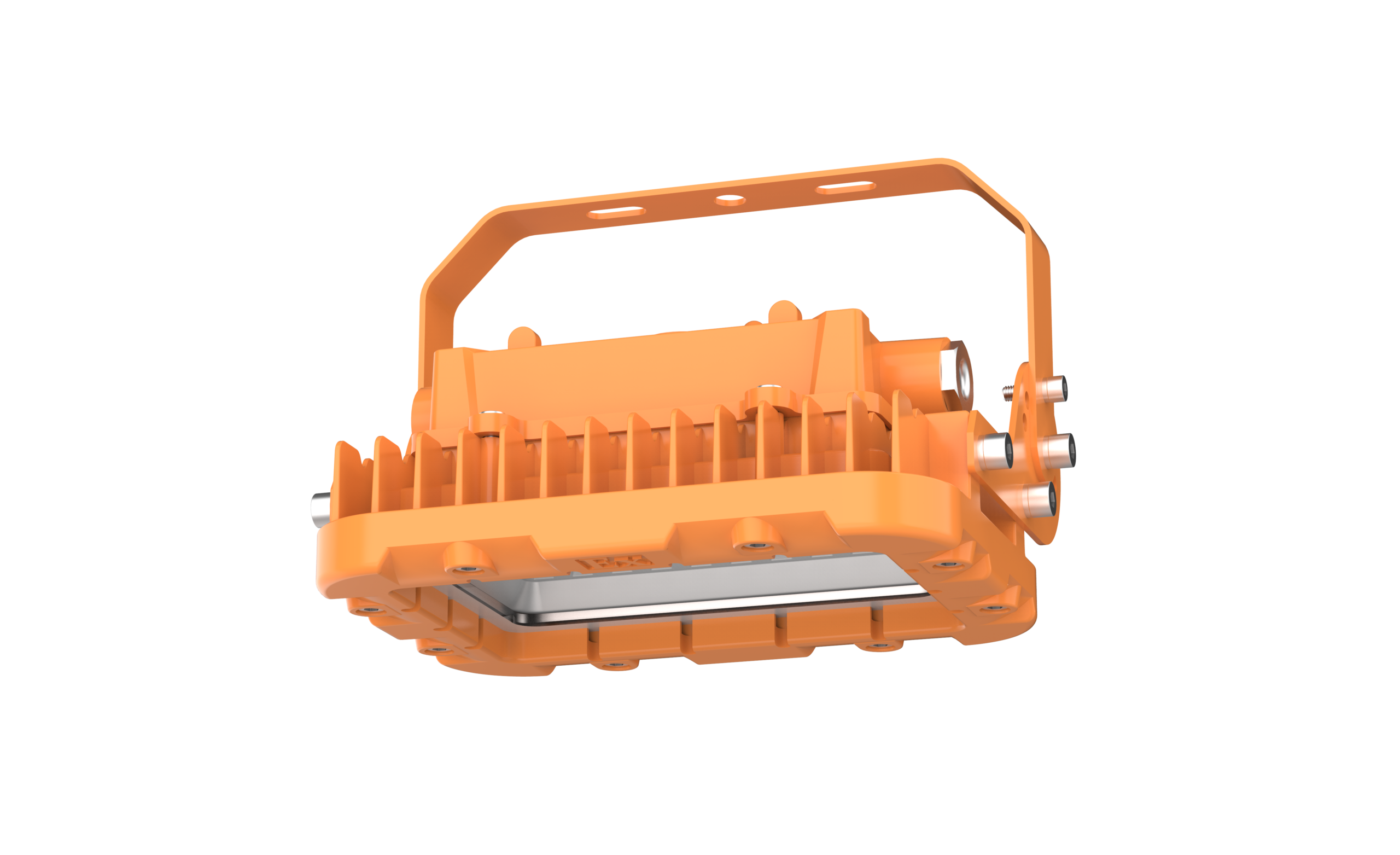

The ROKEE Zone 2/22 G22 is a high-efficiency LED explosion-proof light engineered for ATEX Zone 2/22 hazardous areas, including refineries and chemical plants. Delivering up to 140lm/W and featuring an IP66 rating, this rugged fixture provides reliable, wide-angle illumination in high-humidity and dusty environments.
| Country of Origin | China (CN) |
| ATEX Rating | Ex db IIC T6 or T5 Gb, Zone 2/22 |
The ROKEE Zone 2/22 G22 is a professional-grade explosion-proof LED lighting solution designed for hazardous environments where safety and durability are paramount. Certified for use in Zone 2/22 locations, this fixture is an essential asset for oil refineries, fuel depots, chemical processing plants, and marine vessels requiring high-performance illumination in volatile atmospheres.
Built for extreme field conditions, the EP-02-G22 features a robust housing that operates reliably in temperatures ranging from -40°C to +50°C. With a luminous efficiency of 140lm/W and a wide 115-degree beam angle, it ensures maximum visibility while maintaining energy efficiency across various power options from 30W up to 800W.
✅ ATEX Zone 2 & Zone 22
✅ IP66 Water-proof and Dust-proof rating
✅ High Efficiency: 140lm/W utilizing SMD 3030 LEDs
✅ Wide Input Voltage: AC120-277V (50/60Hz)
✅ Reliable Sosen Driver and Yellow Housing Color
✅ Long Lifespan: Up to 50,000 hours
✅ Multiple CCT Options: 3000K, 4000K, 5000K, 5700K
✅ Operating Temp: -40°C to +50°C
🔹 30W - 80W Models: Compact size (3.5kg / 7.7 lbs) for localized task lighting
🔹 100W - 200W Models: Mid-range power for general area illumination (7.3kg / 16.1 lbs)
🔹 300W - 400W Models: Heavy-duty output for high-mast or large facility use (20.0 kg / 44.1 lbs)
🔹 600W - 800W Models: Maximum lumen output for extreme industrial requirements (36.0 kg / 79.4 lbs)
| Feature | Details |
|---|---|
| Model | ROKEE EP-02-G22 Series |
| Power Range | 30W to 800W |
| Luminous Efficiency | 140lm/W |
| Input Voltage | AC120-277V (50/60Hz) |
| LED Type | SMD 3030 |
| Color Rendering Index (CRI) | >80 |
| IP Rating | IP66 (Water-proof) |
| Operating Temp | -40°C to +50°C |
| Beam Angle | 115° |
| Certifications | Zone 2, Zone 22 |
| Housing Color | Yellow |
| Lifespan | 50,000 Hours |
🔗ATEX Certificate – Ex db IIC T6 or T5 Gb
🔗 ROKEE Explosion Proof Lighting Catalog EP-02-G21-G25
🔗 Download Datasheet
🔹 Oil & Gas (Refineries & Fuel Depots)
🔹 Chemical Plants
🔹 Marine Vessels
🔹 Food Processing & Wineries
🔹 Manufacturing (High humidity/dusty places)
📦 1x ROKEE EP-02-G22 LED Explosion-proof Light
📦 1x Sosen Driver (Integrated)
📦 1x Mounting Bracket
📦 1x Installation Manual
📦 Lead Time: 2 - 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗Rokee EP-02-G2 Explosion | Flame Proof Lighting
🔗 ROKEE Zone 2/22 G21 LED Light
🔗 Rokee EP-02-G5 Explosion | Flame Proof Lighting
What is the lifespan of this fixture?
The EP-02-G22 is rated for 50,000 hours of operation.
Can this light be used in extreme cold?
Yes, it is designed to operate in temperatures as low as -40°C.
What color temperatures are available?
You can choose between 3000K, 4000K, 5000K, or 5700K.
What is the standard beam angle?
The fixture provides a wide average beam angle of 115 degrees.
