Explosion Proof Work Light
Shenzhen Hazardous Location CES-EX-LN-02-40-60 LED Lights
$259.20In Stock
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas

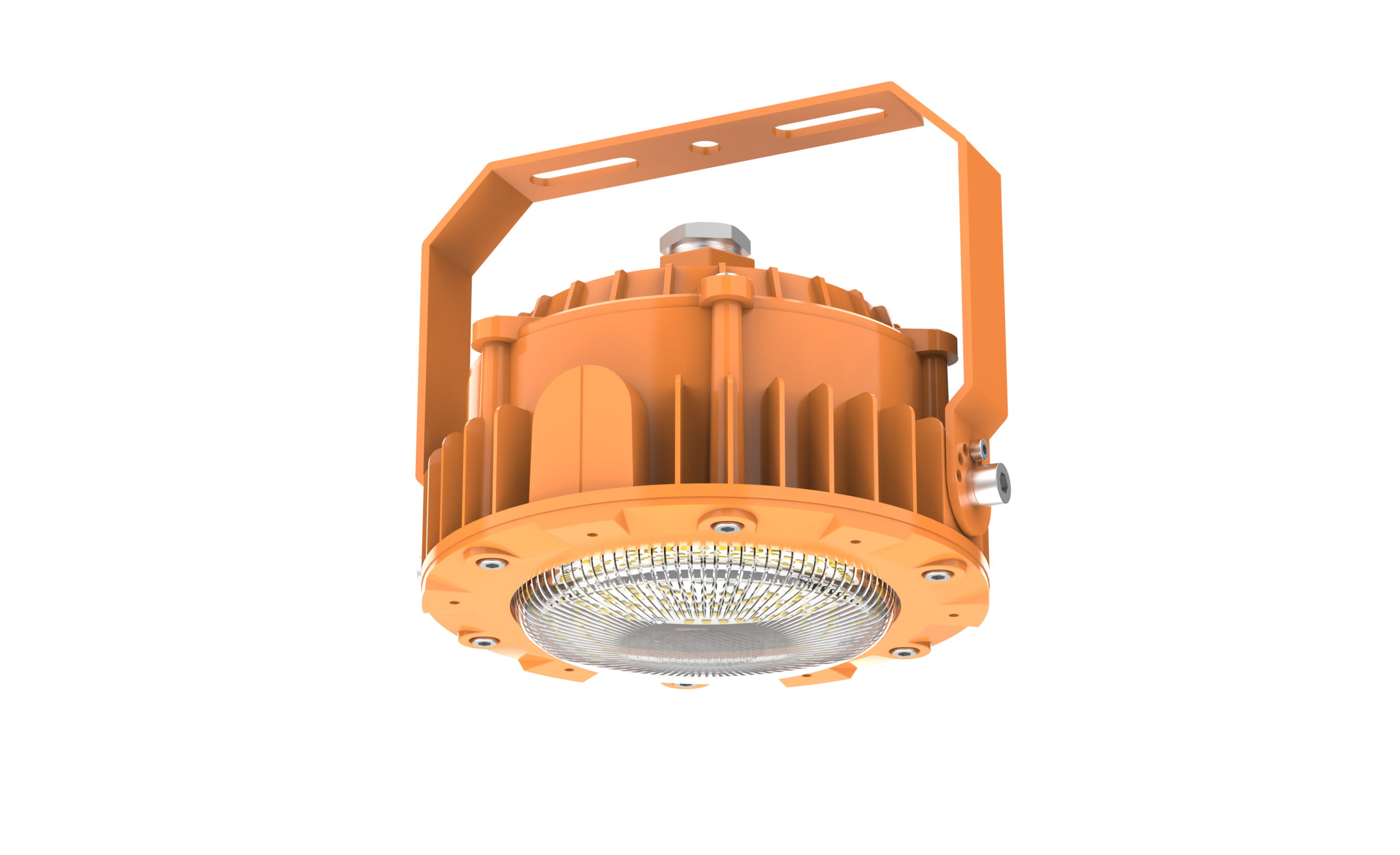

The ROKEE Zone 2/22 G23 is a high-efficiency, IP66-rated LED explosion-proof light designed for ATEX Zone 2/22 hazardous environments. Engineered for the oil and gas industry, it delivers up to 130lm/W and features a rugged, corrosion-resistant housing for reliable illumination in refineries and chemical plants.
| Country of Origin | China (CN) |
| ATEX Safety / Zone | Ex db IIC T6 or T5 Gb and Zone 2/22 |
The ROKEE EP-02-G23 is a professional-grade LED explosion-proof luminaire designed to provide safe, high-intensity illumination in hazardous locations. Built to withstand the rigors of industrial environments, this fixture is essential for maintaining visibility and safety in areas where flammable vapors, gases, or combustible dusts may be present.
Equipped with high-performance Lumileds LEDs, the EP-02-G23 offers an impressive luminous efficacy of up to 130lm/W, significantly reducing energy consumption while providing a wide 120° beam angle. Its robust construction features an IP66 waterproof rating and a wide operating temperature range from -40°C to +50°C, ensuring reliable performance in extreme humidity and dusty conditions common in offshore and refinery applications.
✅ ATEX Zone 2/22
✅ High-efficacy Lumileds LEDs (125-130lm/W)
✅ IP66 Water-proof and Dust-proof rating
✅ Wide input voltage: AC120-277V (50/60Hz)
✅ Multiple CCT Options: 3000K, 4000K, 5000K, 5700K
✅ Durable Sosen Driver for stable power management
✅ Corrosion-resistant housing with 50,000-hour rated lifespan
✅ Ultra-wide 120° beam angle for maximum area coverage
✅ Compact and easy installation with adjustable bracket
🔹 Standard Series (Flat Lens): 30W to 120W models (EPxxW-02-G23)
🔹 High-Output: 80W, 100W, and 120W configurations for high-bay mounting
🔹 Housing Color: Standard Yellow for high visibility
| Feature | Details |
|---|---|
| Model | ROKEE EP-02-G23 Series |
| Wattage Options | 30W, 50W, 60W, 80W, 100W, 120W |
| Luminous Efficacy | 125lm/W to 130lm/W |
| Certifications | ATEX Zone 2/22 |
| Input Voltage | AC120-277V (50/60Hz) |
| Ingress Protection | IP66 (Waterproof & Dustproof) |
| Beam Angle | 120° |
| CRI | >80 |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Operating Temp | -40°C to +50°C |
| Weight | 3.0kg (6.6lbs) to 5.2kg (11.5lbs) depending on model |
| Lifespan | 50,000 Hours |
| Housing Color | Yellow |
🔗 ATEX Certificate – Protection for explosive gas and dust atmospheres
🔗 IP66 Rating – Protection against powerful water jets and heavy dust
🔗 Download Datasheet
🔹 Oil & Gas Refineries
🔹 Fuel Depots and Marine Vessels
🔹 Chemical Production Processing
🔹 Food Processing & Wineries
🔹 High Humidity & Dusty Manufacturing Sites
📦 1x ROKEE EP-02-G23 LED Explosion-proof Light
📦 1x Integrated Sosen Driver
📦 1x Heavy-duty Mounting Bracket
📦 1x Wiring Kit (L, N, GND)
📦 1x Installation Manual
📦 Lead Time: 2 - 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗 ROKEE Zone 2/22 G21 LED Light
🔗 Rokee EP-02-G2 Explosion | Flame Proof Lighting
🔗 Rokee EP-02-G5 Explosion | Flame Proof Lighting
Can this light be used in marine environments?
Yes, the fixture is rated for marine vessels and high-humidity areas due to its IP66 rating and corrosion-resistant design.
What is the lifespan of the LEDs?
The LEDs are rated for 50,000 hours of operation, ensuring long-term maintenance-free use in hard-to-reach industrial areas.
What voltages does this light support?
The light supports a wide range from AC120-277V at 50/60Hz, making it compatible with most industrial power grids.
