Explosion Proof Air Conditioners

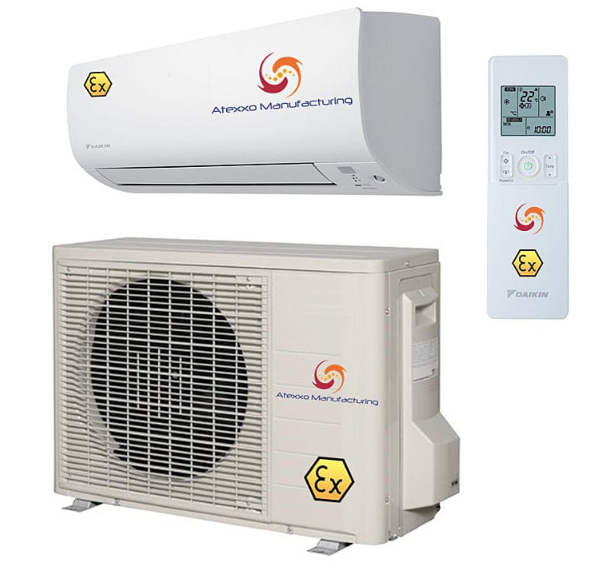

ATEXXO Explosion Proof Air Conditioner – ATEX Zone 2 - Split Units - 24,000 BTU / Hr
$16,515.06In Stock
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas
Safety specifications not available for this product
The XP Climate EP-MS12HP-2-2-X-(IE)-216-1Z Explosion Proof Mini Split Heat Pump is a 12,000 BTU hazardous location HVAC system engineered for Class II Division 2 Groups E, F, and G environments. Designed for industrial facilities requiring reliable year-round climate control, it combines high-efficiency inverter technology with explosion-proof protection for both indoor and outdoor units.
| Country of Origin | United States (US) |
The XP Climate EP-MS12HP-2-2-X-(IE)-216-1Z Explosion Proof Mini Split Heat Pump is a high-performance HVAC solution specifically engineered for hazardous industrial environments requiring certified heating and cooling. Designed for Class II Division 2 Groups E, F, and G classified locations, this single-zone mini split system provides safe, reliable climate control for facilities handling combustible dusts including metal, carbonaceous, and grain dust.
Featuring advanced DC inverter technology, the system delivers 12,000 BTU of cooling and heating while maximizing energy efficiency and maintaining precise temperature control. The explosion-proof indoor and outdoor units include overload protection, low ambient heating and cooling capabilities, automatic defrost, WiFi functionality, and a wireless LCD remote controller. Built with copper tube/aluminum fin coils and corrosion-resistant blue fin coating, the system is engineered for long service life in demanding industrial environments.
✅ Class II Division 2 Groups E, F & G hazardous location design
✅ 12,000 BTU cooling and 12,000 BTU heating capacity
✅ High-efficiency DC inverter heat pump technology (19.0 SEER2)
✅ 208–230VAC, Single Phase, 60Hz operation
✅ Explosion-proof indoor and outdoor motors with overload protection
✅ Wireless LCD remote controller included
✅ WiFi connectivity and self-diagnostics
✅ Low ambient cooling and heating operation
✅ Automatic defrost and intelligent preheating
✅ Copper tube / aluminum fin heat exchangers with blue anti-corrosion coating
✅ Factory-installed A2L refrigerant leak detection sensor
✅ Factory-issued Certificate of Conformance to NEC Codes
🔹 Standard System: Explosion-proof indoor unit + explosion-proof outdoor condenser + wireless LCD remote
🔹 Optional Line Set: Available separately
🔹 Optional Condenser Wall Bracket: Available separately
🔹 Optional Surge Protector: Available separately
| Feature | Details |
|---|---|
| Manufacturer | XP Climate Control |
| Model | EP-MS12HP-2-2-X-(IE)-216-1Z |
| Product Type | Explosion Proof Mini Split Heat Pump |
| Configuration | Single Zone |
| Cooling Capacity | 12,000 BTU/hr |
| Heating Capacity | 12,000 BTU/hr |
| Certification | Class II Division 1 Groups E, F & G |
| Power Supply | 208–230 VAC |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Technology | DC Inverter |
| Refrigerant | R-32 |
| SEER2 | 19.0 |
| EER2 | 9.75 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Indoor Airflow | 182–424 CFM |
| Indoor Sound Level | 27–47 dB(A) |
| Outdoor Sound Level | 52 dB(A) |
| Indoor Dimensions | 40 × 10.84 × 7.88 in |
| Outdoor Dimensions | 28.81 × 31 × 16.42 in |
| Indoor Net Weight | 31.8 lbs |
| Outdoor Net Weight | 134.2 lbs |
| Refrigerant Charge | 17.6 oz R-32 |
| Line Set Size | 1/4" × 3/8" |
| Pre-Charged Line Length | 25 ft |
| Maximum Line Length | 66 ft |
| Maximum Elevation | 40 ft |
| WiFi | Yes |
| Remote Controller | Wireless LCD Included |
| Self-Diagnostics | Yes |
| Automatic Defrost | Yes |
| Low Ambient Cooling | Yes |
| Intelligent Preheating | Yes |
| Compressor Protection | Electric Heater |
| Condenser Protection | Blue Fin Anti-Corrosion Coating |
🔗 Class II Division 2 Groups E, F & G – Suitable for hazardous dust locations
🔗 NEC Certificate of Conformance – Factory tested for compliance with National Electrical Code requirements
🔗 UL & CSA Approved Components – Major electrical components approved for industrial applications
🔗 Blue Fin Corrosion Protection – 500-hour salt spray tested outdoor coil coating
🔗 Download Datasheet
🔹 Grain Processing Facilities
🔹 Food Processing Plants
🔹 Chemical Plants
🔹 Mining Operations
🔹 Manufacturing Facilities
🔹 Industrial Warehouses
🔹 Dust Hazard Processing Areas
📦 1× Explosion Proof Indoor Evaporator Unit
📦 1× Explosion Proof Outdoor Condenser Unit
📦 1× Wireless LCD Remote Controller
📦 1× Installation Hardware
📦 1× Owner's Manual
📦 1× Maintenance Manual
📦 1× Certificate of Conformance
📦 Lead Time: Approximately 4–6 Weeks
📍 Shipping Terms: Worldwide Shipping Available / Expedited Options Available
💳 Payment Options: Credit Card, PayPal, ACH, Net 30 (Approved Accounts)
What hazardous locations is this system certified for?
This system is designed for Class II Division 2 Groups E, F, and G hazardous locations where combustible dusts are present.
Does the system provide both heating and cooling?
Yes. It is a heat pump capable of delivering both 12,000 BTU cooling and 12,000 BTU heating.
Is the remote controller included?
Yes. A wireless LCD remote controller is supplied with every system.
Can the unit operate in low outdoor temperatures?
Yes. The inverter system supports low ambient cooling and heating and includes automatic defrost and intelligent preheating functions.
