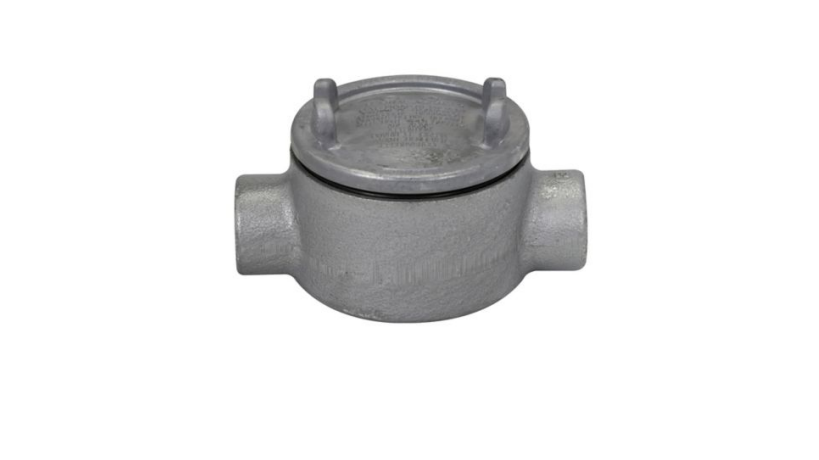

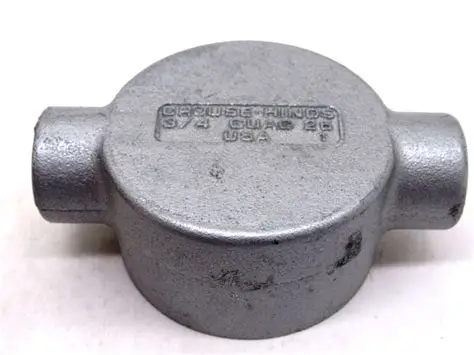

The Eaton Crouse-Hinds GUAC26 is a rugged, Feraloy iron alloy conduit outlet box designed for Class I, Division 1 hazardous locations in oil and gas environments. Featuring a 3/4″ trade size and a C-shape configuration, it provides a secure, explosion-proof solution for protecting wiring and facilitating easy access in demanding industrial areas.
| Country of Origin | United States (US) |
The Eaton Crouse-Hinds GUAC26 is a heavy-duty Condulet GUA series conduit outlet box engineered specifically for hazardous and classified locations. Built to withstand the rigors of oil and gas, chemical, and industrial processing facilities, this C-shape junction box protects internal wiring from external contaminants and contains internal explosions to prevent ignition of the surrounding atmosphere.
Constructed from high-strength Feraloy iron alloy, the GUAC26 features a 3/4-inch trade size and a wide 3-inch cover opening for easy wire pulling and maintenance. Its robust design is NEMA 4, 7, and 9 rated, ensuring superior protection against moisture, dust, and explosive environments while providing a reliable access point for conduit systems.
✅ NEC/CEC Certified for Class 1, Div 1 & 2; Class 2, Div 1 & 2; and Class 3
✅ Durable Feraloy iron alloy body and cover material
✅ NEMA 3, 4, 7, and 9 ratings for environmental protection
✅ 3/4" trade size with a C-shape configuration for inline conduit runs
✅ 3" diameter cover opening for easy access to conductors
✅ Compact dimensions: 5.25" L x 3.5" H x 2" W
✅ Explosion-proof and dust-ignition-proof design
✅ Integrated lugs on cover for easy tightening and removal
✅ Weighs 3.25 lbs for a solid, vibration-resistant installation
🔹 Standard Unit: Includes GUAC26 Box and Threaded Cover
| Feature | Details |
|---|---|
| Product Name | Eaton Crouse-Hinds Condulet GUA Box (GUAC26) |
| Catalog Number | GUAC26 |
| Trade Size | 3/4" |
| Cover Opening | 3" Diameter |
| Shape | C (Through) |
| Material | Feraloy Iron Alloy |
| Hazardous Rating | Class I, Div 1 & 2; Class II, Div 1 & 2; Class III |
| NEMA Rating | 3, 4, 7, 9 |
| Dimensions | 5.25 in (L) x 3.5 in (H) x 2 in (W) |
| Weight | 3.25 lb |
| UPC | 782274462301 |
🔗 Class 1, Div 1 & 2 (Groups C, D) – UL Certificate
🔗 Class 2, Div 1 & 2 (Groups E, F, G) – Dust-ignition-proof protection
🔗 NEMA 4/IP66 – Protection against water jets and dust
🔗 UL Listed – Explosion-proof Conduit Outlet Boxes
🔗 Download Datasheet
🔹 Oil & Gas Refineries
🔹 Chemical Processing Plants
🔹 Mining Operations
🔹 Pharmaceutical Manufacturing
🔹 Grain Elevators and Dusty Environments
📦 1x Eaton Crouse-Hinds GUAC26 Outlet Box
📦 1x Matching Threaded Cover
📦 1x Internal Sealing Gasket (where applicable)
📦 1x Installation Instruction Sheet
📦 Lead Time: 1 Week
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗 Eaton GUAX26 Cross-Shape Outlet Box
🔗 Eaton GUAT26 T-Shape Outlet Box
🔗 Explosion-Proof Conduit Seals
What is the "C" shape designation?
The C-shape indicates a "Through" or "Straight" configuration with two conduit hubs aligned on opposite sides of the box.
Can this be used outdoors?
Yes, with its NEMA 4 rating, the GUAC26 is protected against windblown dust and rain, splashing water, and hose-directed water.
What is Feraloy?
Feraloy is Eaton's proprietary iron alloy that provides high strength and corrosion resistance for industrial applications.
What size conduit does this accept?
This specific model is designed for 3/4-inch NPT threaded conduit.
