Intrinsically Safe ATEX Zone 0 Inspection Camera
The Intrinsically Safe ATEX Zone 0 Inspection Camera is built for critical real-time monitoring in environments with continuous flammable gas exposure. Designed for oil & gas, petrochemical, chemical, and offshore industries, it provides safe and reliable visual inspections in tanks, pipelines, reactors, and silos.

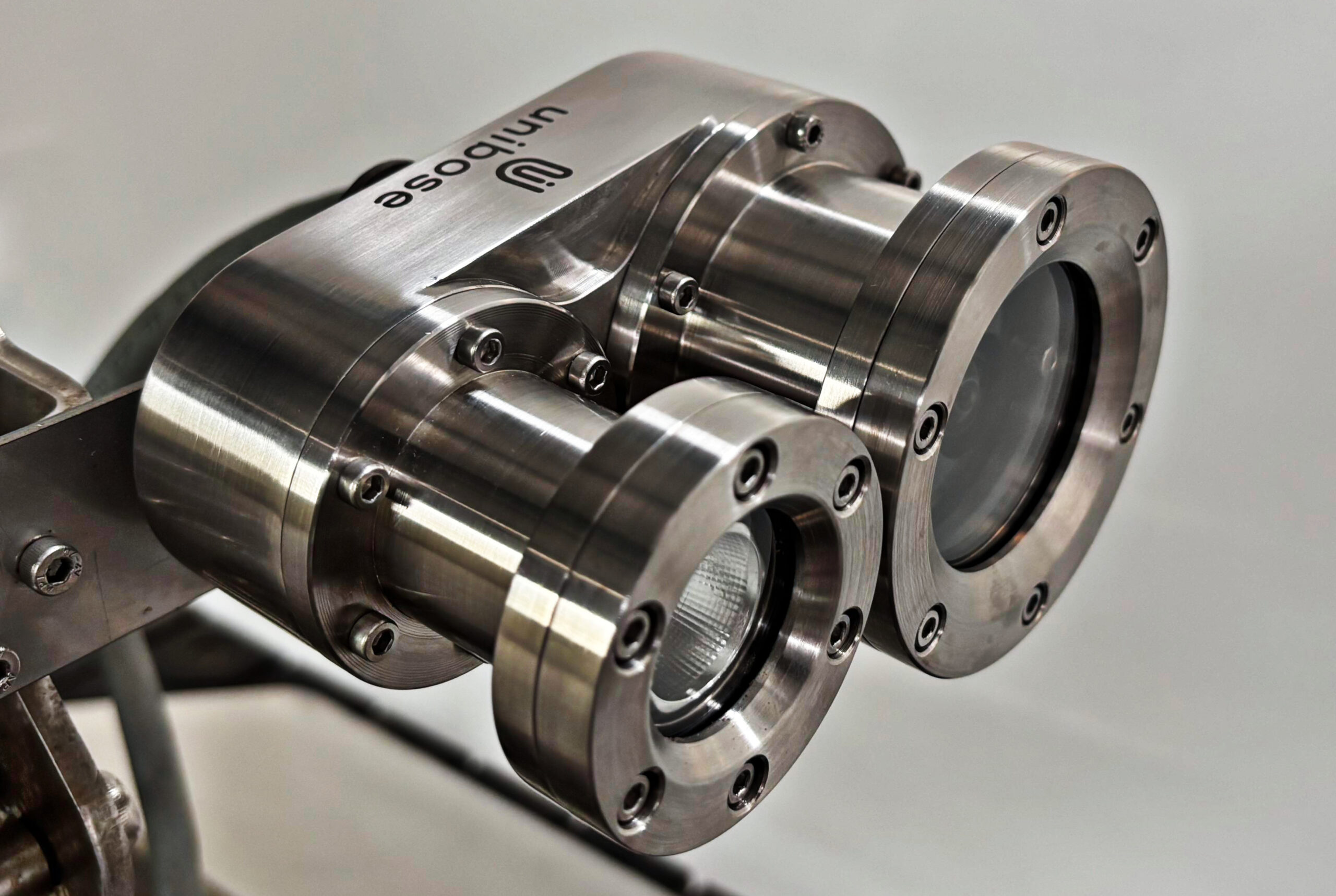

This rugged camera system features a PAL sensor (640 x 480), stainless steel SS316 housing, and integrated LED lighting isolated in a separate optical chamber to avoid image distortion from vapor or sludge. Operates from -20°C to +60°C, and is deployable up to 100 meters with optional sliprings and cable reels for mobile or fixed use in ATEX Zone 0 environments.
Key Features:
✅ ATEX Zone 0 Certified – II 1G Ex ia IIC T4 Ga
✅ VGA Resolution (640 x 480) with 50fps rolling shutter
✅ IP68 ingress protection – dust & submersion ready
✅ 62-lumen cool white integrated LED lighting
✅ 50m / 75m / 100m cable length options
✅ Stainless steel SS316 enclosure with toughened glass
✅ Compatible with slipring & cable reel (optional)
✅ HDMI output – Control/display unit available
✅ Certified for hydrogen-rich environments
📦 Package Options:
🔹 Camera with 50m Cable: Standard fixed applications
🔹 Camera with 75m Cable: Mid-range deployments
🔹 Camera with 100m Cable: Long-distance inspection
🔹 Optional: Slipring, cable reel, or integrated control unit
Intrinsically Safe ATEX Zone 0 Inspection Camera Technical Specifications:
| Feature | Details |
|---|---|
| Certification | ATEX Zone 0 (II 1G Ex ia IIC T4 Ga) |
| Resolution | 640 x 480 (PAL) |
| LED Lighting | 62 lumens (cool white) |
| Enclosure | SS316 Stainless Steel |
| Operating Temp | -20°C to +60°C |
| Ingress Protection | IP68 |
| Power Supply | 230V / 110V AC |
| Cable Options | 50m / 75m / 100m |
| Optional | Slipring, Cable Reel, Control Unit |
| Output Connector | 6-Pin Connector |
Certifications & Compliance:
🔗 ATEX Certification – II 1G Ex ia IIC T4 Ga (Zone 0)
🔗 Certificate No. TUV CY 24 ATEX 0207053 X
🔗 IP68 Ingress Protection – Dust/water immersion resistant
🔗 Operating Range: -20˚C to +60˚C
🔗 Download Datasheet
Applications of Intrinsically Safe ATEX Zone 0 Inspection Camera:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Intrinsically Safe Zone 0 Inspection Camera
📦 1x Intrinsic Power Supply
📦 1x Stainless Steel Housing
📦 1x 50m Cable
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 10-12 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What’s the max inspection range?
Up to 100 meters depending on cable selected.
Is it usable in hydrogen zones?
Yes, fully certified for hydrogen-rich ATEX Zone 0 environments.
Does it come with a control/display unit?
Yes, optional integrated control and display systems are available.
Can it be mounted on reels or sliprings?
Absolutely — we offer both as optional accessories.
