Description

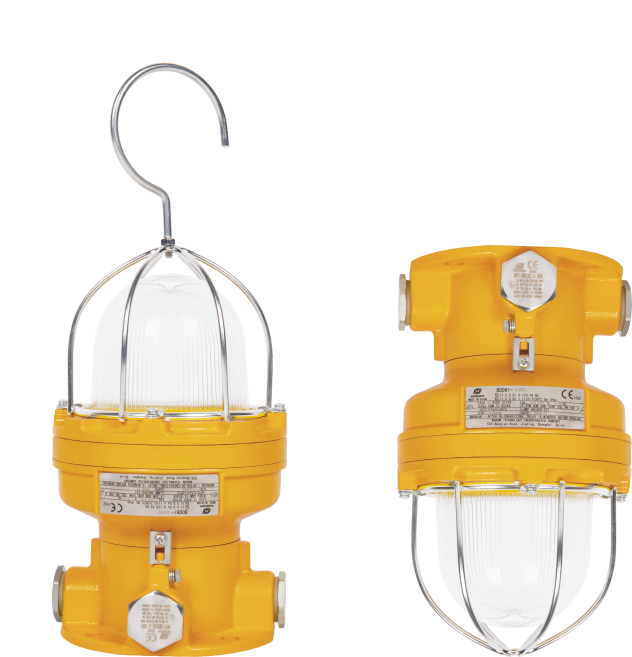

Intrinsically Safe Explosion-proof Lightings BDD81
Intrinsically Safe Explosion-proof Lightings BDD81 can reliably work in a severe environment exposed to moisture, vibration, or corrosion;
- Explosive hazardous atmosphere Zone 1, Zone 2, Zone 21, Zone 22.
- Housing: High-quality maritime aluminum alloy, powder-coated surface
- Electric: Electromagnetic ballast
- Diffuser: Toughened glass
- Protection net: Stainless steel
- Hook: Stainless steel
Technical Parameters
| Conformity to standards | IEC60079, EN60079, CCS standard |
| Ambient temperature | -40℃~+55℃ |
| Lamp holder | E27 |
| Degree of protection | IP66, IP67 |
| Corrosion-proof | WF2 |
| Cable entry | 4×M25×1.5 |
| Terminal | 3×1.5~4mm²(L+N+PE) |
| Weight | 2.7kg (Portable type) |
| 2.5kg (Ceiling type) |
| Selection table | ||||
| Type | Rated voltage (V) | Rated power | Luminous flux | Ex-Mark |
| BDD81-A25 | 220V / 230V AC 50 / 60 Hz | 25W | 201 | Ⅱ2 G Ex dⅡC T4 Gb
Ⅱ2 D Ex t Ⅲ C T130℃ Db IP66 |
| BDD81-A40 | 40W | 318 | ||
| BDD81-A60 | 60W | 500 | ||
| BDD81-A100 | 100W | 1025 | ||
| BDD81-ESL 9 | 9W | 400 | ||
| BDD81-ESL 11 | 11W | 570 | ||
| BDD81-LED 3 | 3W | 255 | ||
| BDD81-LED 5 | 5W | 425 | ||
| BDD81-LED 8 | 8W | 680 | ||

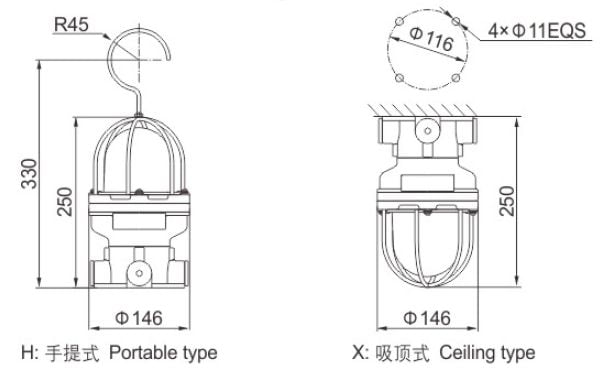

| ◆ This product is a portable type (H) and ceiling type (X) is on request.
◆ The light fitting is supplied with Ex type stopping plug and the Ex cable gland is on request. |
||||
Intrinsically Safe Explosion-proof Lightings BDD81 Certification:
IECeX Certification:
Ex d IICT4 Gb
Ex t IIIC T130℃ Db /IP66
CU TR Certification:
1Ex d ⅡC T4 Gb
Extb ⅢC T130℃ Db
Degree of protection – IP66
Ambient Temperature – ‘-40 ℃～ +55 ℃
ATEX Certification:
Ⅱ2 G Ex d ⅡC T4 Gb
Ⅱ 2D Ext ⅢC T130℃ Db/IP66
Enclosure material – Copper-free Aluminium
Intrinsically Safe Explosion-proof Lightings BDD81 Other Resources:
Intrinsically Safe Explosion-proof Lightings BDD81 brochure:
