NICOR - XPQ1B080U50GRP Titan LED Flood Light 80 Watt

The Titan hazardous site LED Flood Light/High Bay is designed for use in situations that are subject to dampness, filth, corrosion, vibration, and harsh environmental conditions. It is authorized for Class 1 Division 2 applications, which means it may be used in places with flammable gas or vapor or spaces with combustible dust, fibers, or flyings, as described by the National Electrical Code.

Features:

• DLC Premium
• UL Class I Division 2, Group A, B, C, D
• UL Class II Division 2, Group F, G
• UL844 Hazardous Location
• UL 1598 Wet Location
• UL1598A Marine
• UL 8750 LED Safety
• UL Listed
• CSA 22.2 No. 137-M1981
• CUL Listed

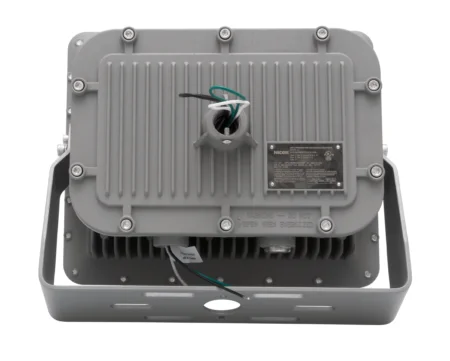

• IP66 Rated
• CSA 22.2 No. 137-M1981
• IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db
• RoHS Compliant

Construction

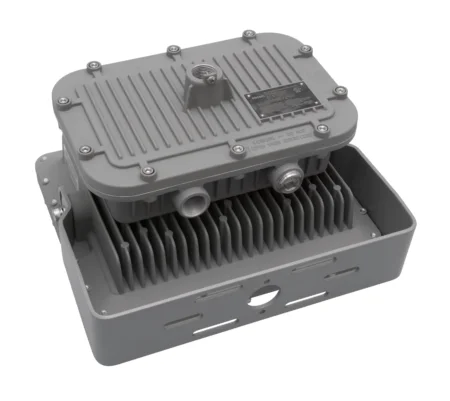

• Die-cast, copper-free aluminum housing
• Stainless steel hardware
• 3/4” NPT threaded conduit/wire access ports
• Weight - 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg)
• RoHS Compliant

Optical System

• Tempered glass creates uniform light distribution and maximizes lumen output
• Diffused lens optional**
• Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6)
• 5000K, 3000K**, or 4000K**
• CRI: 70+

Electrical

• Input voltage of 100-240/277VAC or 347-480VAC**
• The input frequency of 50/60Hz
• Power Factor of ≥.90
• THD <20%
• 10kA surge protector
• Reported L70 hours >50,000

Environmental

• Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C)
• C1D2 T4A at 122°F (50°C)
• C2D2 T4A at 122°F (50°C)
• Ambient Operating Humidity of 10%~90% RH

Finish

• RAL 7037 (Dusty Gray) polyester powder coat

Installation

• Prewired with 2’ flying leads
• Allows wiring without opening the power supply cover
• Adjustable trunnion bracket for ceiling, wall, etc.
• Integrated 3/4” NPT threaded hub for pendant mount
• Pipe mount kit available
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel

Warranty

• 5-year limited system warranty standard
• The warranty does not cover product failure due to an overvoltage event (power surge)

Specifications

Primary Component Material	Die-Cast Aluminum (Copper Free)
Product Color	Spacing Criteria
Finish	Polyester Powder Coat

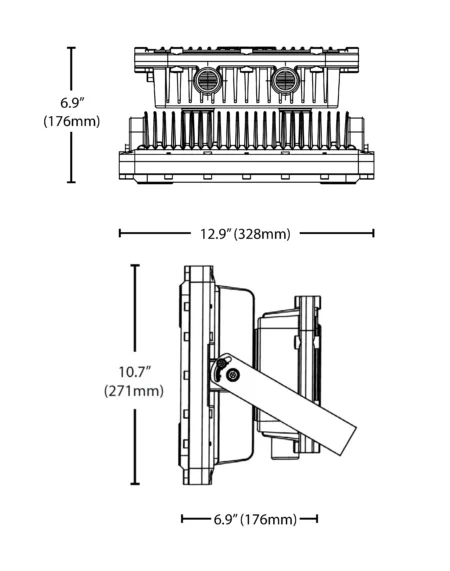

Product Length (in)	12.9
Voltage	100-240/277VAC
Wattage	73.6
Lumen Output	9240
Lumens Per Watt	125.5
Color Temperature (CCT)	5000K
CRI	70
Beam Angle	120° (+/- 10%)
Spacing Criteria	1.33
120V Current (A)	0.613
277V Current (A)	0.266
Power Factor	?.90
Total Harmonic Distortion (%)	<20%
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Product Lifespan (Hours)	>50,000
Warranty (Years)	1. 5

Certifications:

• Titan Equipment Certification Requirements

Resources:

• Specification Sheet
• Installation Instruction
• Brochure
