Lighting in Hazardous Areas: Zones and Divisions

Introduction to Hazardous Area Lighting

Welcome to the Intrinsically Safe Store, your dedicated partner for certified safety equipment. Ensuring operational safety in environments with flammable gases, vapors, or dust is non-negotiable. A critical component of this safety is the implementation of specialized lighting for hazardous areas. Standard lighting fixtures are a potential ignition source and pose a significant risk of fire or explosion. This article provides a comprehensive guide to the zones and divisions that classify hazardous areas, helping you understand the specific requirements for lighting in these critical environments. Understanding these classifications is the first step in selecting the right explosion-proof lighting solutions for compliance and safety.

Defining Hazardous Areas

Hazardous areas are specific locations that pose a fire or explosion risk due to the presence of flammable gases, vapors, dust, or fibers. These areas necessitate special considerations for lighting to prevent accidents and ensure safety.

Guidance on Zones and Divisions of Hazardous Areas

Choosing the right lighting equipment requires understanding the zones and divisions of hazardous areas. These classifications depend on the type and frequency of the hazardous material present.

Clarifications on Zone 0, Zone 1, and Zone 2

• Zone 0 includes areas where hazardous atmospheres are present continuously. This requires the highest level of protection, typically achieved with equipment certified as ‘intrinsically safe‘ (Ex ia).
• Zone 1 encompasses areas where hazardous atmospheres may occur occasionally during normal operations. It requires robust protection methods, often utilizing ‘explosion-proof’ (Ex d), ‘intrinsically safe’ (Ex ib), or other suitable certified equipment.
• Zone 2 refers to areas where hazardous atmospheres are unlikely during normal operations. Lighting for this zone requires certified protection methods designed for Zone 2, such as ‘non-sparking’ (Ex n) or ‘increased safety’ (Ex e).

Distinguishing Division 1 and Division 2

• Division 1 covers areas where ignitable concentrations of hazards can exist under normal operating conditions. Equipment for these areas must be specifically approved for Division 1 use, employing protection methods like ‘explosion-proof‘ or ‘intrinsically safe’ depending on the specific application and gas group.
• Division 2 pertains to areas where hazardous materials are present only under abnormal conditions (e.g., container failure). Lighting for these areas must be specifically rated for Division 2, designed not to be an ignition source during a fault.

Key Features & Benefits of Certified Hazardous Area Lighting

Selecting lighting certified for hazardous locations goes beyond simple compliance; it is a fundamental investment in safety and operational integrity. These specialized fixtures offer distinct advantages over standard industrial lighting.

• Enhanced Safety and Compliance: The primary benefit is ignition prevention. Certified fixtures are designed to contain sparks or prevent surfaces from reaching temperatures that could ignite hazardous materials. They meet strict standards like ATEX and IECEx, ensuring you are compliant with international safety regulations.
• Durability and Reliability: Hazardous area lights are built to withstand harsh industrial conditions, including extreme temperatures, corrosive materials, moisture, and high levels of vibration. This robust construction leads to a longer service life and reduced maintenance requirements.
• Improved Operational Efficiency: High-quality, reliable illumination improves visibility for workers, reducing the risk of errors and accidents. Modern hazardous area lighting often uses energy-efficient LED technology, which significantly lowers power consumption and long-term operating costs.

Selecting Appropriate Lighting for Hazardous Areas

Selecting suitable lighting for hazardous areas is crucial for maintaining safety. The Intrinsically Safe Store offers a wide array of lighting equipment for various zones and divisions, all certified to meet the highest safety standards.

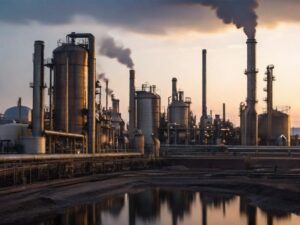

Case Study: A Chemical Plant’s Lighting Challenge

A chemical plant classified within Zone 1 required a lighting solution that could endure tough conditions and comply with safety standards. The Intrinsically Safe Store supplied a range of explosion-proof lighting that not only met safety requirements but also enhanced plant visibility and productivity.

Frequently Asked Questions

What is the main difference between the Zone and Division classification systems?

The Zone system (IECEx/ATEX), used internationally, classifies areas based on the frequency and duration of a hazardous atmosphere’s presence (Zones 0, 1, 2). The Division system (NEC/CEC), common in North America, classifies areas based on whether the hazard exists under normal or abnormal conditions (Divisions 1, 2).

Why can’t I use standard industrial lighting in a Zone 2 area?

Although a hazardous atmosphere is unlikely in a Zone 2 area, it can occur under abnormal conditions like a leak. Standard lighting is not designed to prevent ignition in such an event. Certified Zone 2 lighting has features like non-sparking components and sealed enclosures to ensure safety if flammable substances are unexpectedly present.

What does “explosion-proof” really mean?

An “explosion-proof” enclosure (for Zone 1 or Division 1) is designed to contain an internal explosion from gases that may have seeped inside. This containment prevents the internal spark or explosion from igniting the larger surrounding hazardous atmosphere. The housing is built to withstand the force and allows hot gases to cool as they escape through engineered pathways.

Conclusion

Choosing the right lighting equipment for hazardous areas is vital, whether for Zone 0, 1, 2, Division 1, or Division 2. The Intrinsically Safe Store commits to providing reliable and sturdy safety equipment, including lighting solutions for hazardous environments. Visit our website to browse our extensive product range or talk to a hazardous-area specialist for further information.
