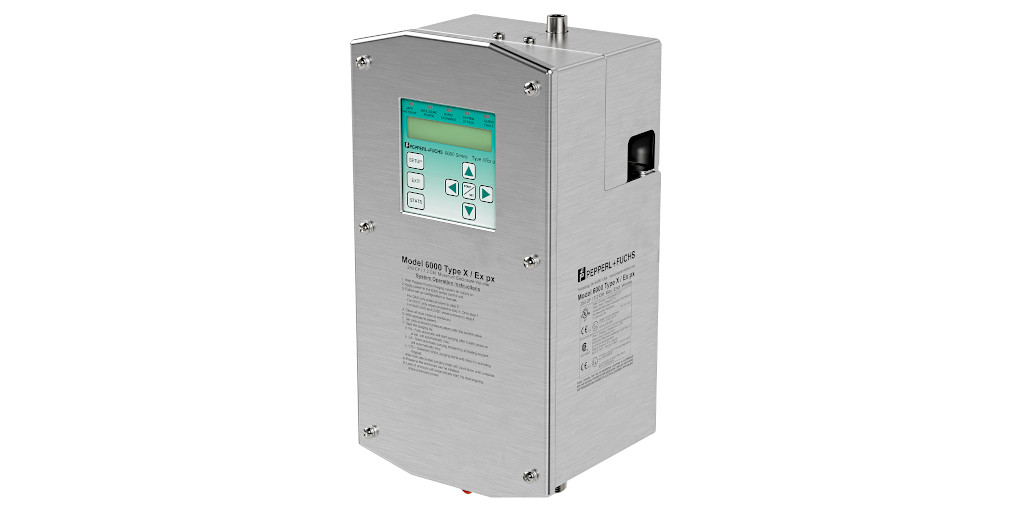

Pepperl+Fuchs 6000 Series Purge and Pressurization System – ATEX/IECEx, Zone 1 & C1D1
The Pepperl+Fuchs Bebco EPS 6000 Series is a Type X & Ex pxb purge and pressurization system designed for the highest level of protection in hazardous areas. Certified for Class I, Division 1 and Zone 1/21, it prevents ignition by displacing hazardous gases and maintaining safe enclosure pressure. Its robust design makes it ideal for critical applications in oil & gas, chemical, and heavy industrial operations.
The 6000 Series features an intrinsically safe user interface, pneumatic manifold, and stainless steel housing for reliable operation in harsh environments. It supports manual, semi-automatic, or fully automatic operation, with programmable inputs, temperature modules, auxiliary outputs, and real-time monitoring for pressure, leakage, and purge cycles.
Key Features:
✅ ATEX, IECEx, cULus certified for Zone 1/21 and Class I/II Division 1
✅ Type X purge system for maximum explosion protection
✅ Operates in manual, semi-automatic, or fully automatic modes
✅ Supports up to 4 switch inputs, temperature modules, and auxiliary outputs
✅ Enclosure protection up to 450 ft³ (12.7 m³)
✅ Stainless steel 316L housing with IP66 / Type 4X rating
✅ Intrinsically safe user interface with status LEDs
✅ Purge flow rates up to 30 SCFM (850 l/min) depending on enclosure size
✅ Compatible with EPV-6000 relief vent
✅ Rugged design for harsh industrial and offshore use
📦 Package Options:
🔹 Standard Unit: EPCU with manifold and vent interface
🔹 Kit Version: Component kit with user interface and manifold
🔹 Advanced System: With digital solenoid valve and programmable interface
Pepperl+Fuchs 6000 Series Technical Specifications:
| Feature | Details |
|---|---|
| Model | 6000 Series |
| Certification | ATEX, IECEx, cULus (C1D1, C2D1, Zone 1/21) |
| Enclosure Size | Up to 450 ft³ (12.7 m³) |
| Operating Modes | Manual, semi-automatic, fully automatic |
| Voltage Supply | 90–264 V AC or 20–30 V DC |
| Inputs | 4 switch inputs, temperature modules, EPV-6000 vent, user interface module |
| Outputs | 2 SPDT auxiliary, 2 SPST enclosure contacts |
| Indicators | LEDs: Safe pressure, purge, enclosure power, alarms, bypass |
| Ingress Protection | IP66 / Type 4X |
| Operating Temp | -20 °C to +60 °C |
| Purge Flow | Up to 30 SCFM (850 l/min), enclosure dependent |
| Safe Pressure | 0.25 in w.c. (gas), 0.65 in w.c. (dust) |
| Housing Material | 316L stainless steel |
| Dimensions | 183 × 367.5 × 152.5 mm (7.2 × 14.45 × 6.0 in) |
| Weight | 7.2–11.4 kg (16–25 lbs, depending on version) |
Certifications & Compliance:
🔗 ATEX – Zone 1/21 certified
🔗 IECEx – International approval for Type X purge systems
🔗 cULus – Class I, Division 1 and Class II, Division 1 certified
🔗 IP66 / Type 4X – Stainless steel enclosure with corrosion resistance
🔗 Download Datasheet
Applications of Pepperl+Fuchs 6000 Series:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Offshore Platforms
🔹 Mining
🔹 Manufacturing
What’s in the Box?
📦 1x Pepperl+Fuchs 6000 Series Purge and Pressurization Unit
📦 1x Mounting Kit
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Please contact us to confirm current lead times
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the difference between the 6000 and 7500/5500 series?
The 6000 Series is a Type X purge system for Zone 1/C1D1, while the 7500 and 5500 Series are for Zone 2/C1D2.
What enclosure sizes can it protect?
Enclosures up to 450 ft³ (12.7 m³).
Does it support automatic operation?
Yes, it can operate in manual, semi-automatic, or fully automatic modes.
What certifications does it carry?
It is ATEX, IECEx, and cULus certified for Class I/II Division 1 and Zone 1/21 hazardous areas.
