Class 1 Division 1 Explained: Safety in Hazardous Locations

• Class 1 Division 1 (C1D1) refers to environments where flammable gases, vapors, or liquids are present under normal operating conditions.
• Compliance with safety standards like NEC and IEC is crucial for ensuring safety and operational efficiency in hazardous locations.
• Intrinsically safe and explosion-proof certified equipment, such as the BCS 3600 series scanners, is essential for mitigating risks in Class 1 Division 1 environments.

When it comes to working in hazardous environments, understanding safety classifications is crucial. Companies operating in industries such as oil and gas, chemical manufacturing, and mining need to ensure that both their equipment and protocols comply with safety standards to prevent catastrophic incidents. One such crucial safety classification is Class 1 Division 1 (Class 1 Div 1). But what is Class 1 Div 1, and why is it so important?

This article will delve into the intricacies of Class 1 Division 1, breaking down its definition, the conditions it covers, and its significance in ensuring safety in hazardous locations. At The Intrinsically Safe Store, we pride ourselves on being the global authority in hazardous area solutions, offering a wide range of intrinsically safe and explosion-proof products, including rugged handheld scanners like the BCS 3600 series. Through this article, we aim to provide you with the knowledge and insights necessary for safer operational practices in hazardous environments.

Understanding Class 1 Division 1

When asking, “What is Class 1 Div 1?”, it is essential to understand that this designation is a classification for environments where volatile substances are present. Class 1 Division 1, or C1D1, areas are locations where ignitable concentrations of flammable gases, vapors, or liquids can exist under normal operating conditions, or where such substances may frequently be present in equipment that operates under normal conditions.

How Class 1 Division 1 Locations Are Defined

The National Electrical Code (NEC) and other international standards define hazardous locations to ensure safety in environments prone to explosions and fires due to the presence of combustible materials. Class 1 Division 1 locations involve two main parameters:

• Class 1: Pertains to facilities where flammable gases or vapors are present.
• Division 1: Indicates that these hazardous substances are likely to be present during regular operations.

Examples of Class 1 Division 1 Locations

Specific industries often contain C1D1 environments due to the nature of their operations:

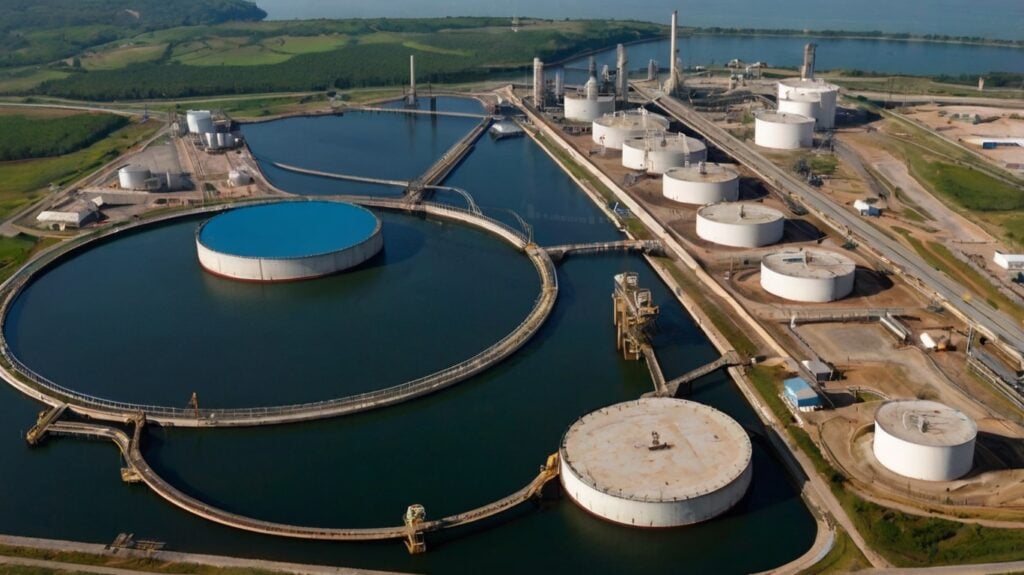

• Oil and Gas Industry: Refineries, drilling rigs, and production sites.
• Chemical Manufacturers: Sites handling volatile chemicals and solvents.
• Petrochemical Plants: Areas where processing of petroleum products occurs.

Safety Measures for C1D1 Areas

Given the high-risk nature of Class 1 Division 1 environments, stringent safety measures are necessary:

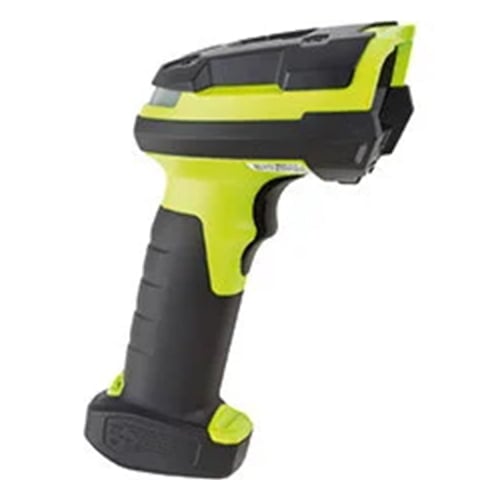

• Intrinsically Safe Equipment: Devices like our rugged handheld scanners, including the BCS 3600 series, are designed to prevent spark generation, thus minimizing the risk of igniting explosives.
• Explosion-Proof Enclosures: Equipment must be robust enough to contain any explosion and prevent external hazard propagation.
• Regular Inspections: Consistent monitoring and maintenance are essential to ensure no hazardous leakages or malfunctions occur.

Being knowledgeable about what constitutes a Class 1 Division 1 area and adhering to the strict safety protocols, companies can significantly mitigate the risks associated with operating in these hazardous environments.

Differentiating Hazardous Locations

Understanding hazardous locations is crucial for ensuring safety and compliance in industries such as oil and gas. The National Electrical Code (NEC) classifies hazardous locations into different classes and divisions based on the nature and likelihood of hazardous substances being present. These classifications help determine the types of safety measures and equipment required to mitigate risks.

Class 1: Gases, Vapors, and Liquids

Class 1 locations are defined by the presence of flammable gases, vapors, or liquids that can create explosive or ignitable mixtures. Such environments are common in industries where volatile substances are stored, processed, or handled. The classification ensures that any equipment used in these areas is designed to prevent ignition and the resulting potential for explosions.

Division 1 vs. Division 2

The division within a class further specifies the frequency and duration of exposure to hazardous substances.

• Division 1 (Div 1): This is the more stringent classification within Class 1. It denotes environments where hazardous substances are consistently present under normal operating conditions. For instance, this could be an area where a flammable vapor is regularly released into the atmosphere as part of a routine process. Consequently, equipment used in Division 1 areas must be robust enough to prevent ignition even during constant exposure to dangerous gases or vapors.
• Division 2 (Div 2): In contrast, Division 2 signifies locations where hazardous substances are not usually present but may appear under abnormal conditions such as equipment malfunctions or accidental releases. Thus, Division 2 areas require safety measures to address these occasional risks, ensuring that any potential release is promptly controlled and mitigated.

The Importance of Proper Classification

Correctly identifying and classifying hazardous locations is essential to maintaining safety, compliance, and operational efficiency. Equipment designed for Class 1 Division 1 environments, like the rugged handheld scanners from the BCS 3600 series offered by The Intrinsically Safe Store, are engineered to perform reliably amid continuous exposure to hazardous substances. By using certified intrinsically safe and explosion-proof solutions, companies can significantly reduce the risk of accidents, ensuring a safer workplace for their employees and compliance with regulatory standards.

For detailed information about specific products and solutions tailored to your hazardous area needs, visit The Intrinsically Safe Store’s extensive catalog. Our expertise in hazardous area solutions enables us to provide the right tools for the job, safeguarding your operations while optimizing performance.

Exploring Safety Standards: NEC and IEC

When discussing Class 1 Division 1 safety, it’s crucial to understand the governing safety standards: the National Electrical Code (NEC) and the International Electrotechnical Commission (IEC). These standards are the backbone of safety protocols in hazardous environments, ensuring the reliability and safety of equipment and operations.

National Electrical Code (NEC)

The NEC, also known as NFPA 70, is a widely adopted standard in the United States. It sets guidelines for electrical installations, focusing on safe design and implementation to prevent fire and electrical hazards. For Class 1 Division 1 locations, the NEC classifies areas where flammable gases, vapors, or liquids are present under normal operating conditions. It’s mandatory for companies operating in such environments to comply with NEC regulations to mitigate risks and protect personnel.

Some key NEC guidelines for Class 1 Division 1 areas include:

• Intrinsically Safe Equipment: Devices must be designed to operate safely in explosive atmospheres, with components like rugged handheld scanners ensuring no ignition sources.
• Explosion-Proof Design: Equipment must be enclosed in robust housings to contain any potential explosions.
• Proper Wiring Methods: Implementing conduit and seal systems to prevent the infiltration of hazardous elements into safe areas.

International Electrotechnical Commission (IEC)

The IEC sets global standards for electrical, electronic, and related technologies. For hazardous locations, the IEC 60079 series outlines the classification and protection of equipment used in explosive atmospheres. While similar to NEC, the IEC uses a different system, referring to equivalent areas as Zone 0, Zone 1, and Zone 2.

In the context of Class 1 Division 1 areas, the IEC equivalent would be Zone 1, where explosive atmospheres are likely to occur during normal operation. Complying with IEC standards involves:

• Equipment Certification: Ensuring devices undergo rigorous testing and certification to meet IEC safety criteria.
• Ingress Protection (IP): Defining levels of protection against solids and liquids, crucial for equipment longevity in harsh environments.
• Temperature Classification: Assigning temperature classes to prevent surface temperatures from igniting flammable substances.

By understanding and implementing these safety standards, organizations can ensure robust operational safety and compliance in hazardous environments. This knowledge is not only essential for regulatory adherence but also for maintaining a high safety standard for personnel and equipment.

Class 1 Division 1 vs. Division 2: What Sets Them Apart

When discussing hazardous locations, understanding the difference between Class 1 Division 1 (Div 1) and Class 1 Division 2 (Div 2) is crucial for ensuring safety and compliance in your operations. Both classifications pertain to environments where flammable gases or vapors are present, but they differ significantly in terms of frequency and potential for hazardous conditions.

Class 1 Division 1 (Div 1) refers to an environment where hazardous conditions are present continuously, intermittently, or periodically under normal operating conditions. These areas are often found in industries such as oil and gas, chemical manufacturing, and refineries. In Div 1 locations, safety standards require the highest level of precaution and equipment that can resist ignition during standard operations. The BCS 3600 series scanners provided by The Intrinsically Safe Store are designed to meet these stringent requirements, ensuring that your critical operations remain safe and compliant.

On the other hand, Class 1 Division 2 (Div 2) environments have hazardous conditions that are not typically present during normal operations but may occur in the event of an accidental leak or system malfunction. For example, an area in a chemical plant where flammable liquid containers are stored may be classified as Div 2 since the risk is only present if a container leaks. While Div 2 locations also demand rigorous safety measures, the level of equipment protection required is not as tight as for Div 1 environments.

One of the key differences between Div 1 and Div 2 is also the type of safety equipment that must be used. For Div 1 areas, all components, including wiring and conduits, must be explosion-proof or intrinsically safe. In contrast, Div 2 areas may permit certain types of standard industrial equipment. However, any equipment used in Div 1 areas, such as the explosion-proof and intrinsically safe solutions we offer, can provide an extra margin of safety in Div 2 environments.

Understanding these distinctions helps companies make informed decisions about the types of safety measures and equipment necessary for their specific operational contexts. At The Intrinsically Safe Store, we are committed to providing robust solutions tailored to meet the demanding needs of both Class 1 Division 1 and Division 2 environments, ensuring the utmost safety and compliance for our clients.

Certified Equipment for C1D1 Environments

When operating in Class 1 Division 1 (C1D1) environments, the selection and use of certified equipment is crucial for ensuring safety and compliance. Intrinsically Safe (IS) and Explosion-Proof (XP) equipment are designed to function properly within these hazardous locations, reducing the risk of ignition and ensuring continued operation in potentially volatile atmospheres.

Intrinsically Safe Equipment

Intrinsically Safe equipment is designed to limit the energy—electrical and thermal—available for ignition in hazardous areas. This means that even in the event of electrical faults, the energy released will not be sufficient to cause an explosion. Products like the BCS 3600 series rugged handheld scanners offered by the Intrinsically Safe Store are exemplary of IS equipment, providing reliable operation without compromising safety in dangerous conditions.

Explosion-Proof Equipment

Explosion-Proof equipment, on the other hand, is constructed to contain any explosion that could occur within its enclosures. This prevents the explosion from igniting the surrounding atmosphere. The certifications for such equipment ensure that they can withstand these internal explosions and maintain their structural integrity, thereby protecting the broader environment.

Importance of Certification

Certification is a vital aspect when selecting equipment for C1D1 environments. Certified equipment has been rigorously tested and approved to meet specific standards, such as those set by Underwriters Laboratories (UL) and the International Electrotechnical Commission (IEC). These certifications assure that the equipment is suitable for use in hazardous locations and provides a layer of security for operational integrity.

At the Intrinsically Safe Store, we offer a comprehensive range of certified C1D1 products. Our global authority in hazardous area solutions ensures that every product meets stringent certification standards, safeguarding your operations while maintaining peak performance.

By investing in certified C1D1 equipment, companies can ensure compliance with safety regulations, protect their workforce, and prevent costly accidents, ultimately securing their investments and promoting a safer working environment.

The Role of Intrinsically Safe Devices

In hazardous locations classified as Class 1 Division 1, the importance of intrinsically safe devices cannot be overstated. These devices are engineered to operate safely in environments where flammable gases, vapors, or liquids are continuously present under normal operating conditions. By limiting the energy available for ignition, intrinsically safe devices mitigate the risk of explosions and ensure operational safety.

At The Intrinsically Safe Store, we specialize in providing solutions that meet Class 1 Division 1 requirements. For example, our rugged handheld scanners, like the BCS 3600 series, are designed with specific safety features to function effectively in high-risk areas. These scanners not only adhere to stringent safety regulations but also deliver reliable performance, making them indispensable tools for industries such as oil and gas.

The use of intrinsically safe devices extends beyond preventing explosive incidents; it also contributes to regulatory compliance. Organizations operating in hazardous environments must adhere to a variety of safety standards and regulations, such as those specified by OSHA, NEC, and NFPA. By integrating intrinsically safe devices into their operations, companies can ensure compliance with these regulations, thereby avoiding potential penalties and enhancing workplace safety.

In addition, intrinsically safe devices are engineered for durability and longevity, reducing the need for frequent replacements or repairs. This endurance ultimately translates to lower operational costs and increased efficiency, allowing companies to focus on their core activities without compromising safety.

Conclusion

Understanding what is Class 1 Div 1 is essential for maintaining safety and compliance in hazardous environments like the oil and gas industry. Class 1 Division 1 specifies areas where flammable gases or vapors are present in sufficient quantities to pose a risk under normal operating conditions. Ensuring that equipment and operational protocols meet Class 1 Division 1 standards can prevent catastrophic incidents, protect workers, and maintain regulatory compliance.

At the Intrinsically Safe Store, we take pride in offering a comprehensive selection of intrinsically safe and explosion-proof certified solutions. From rugged handheld scanners like the BCS 3600 series to other essential equipment, our products are designed to excel in the most challenging environments, helping you adhere to stringent safety standards. As a global authority in hazardous area solutions, our mission is to provide you with the expertise and products needed to navigate and mitigate risks in hazardous locations.

Keep abreast of industry standards and best practices by following our blog. We offer invaluable insights on topics such as MIL-STD-461 testing requirements and developments in hazardous area solutions, ensuring you stay informed and prepared. Trust Intrinsically Safe Store to be your reliable partner in safety and compliance.

FAQs: Class 1 Division 1 Explained

What types of environments are classified as Class 1 Division 1?

Class 1 Division 1 environments are areas where flammable gases, vapors, or liquids are present in the air in sufficient quantities to produce explosive or ignitable mixtures. These conditions can be routine during normal operations, maintenance, repair activities, or even equipment malfunctions. Common examples include refineries, chemical plants, oil and gas drilling sites, and paint facilities.

What are the requirements for electrical equipment in Class 1 Division 1 areas?

Electrical equipment used in Class 1 Division 1 areas must meet stringent safety standards to ensure they do not ignite explosive gases or vapors. This equipment must be either intrinsically safe or explosion-proof. Intrinsically safe equipment limits electrical and thermal energy to levels incapable of causing ignition, while explosion-proof equipment is designed to contain any explosion within the housing, preventing it from igniting the surrounding atmosphere.

How is explosion-proof equipment designed for Class 1 Division 1 environments?

Explosion-proof equipment is engineered with robust housings that can withstand internal explosions. These housings are constructed to contain blasts and prevent any flames, sparks, or hot gases from escaping and igniting the external environment. Materials used in explosion-proof designs are typically high-strength alloys, and the equipment is often tested rigorously to ensure compliance with industry standards.

Can non-explosion-proof equipment ever be used in Class 1 Division 1 areas?

Non-explosion-proof equipment should never be used in Class 1 Division 1 areas due to the high risk of ignition. Only equipment certified as intrinsically safe or explosion-proof is permissible. Using non-compliant equipment can result in severe hazards, including explosions, fires, and injuries to personnel.

How are gases and vapors classified for Class 1 Division 1 areas?

Gases and vapors in Class 1 Division 1 areas are classified based on their properties, such as ignition temperature, explosion pressure, and potential explosive energy. These classifications help in selecting appropriate equipment and preventive measures. Standards like the National Electrical Code (NEC) and the International Electrotechnical Commission (IEC) provide guidelines for classifying and managing these hazardous gases and vapors.

For a comprehensive selection of Class 1 Division 1 compliant equipment, visit The Intrinsically Safe Store, your global authority in hazardous area solutions. Our rugged handheld scanners, like the BCS 3600 series, are designed for safe and efficient operation in hazardous environments.
