Intrinsically Safe Handheld Barcode Scanner Bartec BCS 3600

SKU: B7-A2S4-2HP1
(3 customer reviews)

Explosion proof Intrinsically Safe hand-held barcode scanners ATEX Zone 2/22 and Class 1 Division 2 Hazardous Area certified.

ATEX Rating

Hazardous Area Rating

$1,80400

Price Depends on product option
Make a selection to update price

Clear

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

Intrinsically Safe Handheld Barcode Scanner Bartec BCS 3600

  • ATEX Zone 2/22
  • CSA Class 1 Division 2
  • Amazing scanning ability – Scan a barcode in basically any condition. Very good in rugged environments
  • Rugged design for long-lasting durability in any environment
  • Very good battery – Spare battery sold separately

Bartec 3600 explosion proof hand-held scanners offer great performance for data capture of 1D & 2D barcodes, photos, documents, etc.

The Bartec devices are based on the ZEBRA “3600 Ultra-Rugged Series Handheld Scanners” series and are now available in an explosion-protected ATEX rated version. They are available for ATEX/IECEx and CSA. The series consists of either a corded (BCS 3608ex) and cordless (BCS 3678ex) Bluetooth version.

These scanners enable every 1D or 2D barcode to be scanned from a distance of up to 2.1 m, but also capture a diverse amount of business information to rationalize everyday business processes such as OCR, documents and photos.

Irrespective of the type of data your employees need to collect, you now get all the familiar functions from the industrial application for use in a potentially explosive atmosphere.

Intrinsically Safe Rated for Zone 2/22 & CSA Class I, II, III Div. 2

ATEX:
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T135 °C Dc IP 64

IECEx:
Ex ic IIC T4 Gc
Ex ic IIIB T135 °C Dc IP 64

CSA:
Class I Div 2 Groups A, B, C and D T4

Ambient temperature
-20 °C to 50 °C

Intrinsically Safe Certificate Download

Intrinsically Safe Handheld Barcode Scanner Bartec BCS 3600 IECEx Certification

Protection classIP 65
Dimensions185 mm x 76 mm x 142 mm
MaterialLexan EXL 1414
Weight411 g
Interface
(Scanner to the universal power supply module)Cordless connection to:
Bluetooth universal supply module, base station,
Bluetooth-enabled terminal devices
Bluetooth Class 1, Version 4.0 (LE)
serial interface (SPP) and HID profileRadio range:
- Class 1: at least 100.0 m
- Class 2: at least 10.0 m
BatteryLithium-ion 3.6 V/3150 mAh
Input voltage4,2 V
Input currentJanuary 22, 1900
Data captureHigh-performance scanner SE4750-HP
1D barcodes, 2D barcodes, postcodes, OCR

2 Versions Available (see below for individual details):

The Bluetooth version is ideal for mobile applications used to collect data from 1D barcodes, 2D barcodes, postcodes and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. For the Bluetooth version, there are several options for data transfer via Bluetooth.

The corded version is ideal for stationary applications used to collect data from 1D barcodes, 2D barcodes, postcodes and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. The corded version requires a universal supply module to guarantee ex-compliant voltage supply and data communication.

Outstanding performance
Your employees can scan information at high speed – virtually all current barcodes under any conditions. From photos to document the condition of incoming deliveries, through to images for the purpose of electronic archiving. It is not even a problem if barcodes are damaged, soiled or have been printed in poor quality – this intelligent scanner can handle them all.

Ultra-rugged design
There is hardly any place as tough as in the warehouse or the production plant. For this reason, we have now also developed an explosion proof version of the DS 3608 and DS 3678 from ZEBRA. These models are available in a corded or cordless design and are the most robust scanners on the market.

Unrivaled handling simplicity
With the tools available, these scanners are easy to use. You can remotely configure and extend your scanners, format data for an immediate transfer to your business applications, monitor the battery charge of cordless models and much more.

Outstanding scan performance with 1D/2D barcodes in every environment
The advanced imager reads 1D and 2D barcodes on a monitor or label faster and with a 30 % larger working area than comparable models of this class for unsurpassed productivity. Employees are able to successfully scan virtually
any barcode at the first attempt, even if it is damaged, dirty, poorly printed or under shrink-wrap.

Ultra-rugged – the toughest design in its class
The BCS 3608ex/BCS 3678ex is our toughest scanner yet, with the highest drop and tumble specification and the best sealing of its class. The BCS 3608ex/ BCS 3678ex is built to survive a 2.4 m drop to concrete, which is 23 % more durable than any other scanner in this class. The BCS 3608ex/BCS 3678ex operates reliably even after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust-proof, spray-proof and water-proofed to IP 65.

More than just barcodes: capture OCR, photos, and documents
With ZEBRA’s intelligent document capture, photos are taken, refocused and corrected to make them easier to read. The support of several OCR typefaces also ensures fast and simple data transfer.

Simple handling with the original complimentary tools from ZEBRA
You can use the original ZEBRA tools for the DS3608-HP and DS3678-HP series. The 123Scan Utility and the Scanner Management Service (SMS) are available with which scanners can be configured remotely, firmware upgrades carried out, data formatted to fit your backend systems or the Power Precision /- battery statistics checked and more.

Capture and processing of up to 20 barcodes simultaneously
Many labels have several barcodes which need to be scanned by your staff. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your back-end systems – all with complete control over the order barcodes are processed.

Faster pick-list processing
Users can easily select and read an individual barcode from any pick list.

Extreme temperature rating
These scanners withstand extreme cold, heat and moisture and can be deployed almost anywhere.

A Bluetooth model in a class of its own for superior cordless freedom
Bluetooth 4.0 (Low Energy) provides a lightning fast connection and maximum energy efficiency. Our ZEBRA Wi-Fi Friendly Mode eliminates the interference that Bluetooth devices can often create in Wi-Fi environments. The compact and rugged cradle offers excellent flexibility and durability. The BCS 3678ex is the only scanner of this product family with a cradle in the IP 65 class of protection. Its charging contacts withstand 250,000 insertions.

The first-in-its-class ‘battery charge gauge‘ and Bluetooth status LED make it easy to monitor battery power as well as Bluetooth connectivity. The Power Precision /- battery represents the ultimate when it comes to battery performance and management. You achieve more scans per battery charge compared to rival products and obtain a wealth of data about the condition of the battery, for example past charge cycles, current battery status and an operating status display that indicates whether batteries are functioning efficiently and are fully charged or whether they must be taken out of operation.

Decoding options:

1D barcodes

UPC/EAN, UPC/EAN with supplementals,
Bookland EAN, ISSN, UCC Coupon Extended
Code, Code 128, GS1-128, ISBT 128,
ISBT Concatenation, Code 39, Code 39 Full
ASCII, Trioptic Code 39, Code 32, Code 93,
Code 11, Interleaved 2 of 5, Discrete 2 of 5,
Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5,
Korean 3 of 5, GS1 DataBar variants

2D barcodes:

PDF417, MicroPDF417, Composite Codes,
TLC-39, Data Matrix, Maxicode, QR Code,
Micro QR, Aztec, Han Xin, GS1-QR, GS1-DM

Postcodes:

US Postnet, US Planet, UK Postal, Japan Post,
Australia Post, Royal Mail 4 State Customer,
KIX Code (Dutch), UPU 4 State Postal FICS
(Post US4), USPS 4 State Postal (Post US3)

OCR

(optical character
recognition, photos and
documents):OCR-A/B, MICR-E13B,
Series number of US currency

Decoding ranges
Symbology/resolution Near/distant
Code 128: 0.127 mm 15.2 to 35.6 cm
Code 128: 0.508 mm 12.7 to 114.3 cm
Code 128: 1.016 mm 7.1 to 203.2 cm
DataMatrix: 0.1905 mm 17.8 to 27.9 cm
DataMatrix: 0.254 mm 15.2 to 38.1 cm

Bluetooth hand-held Scanner BCS 3678ex-NI CORDLESS

  • ATEX/IECEx Zone 2/22 and CSA Class I, II, III Division 2

The cordless Bluetooth version is ideal for mobile applications used to collect data from 1D barcodes, 2D barcodes, postcodes and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. For the Bluetooth version, there are several options for data transfer via Bluetooth.

Explosion protection /Markings:ATEX Zone 2/22
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T135 °C Dc IP 64
Certification EPS 16 ATEX 1113 X
Marking IECEx
Zone 2/22
Ex ic IIC T4 Gc
Ex ic IIIB T135 °C Dc IP 64
Certification IECEx EPS 16.0050X
Marking CSA Class I, II, III Div. 2
Class I Div. 2 Groups A, B, C and D
Class II Div. 2 Groups E, F
Class III
Class I Div. 2
Class I Div. 2 Groups A, B, C and D T4
Technical dataPhysical features: Dimensions (H x W x D) 185 mm x 76 mm x 142 mm Weight 411 g
Operating current (full operation):650 mA (typical)
Resting current (stand-by) 4 mA (typical)
Max. input voltage 4.2 V
Max. input power 2.275 W
Max. input current 10 A
Max. inner capacity 1105.2 μF
Max. inner inductivity 15.96 μH
Colour Industrial green
Material Lexane EXL 1414
User displays Direct decoding display, LEDs,
signal tone, vibration
Battery Lithium-ion 3.6 V/3150 mAh
Cordless connection to Bluetooth universal supply module, base station,
Bluetooth-enabled terminal devices
Bluetooth Class 1, Version 4.0 (LE),
serial interface (SPP) and HID profile
Radio range(direct visual connection outdoors- laboratory values)
Via Bluetooth universal supply module, base
station or Bluetooth-enabled terminal devices
Class 1: at least 100.0 m
Class 2: at least 10.0 m
Data rate 3 Mbit/s (2.1 Mbit/s) for classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Performance featuresIllumination 2 x LED, warm white
High-performance scanner 1D/2D imager SE4750
For scanning 1D barcodes, 2D barcodes, postcodes, OCR
User environment
Ambient temperature -20 °C to 50 °C
Storage temperature -40 °C to 70 °C
Relative air humidity 5 % to 95 %, condensing
Protection class IP 65
Insensitivity to ambient light
0 to 108,000 lux (in direct sunlight)
Programming/service programs
Programming cable (from PC to scanner via USB)
Available as an option; for the use of ZEBRA
Software Tools such as 123Scan Utility to configure hand-held scanners in the safe area
on a PC Programming manual Permits programming by scanning barcodes.
123Scan Utility Programming of scanner parameters via USB,
firmware upgrades, provision of scanned barcode data and printing of reports.
Scanner Management Service (SMS)
Performs remote administration of your ZEBRA
scanners and retrieves its inventory data.

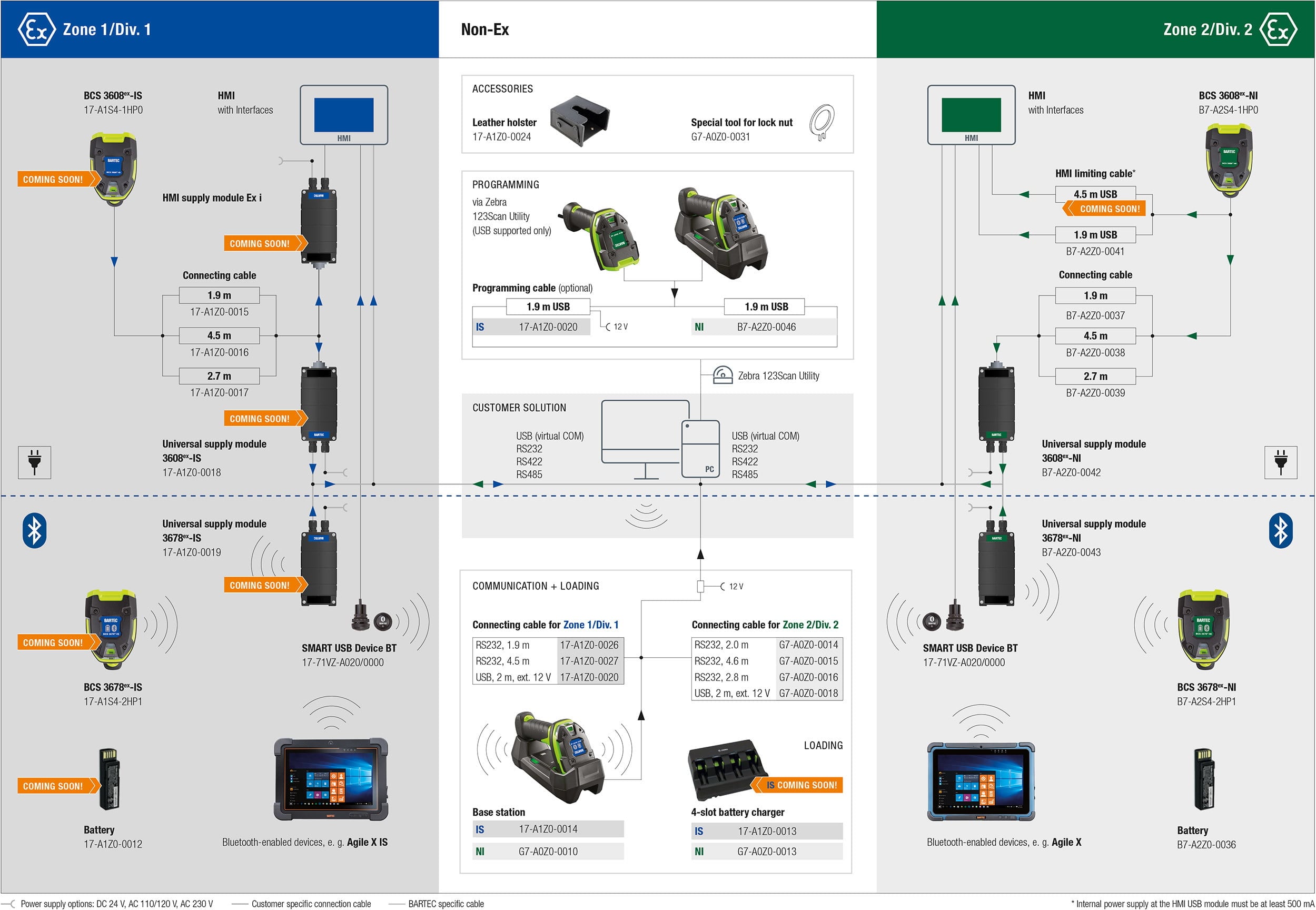

Scope of DeliveryBCS 3678ex-NI, Battery, Special tool for safety
lock, Quick start guide

Also required: (not included with delivery)

  • Battery charger or base station for charging
  • Universal supply module or base station connecting cable for data transmission
  • Power pack with DC connecting cable
  • AC power cable

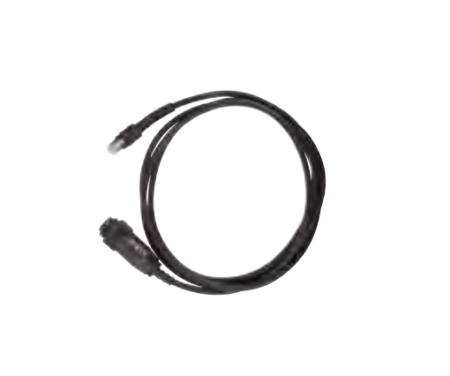

  • Connecting cable (type G7-A0Z0)

Ordering information BCS 3678ex-NI B7-A2S4-2HP1 Technical data subject to change without notice.

Hand-held Scanner BCS 3608ex-NI CORDED

  • ATEX/IECEx Zone 2/22 and CSA Class I, II, III Division 2

The corded version is ideal for stationary applications used to collect data from 1D barcodes, 2D barcodes, postcodes and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. The corded version requires a universal supply module to guarantee ex-compliant voltage supply and data communication.

MarkingsATEX Zone 2/22
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T135 °C Dc IP 64
Certification EPS 16 ATEX 1113 X
Marking IECEx
Zone 2/22
Ex ic IIC T4 Gc
Ex ic IIIB T135 °C Dc IP 64
Certification IECEx EPS 16.0050X
Marking CSA Class I, II, III Div 2
Class I Div 2 Groups A, B, C and D
Class II Div 2 Groups E, F
Class III
Class I Div 2
Class I Div 2 Groups A, B, C and D T4
Technical dataDimensions (H x W x D) 185 mm x 76 mm x 132 mm
Weight 309 g excluding cord
Operating current (full operation) 500 mA (typical)
Resting current (stand-by) 165 mA (typical)
Input voltage 5 V
Max. input power 2.75 W
Max. input current 550 mA
Max. inner capacity 752.57 μF
Max. inner inductivity 17.4 μH
Colour Industrial green
Material Lexane EXL 1414
User displays Direct decoding display, LEDs, signal tone, vibration
Power supply using universal supply module or
other Ex-compliant supply module
Supported interfaces RS232
(Scanner to the universal power supply module)Performance features
Illumination 2 x LED, warm white
High-performance scanner
1D/2D imager SE4750
For scanning 1D barcodes, 2D barcodes,
postcodes, OCR
User environment
Ambient temperature -20 °C to 50 °C
Storage temperature -40 °C to 70 °C
Relative air humidity 5 % to 95 %, condensing
Protection class IP 65
Insensitivity to ambient light
0 to 108,000 lux (in direct sunlight)
Programming/service programs
Programming cable
(from PC to scannervia USB)
Available as an option; for the use of ZEBRA
Software Tools such as 123Scan Utility to
configure hand-held scanners in the safe area on a PC
Programming manual Permits programming by scanning barcodes.
Available at: www.zebra.com
123 Scan Utility Programming of scanner parameters via USB
firmware upgrades, provision of scanned
barcode data and printing of reports.
Scanner Management
Service (SMS)
Performs remote administration of your ZEBRA
scanners and retrieves its inventory data.
Scope of delivery BCS 3608ex-NI, Quick start guide
Also required: (not included with delivery)
Universal supply module connecting cable or
HMI limiting cable for data transmission

Ordering information: BCS 3608ex-NI B7-A2S4-1HPO Technical data subject to change without notice.
