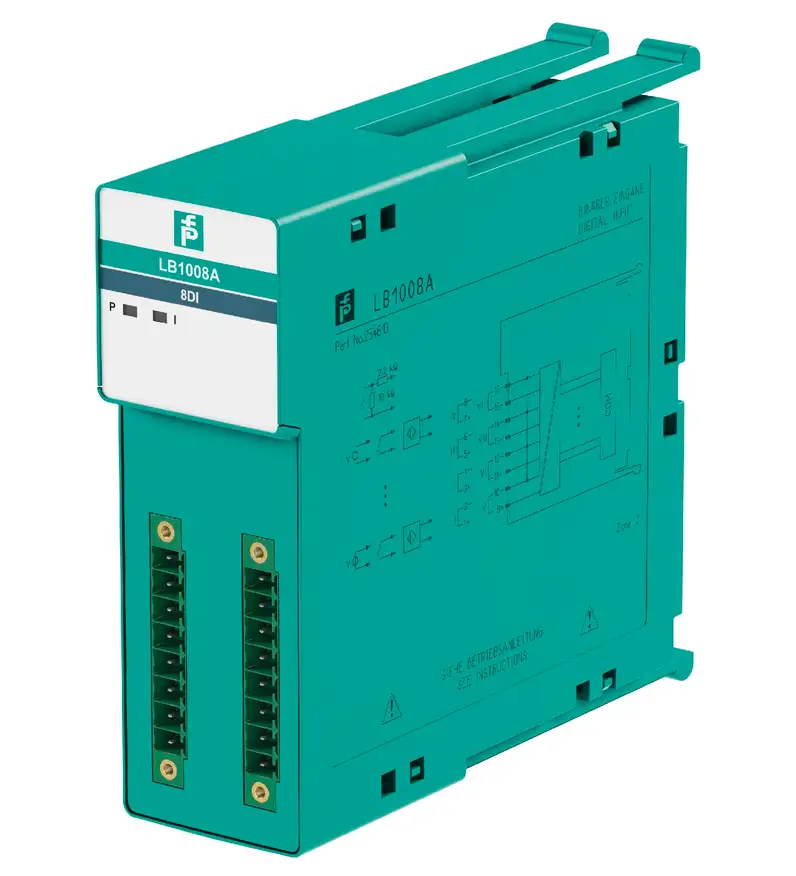

Pepperl+Fuchs LB1008A Digital Input Module – ATEX/IECEx Zone 2, 8-Channel NAMUR
The Pepperl+Fuchs LB1008A is an intrinsically safe digital input module designed for use in Zone 2 or safe areas. It accepts up to 8 input signals from NAMUR sensors or mechanical contacts, providing reliable signal transmission and fault detection in hazardous area automation systems. With ATEX and IECEx certification, it is a robust solution for process industries requiring safe and continuous operation.
This module features configurable logic (positive or negative), line fault detection, and simulation mode for service operations. Its hot-swappable design allows replacement under voltage, reducing downtime during maintenance. Permanently self-monitoring and galvanically isolated from the power supply and bus, the LB1008A ensures system integrity and operational safety in oil & gas, chemical, and industrial plants.
Key Features:
✅ ATEX and IECEx certified for Zone 2 installations
✅ 8 input channels for NAMUR sensors or mechanical contacts
✅ Positive or negative logic selectable
✅ Line fault detection (LFD) per channel
✅ Hot-swappable module replacement under voltage
✅ Simulation mode for service and testing
✅ Permanently self-monitoring design
✅ Compact footprint with IP20 protection (backplane-mounted)
✅ Operates in -20 °C to +60 °C environments
📦 Package Options:
🔹 LB1008A Standard Module
🔹 With NAMUR Input Configuration
🔹 With Dry Contact Input Configuration
Pepperl+Fuchs LB1008A Technical Specifications:
| Feature | Details |
|---|---|
| Model | LB1008A |
| Certification | ATEX, IECEx (Zone 2, IECEx BVS 09.0037X) |
| Inputs | 8 channels (NAMUR or dry contact) |
| Logic | Positive or negative selectable |
| Fault Detection | Line fault detection (short/open circuit) |
| Power Supply | 12 V DC (via LB9xxx backplane bus) |
| Power Consumption | 0.95 W |
| Indicators | Power LED (green), Fault LED (red) |
| Operating Temp | -20 °C to +60 °C |
| Protection | IP20 (when backplane mounted) |
| Dimensions | 32.5 × 100 × 102 mm (1.28 × 3.9 × 4 in) |
| Weight | 130 g (0.29 lbs) |
Certifications & Compliance:
🔗 ATEX – Zone 2 certified digital input module
🔗 IECEx – Global approval for hazardous area applications
🔗 PF 08 CERT 1234 X – EU certificate
🔗 IECEx BVS 09.0037X – International certificate
🔗 IP20 – Protection when mounted on backplane
🔗 Download Datasheet
Applications of Pepperl+Fuchs LB1008A:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Process Automation
🔹 Manufacturing
What’s in the Box?
📦 1x Pepperl+Fuchs LB1008A Digital Input Module
📦 1x Front Connector (removable)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Please contact us to confirm current lead times
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What types of inputs does the LB1008A accept?
It accepts NAMUR sensors and mechanical dry contacts.
Can it detect wiring faults?
Yes, it provides line fault detection for short or open circuits.
Is it hot-swappable?
Yes, the module can be exchanged under voltage without shutting down the system.
Where can it be installed?
It can be installed in Zone 2 hazardous areas or in safe areas.
