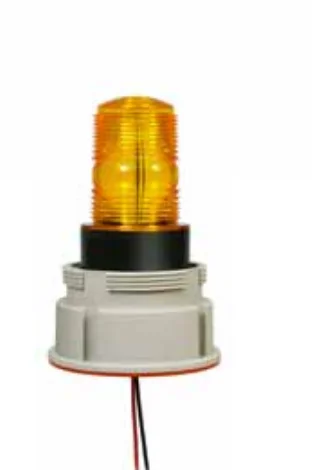

Explosion Proof Strobe Tomar 4120X-120VDC

SKU: N/A

Introducing Tomar Electronics’ Model 4120X Hazardous Location Strobe Lights – expertly crafted for peak performance in challenging environments. With a non-metallic, NEMA 4X design and versatile mounting options, these lights redefine durability and adaptability for hazardous locations.



Hazardous Area Rating

$52405

Price Depends on product option
Make a selection to update price

Shipping Time: 2-10 business days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Explosion Proof Strobe Tomar 4120X-120VDC

Introducing Tomar Electronics’ Explosion Proof Strobe Tomar 4120X-120VDC of Hazardous Location Div. 2 Strobe Lights – meticulously engineered for optimal performance in the toughest environments. Crafted from 30% glass-filled thermoset polyester, this strobe light excels in corrosive and wet NEMA 4X harsh conditions found in hazardous locations. The high-strength FRP material resists corrosive effects from chemicals, hydrocarbons, and solvents, making it ideal for diverse applications in manufacturing plants, chemical processing, sewage treatment, offshore installations, and more.

Completely non-metallic, these warning lights are fully potted in urethane material, ensuring zero exposure to high voltage. With NEMA 4X rating in any mounting configuration (base up, down, or side positions), flexibility is paramount. Unique mounts accommodate Pendant, Flange, or Wall installations, allowing you to choose the style that suits your needs. For added protection, an optional dome guard is also available. Tomar Electronics brings you a Hazardous Location Strobe Light that redefines durability and adaptability in demanding environments. The Model 4000X is a reliable and versatile choice for hazardous locations, ensuring safety and efficiency in diverse industrial settings

Features:

  • Certifications: Class I, Div. 2 Groups A, B, C & D; Class 1, Zone 2, Groups IIC, IIB, IIA; Class II Div. 2 Groups F & G; Class III.
  • Enclosure Ratings: CSA Enclosure Type 4X, IP66; NEMA 4X, Marine Rated.
  • Warranty: Impressive 10-year warranty on the Power Supply.
  • Strobe Tube Longevity: Boasts a 10,000-hour strobe tube for extended operational life.
  • Sealed Construction: Ensures robustness and reliability in challenging environments.
  • Lens Colors: Offers versatile signaling with 6 lens colors – Amber, Blue, Clear, Green, Purple & Red.
  • Xenon Strobe Tube: Utilizes a powerful 5001 Xenon Strobe Tube, delivering 80 flashes per minute.
  • Temperature Range: Wide operating temperature range from -40°C to +85°C, with Temp Code: T12.
  • Voltage/Amps Options:
    • 400mA @ 12 VDC
    • 200mA @ 24 VDC
    • 040mA @ 120 VAC
    • 020mA @ 240 VAC.

Explosion Proof Strobe Tomar 4120X

Specifications:

Technical Data
Model No.DescriptionVoltage
4120XXenon Strobe Body Only120 VAC
Light Output50 effective candlepower (ECP)**ECP (Effective Candlepower) is the intensity that would appear to
an observer if the light were burning steadily
Lamp Type5001 Xenon Strobe tube
Flash Rate80 flashes per minute

Voltage and
Amperage
400 mA @ 12 VDC / 200 mA @ 24 VDC
040 mA @ 120 VAC / 020 mA @ 240 VAC
Power Supply Output
2.7 Watts
1.9 joules per flash. 190,000 Peak Candlepower****Peak Candlepower is the maximum light intensity generated by a
flashing light during its light pulse.
Temperature Range–40º C to +65º C
Temperature CodeT2C

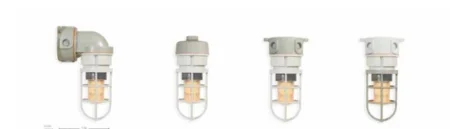

Available Mounts & Guard Options

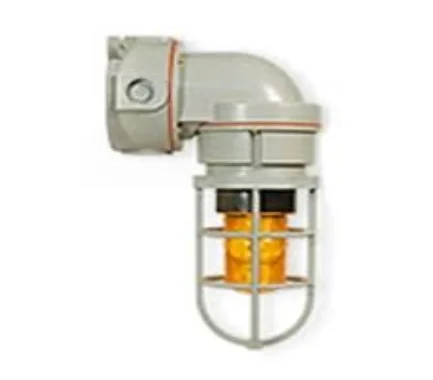

NVPPendant Mount
NVFFlange/Ceiling Mount
NVWWall Mount
NVGDome Guard

Explosion Proof Strobe Tomar 4120X
