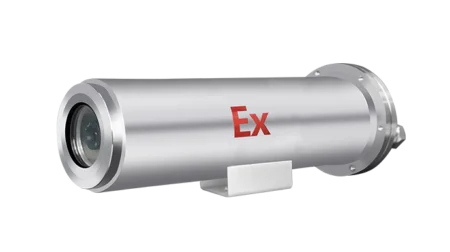

Intrinsically Safe Explosion Proof Camera Housing TX-EX553-H1SAD

Product Features

  •  Equipped with the latest SONY CCD program, the resolution of the analog camera can reach up to 800TVL;
  •  When visible light is insufficient, automatic day and night conversion, clear and meticulous color lifelike high-quality picture;
  •  Photosensitive performance is greatly improved, and the minimum illumination is as low as color 0.01Lux@F1.2;
  • The latest fourth-generation wide dynamic technology, the dynamic range is greater than 75dB, the effect improvement is very obvious;
  • 3D digital noise reduction technology, increase the noise reduction processing of the original signal, the image at night is clean and bright;

Introducing Intrinsically Safe Explosion Proof Camera Housing TX-EX553-H1SAD

Optical grade high-strength and high-transmittance ultra-white explosion-proof glass, with light pass rate higher than 96%;

Nano invisible wiper, not sticky water, not sticky oil, dust repellent;

High hardness special carbon steel by fluorocarbon high temperature spray baking or stainless steel polishing/passivation process, explosion-proof, dust-proof, waterproof, rust-proof;

Optional semiconductor silicon controlled temperature control module to realize automatic heating and cooling functions.



SPECIFICATION

ModelTX-EX553-H1S(A/[A]/N)D
Certification
Explosion-proof marksExdⅡCT6Gb/ExtD A21 IP68 T80℃
Explosion-proof certificate NoCNEx15.3653
Mechanical properties of the materialCarbon steel or 304 stainless steel
Surface treatmentHigh temperature fluorocarbon spray baking or stainless steel primary color
Protection gradeIP68
The interface specificationG-3/4"
The weight of the installation wall≤8kg
Electrical performance
The input voltageDC12V或AC110-240V
Working current≤2000mA
The CameraImaging device5 megapixels 1/2.5 "CMOS sensor (network)
1/3SONY Super EFFIO HAD/Exview HADII CCD Sensor(simulated)
Effective pixels1.3 megapixels /2 megapixels (network)
700TVL(simulated)
2 million 1080P(coaxial HD) [SUPPORT AHD/HDCVI or HDTVI format]
The lens4mm/6mm/8mm/12mm/16mm
Signal to noise ratio>52db
Minimum illumination0Lux(infra-red on)
Infrareddistance30m
The wavelength850nm
On/offAuto(≤10Lux)
Electrical connectionCompound cable (network + power supply), or network cable, power supply separate outlet
The environment temperature(-30℃,+70℃)
The atmospheric pressure80-106KPa
Relative humidity≤95%RH(+25℃)
