Users get simplicity with Android, ultimate processing power, a larger touch display, and much more. New data capture capabilities include an extraordinary scan range of up to 21.4 m. The new battery runs nearly twice as long as the MC9200ex series on a single charge. The Bartec MC93Ex-NI Mobile Computer is the most rugged mobile computer ever created, ready to outlast virtually every device in its class in any environment. The Mobility DNA solution from ZEBRA complements the Bartec MC93Ex-NI Mobile Computer with a comprehensive suite of software solutions for easy setup, tools to increase productivity, business and management solutions, and kits for software development of your own solutions. You get reliable, first-class WLAN connectivity by the use of 2×2 MUMIMO technology in combination with the Mobility DNA Worry-Free WiFi solution.
The MC93ex-NI is approved for ATEX and IECEx Zone 2/22 and UL Class I, II, III Div.2. Further local certifications are possible on customer request.
Features:
- Users get simplicity with Android, ultimate processing power, a larger touch display, and much more.
- New data capture capabilities include an extraordinary scan range of up to 21.4 m.
- The new battery runs twice as long as the MC9200ex series on a single charge.
- If you’re looking for the most durable mobile PC on the market, go no further than this one.
- The new software solutions from Zebra “Mobility DNA” help you get more value out of the MC93ex-NI.
Specifications:
| Explosion protection | |
| Marking ATEX | Ex II 3G Ex ic op is IIC T6 Gc Ex II 3D Ex ic op is IIIB T80 °C Dc IP 65 |
| Certification | EPS 19 ATEX 1 239 X |
| Marking IECEx | Ex ic op is IIC T6 Gc Ex ic op is IIIB T80 °C Dc IP 65 |
| Certification | IECEx EPS 19.0108X |
| Marking NEC | Class I, Div. 2, Groups A, B, C, D; Class II, Div. 2, Groups F, G; Class III; T6 |
| Certification | UL E321557 |
| Further Certifications | CE, FCC/IC |
| User environment | |
| Operating temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Charging temperature | 0 °C to +45 °C (32°F to 113°F) |
| Storage temperature (without battery | -40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidity | 5 % ~ 95 % (non-condensing) |
| Protection class (IEC 60529) | IP 65 |
| Drop Specification | 3.1 m (122 inch) drops at room temperature per MIL-STD-810G, 2.4 m (94,5 inch) drops to concrete across temperature per MIL-STD-810G |
| Tumble Specification | 6.000 tumbles from a height of 1 m (39.4 inch); meets and exceeds IEC tumble specification |
| Technical data | |
| Processor | Qualcomm Snapdragon 660 octa-core 2.2 GHz |
| Memory (RAM) | 4 GB |
| Mass storage | 32 GB Flash pSLC |
| Storage expansion | User accessible MicroSD with 32GB SDHC |
| Operating system | Android 10 Hardware supports future Android versions (up to Android 12) Configuration: Zebra's "Restricted Mode" can be set via StageNow, for control over Google Mobile Services (GMS) and other services. |
| Size (W x L x H) | 88 mm x 240mm x 189 mm (3.5 inch x 9.4 inch x 7.4 inch) |
| Weight (with battery) | 765 g (1.69 lb) |
| Display | 4.3" IPS Display with LED Backlight |
| Resolution | 800 x 400 pixel, WVGA |
| Front glass | Corning Gorilla glass |
| Touch function | Capactive Touch |
| Usability | With stylus, finger or glove depending on the mode selected |

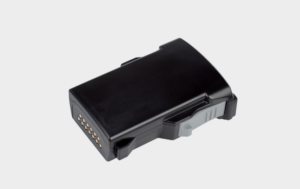

| Battery | Lithium-ion battery 3.6 V/7000 mAh (25.2 Wh); Fast charging (charge from 0% to 90% in less than 3.5 hours with appropriate accessories); Hot swap battery backup with temporary session persistence (only in non Ex area) |
| Notification | Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback |
| Voice & Audio | Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support). |
| Keypad | Backlit, Field replaceable keypads: – 53 Key alpha-numeric STD – 53 Key Terminal Emulation (VT) – 43 Key function numeric – 29 Key Numeric/Calculation |
| Barcode capture | – SE4770-SR: 1D/2D standard range omnidirectional imager; Reading range up to 91.6 cm (35.8 inch) depending on type, size and quality of the barcode – SE4850-ER: Extended range 1D/2D imaging engine; Reading range up to 21.4 m (842.5 inch) depending on type, size and quality of the barcode – supported symbiology's/barcodes: see table |
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support |
| WLAN-WiFi | IEEE 802.11 a/b/g/n/ac/d/h/i/k/mc/r/v/w; Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO Data Rates: 5 GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4 GHz: 802.11b/g/n — up to 300 Mbps Operating Channels: Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency Security and Encryption: WPA3-Personal (SAE); WPA3-Enterprise; Enhanced Open - Based on opportunistic wireless encryption (OWE)*; WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/ WPA2 Enterprise (TKIP and AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0- MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD * Note that OWE is a separate Wi-Fi Alliance certification program and not WPA3 Multimedia: Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC) Certifications: WFA (802.11n, WMM-PS, 802.11ac, PMF, WMMAC, Voice Enterprise, WiFi Direct and WPS 2.0) Fast Roam: PMKID caching; Cisco CCKM; 802.11r; OKC |
| Bluetooth | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
| Sensor | 3-axis Accelerometer with MEMS Gyro |
| Mobility DNA | Mobility DNA solutions help you get more value out of our mobile computers by adding functionality As well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit zebra.com/mobility dna |
| PTT (Push-to-Talk) App | Powered by Zebra Technologies, BARTEC brings the enterprise-class push-to-talk application PTT Pro into hazardous areas. PTT Pro connects your workforce with enterprise-class instant PTT and secure messaging services. It supports direct messaging, image, audio, and video - regardless of whether your users are carrying a BARTEC mobile device in hazardous areas, or their own Android or Windows device in nonhazardous areas. For more information see bartec.com |
| Warranty | 1 year |
| Service contracts | COMFORT and ALL-IN |
| Scope of delivery | – Mobile Computer MC93ex-NI – Standard battery – Quick start guide |

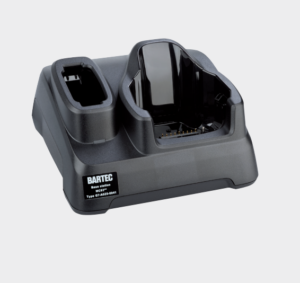

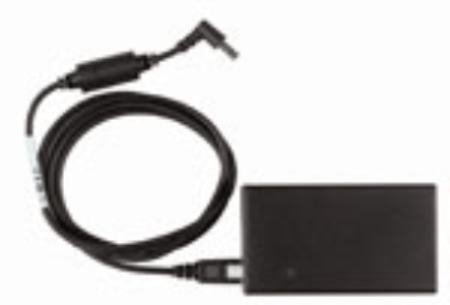

| Also required | (not included in the delivery) – Base station or charging adapter for charging |
