Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis
- ATEX Zone 1/21
- IECEx
- Loud and clear communication due to low noise amplifier
- Connector for external accessories
- Detachable clip
- Emergency button
- Three stage volume regulator
- Dynamic loudspeaker pattern
- Electret microphone pattern
- IP54

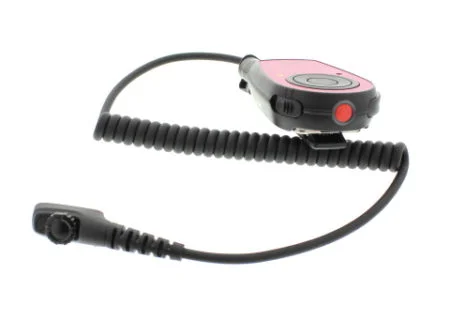

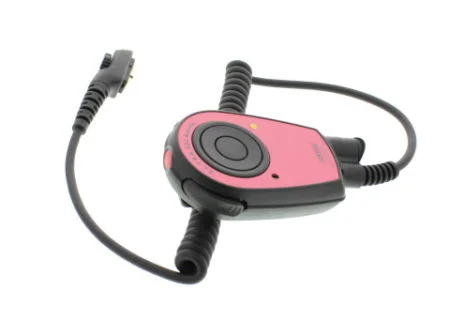

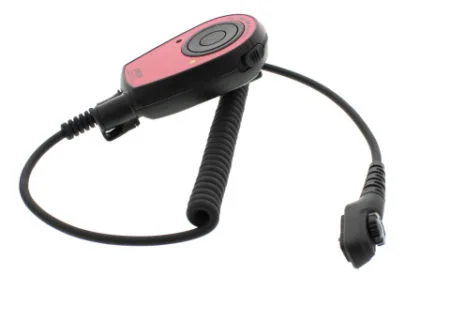

Introducing the Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis is certified ATEX Zone 1/21 use for hazardous areas. Backed up with IECEx approval. The Ex-TRA 80* Aurelis is one of the loudest speaker-mics on the market due to the integrated amplifier. It is also the first audio accessory, especially designed for digital radios.
Technical Data
| LOUDSPEAKER | |
| PATTERN: | dynamic |
| IMPEDANCE: | 8 Ohm at 1 mW / 1 kHz |
| SOUND PRESSURE LEVEL: | max. 86 dB |
| FREQUENCY RANGE: | 200 Hz - 8 kHz |
| MICROPHONE | |
| PATTERN: | electret |
| DIRECTIONAL: | omni-directional |
| IMPEDANCE: | 1,200 Ohm |
| SENSIVITY: | -38 dB V / Pa 1 kHz |
| FREQUENCY RANGE: | 50 Hz - 16 kHz |
| ADDITIONAL DATA | |
| AMBIENT TEMPERATURE: | -20 °C … +55 °C (-4 °F … +131 °F) |
| PROTECTION CLASS: | IP54 |
| WEIGHT: | approx. 200 g |
Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Certifications:
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis ATEX Certificate
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis IECEx Certificate
Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Other Resources:
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Datasheet – English
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Datasheet – French
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Datasheet – German
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Datasheet – Italian
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Safety Instructions – English
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Safety Instructions – French
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 Aurelis Safety Instructions – German
- Intrinsically Safe Remote Speaker Microphone Ecom Ex-TRA 80 AurelisSafety Instructions – Italian
archeal –
The first audio accessory, especially designed for digital radios. Certified ATEX Zone 1/21, IECEx and IP54.
