Intrinsically Safe Tablet Ecom Pad-Ex 01 HR DZ2 – Windows

SKU: N/A
(1 customer review)

Intrinsically Safe Tablet Ecom Pad-Ex 01 HR DZ2 is ATEX Zone 2 and CSA Division 2 certified. 5th Generation Intel Core Processor and Bluetooth 4.0 Class 1. 4G LTE wireless connections. Supports GPS and Augmented Reality. Can also work as barcode scanner. Base unit contains: 11,6” XGA (1366 x 768) Display, Sunlight 730 nits, Win 10 Professional, WLAN+BT Intel 7260, Main Battery Pack 4130mAh, AC Adaptor EU Power Cord Dock Connector. Purchase US Power Cord separately.

ATEX Rating

Hazardous Area Rating

IECEx certified

Yes

$2,76700

Price Depends on product option
Make a selection to update price

Clear

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

Intrinsically Safe Tablet Ecom Pad-Ex 01 HR DZ2 – Windows

  • ATEX Zone 2
  • IECEx
  • CSA Class 1 Division 2
  • Intel 5 processor
  • 2MP Front Camera and 5 MP Rear Camera
  • 8 GB Memory
  • 256 GB Storage
  • 11,6” XGA (1366 x 768) Display
  • Sunlight 730 nits
  • Win 10 Professional
  • WWAN (Mobile Data / 4G/LTE via your telcom SIM Card) LTE + GPS Combination
  • WLAN+BT Intel 7260
  • Main Battery Pack 4130mAh

11.6″ widescreen display with sunlight readable solution

  • 1920 x 1080: High Resolution Display
  • Sunlight Readable Display
  • Capacitive Multi-Touch Screen

Integrated options for various Applications

  • Data Collection
  • 1D/2D Barcode Scanner (optional)
  • 5MP Auto Focus Camera with LED Flash Light

Certified to use around Zone 2 and Division 2 areas, Intrinsically Safe Tablet Ecom Pad-Ex 01 HR DZ2 is known to meet all the environmental requirements. With its powerful 5th generation Intel Core i5/i7 processor, this tablet is not only ultra fast but also very efficient to run multiple applications at a time. It also provides battery life up to 7 hours and takes Windows 10 Pro support.

Ecom Instruments: Mobile Safety

It is thin, light and strong. Considered as one of the most successful tablets in its class, Pad-EX 01 DZ2 was tested using the military standards. It managed to fully meet IP65, 4 feet drop and MIL-STD OG for vibration. Connectivity is the fastest in the world with the 4G/LTE wireless connections. For areas without Wi-fi or 4G access, this tablet provides up to 256GB of SSD memory to meet your on-board data storage needs. It is also backed up with the Bluetooth standards which allows user to access features such as data collection, AutoID and Bluetooth Beacons for localization. Other features include: 1920 x 1080 high resolution display, 11.6″ widescreen display with sunlight readable screen, 5MP auto focus camera with LED flash light and 1D/2D barcode scanner.

Specifications:

RUGGED FEATURES
IP65 DROPMIL-STD 81O G 516.6 Procedure IV
6 drops from 4 feet height to plywood over concrete
VIBRATIONMIL-STD 810G 514.6 Procedure I Cat. 24,
Fig. 514.6E-1
ENVIRONMENT TEMPERATUREOperating: -10°C - 55°C (14°F - 131°F)
HUMIDITYOperating: 5% - 95%
ALTITUDEOperating: 15,000 feet
TECHNICAL FEATURES
OPERATING SYSTEMFull Windows 10 64 Bit / Windows 10 Pro
CPUIntel Broadwell i5 series / i7 optional
MEMORYOne DDR3L socket for 4GB / 8GB
STORAGEM2-SATA SSD 128GB / 256GB
DISPLAY11.6" HD (1920 x 1080) LCD Panel
Capacitive Multi-Touch
Optical Bonding Sunlight Readable LCD
Ambient Light Sensor
SENSORBuilt-in G sensor, Gyroscope, and E-Compass
AUDIOSpeaker x1 / 70dB
Microphone x1
CAMERA2MP Front Facing Camera
5MP Rear Camera with auto focus and 1500mcd LED flashlight
support Geo Tagging (Optional)
COMMUNICATION4G LTE (Optional)
GPS (Optional)
Intel Wireless AC7260 802.11 a/b/g/n/ac Bluetooth 4.0 Class 1
DATA COLLECTION1D / 2D Barcode Scanner (Optional)
VO PORTSTwo USB 3.0
One Headphone out / Mic-in jack
One Docking Connector
One Expansion Connector for Expansion Modules
Two RF pass-through connectors for WWAN & GPS
EXPANSION SLOTSOne Micro SD Card slot support SDHC & SDXC
One SIM Card
BUTTONPower
Volume
Windows Touch button
Barcode / Camera Touch Button
Programmable Touch Button
BATTERYOne 3950 mAh Li-Polymer battery pack: 7hrs
7800 mAh (Optional) Li-Polymer battery pack: 14hrs
AC ADAPTOR19V, 3.42A; 65W
DIMENSION298.5mm x 192mm x 20mm (11.75" x 7.55" x 0.78")
WEIGHT1.2 Kg (~42.32 oz)

Intrinsically Safe Tablet Ecom Pad-Ex 01 HR DZ2 Certifications:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

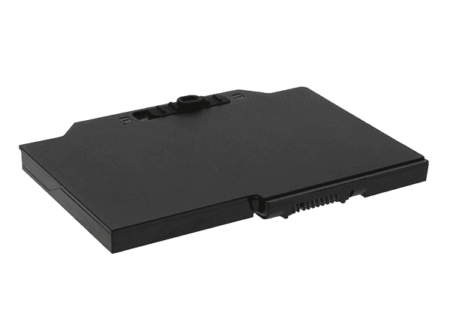

Ecom Pad-Ex 01 BP P01 SC Spare Battery
