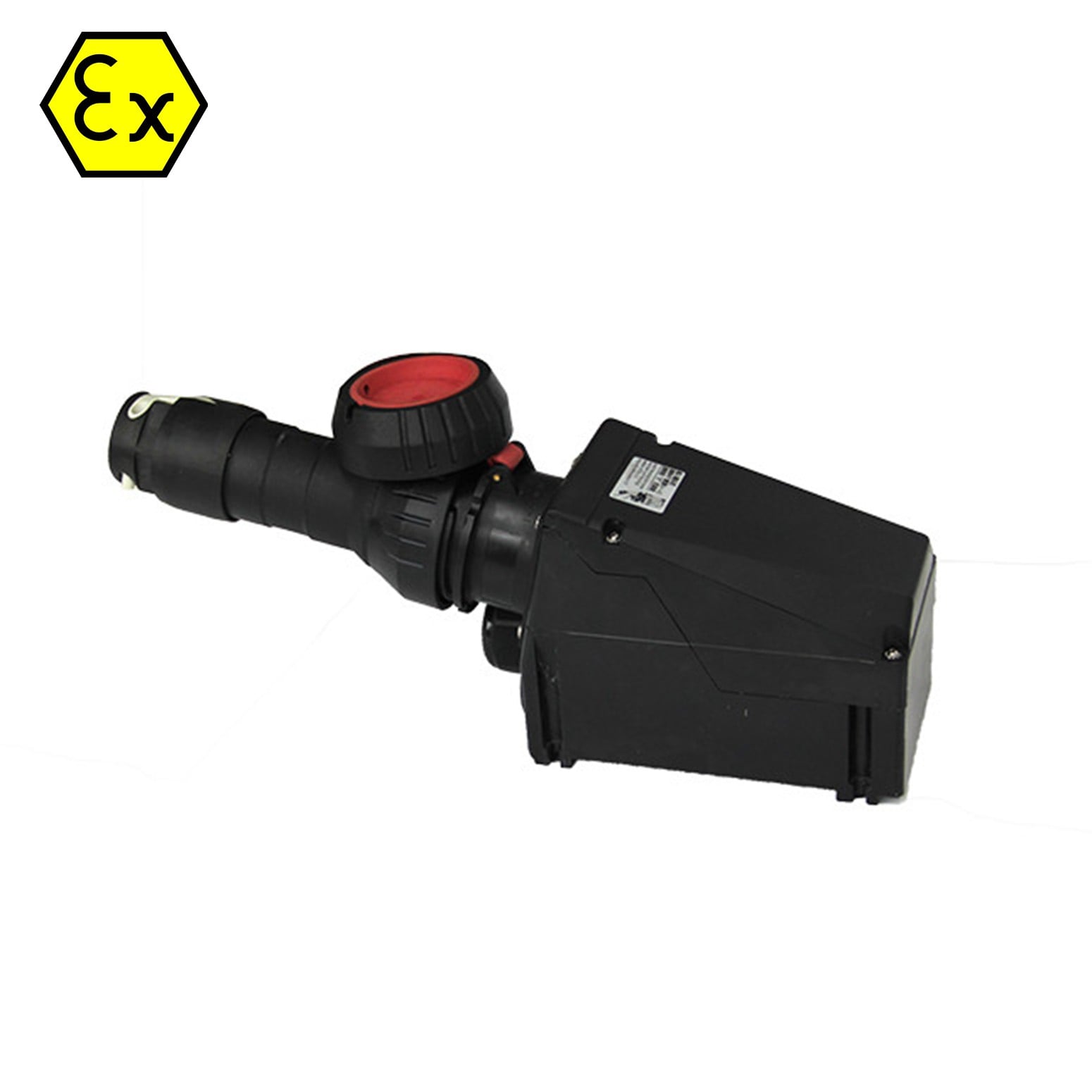

Lampsuite BCZ8060 Explosion Proof Plug & Socket – Wall Mounted 63A 5-Pin 220–250V IP65
The Lampsuite BCZ8060 Explosion Proof Plug & Socket is a hazardous-area electrical connection solution designed for safe power distribution in explosive gas and combustible dust environments. Engineered for industrial professionals working in oil & gas, chemical plants, marine operations, and manufacturing facilities, this wall-mounted explosion proof plug and socket provides secure and reliable electrical connectivity where hazardous location compliance is critical.
Built for demanding industrial environments, the BCZ8060 features a robust 63A (3PH+N+PE) 5-pin configuration operating at 220–250V. With an IP65 ingress protection rating, WF2 anti-corrosion protection, and certified explosion-proof construction, this industrial plug & socket is designed to withstand harsh operating conditions while ensuring safe electrical operation in hazardous locations.
Key Features:
✅ Ex db eb IIC T6/T5 Gb / Ex tb IIIC T80°C Db explosion protection certification
✅ Designed for hazardous gas and combustible dust environments
✅ 63A 5-pin (3PH+N+PE) industrial power connection
✅ 220–250V operating voltage
✅ IP65 rated for dust-tight and water-resistant protection
✅ WF2 anti-corrosion rating for harsh industrial environments
✅ Wall-mounted industrial configuration for secure installation
✅ Cable entry size: M50 × 1.5
✅ Compatible cable outer diameter: Φ23–35mm
📦 Package Options:
🔹 Wall Mounted Version: BCZ8060 – 63A Explosion Proof Plug & Socket, 5-Pin, 220–250V
Lampsuite BCZ8060 Technical Specifications:
| Feature | Details |
|---|---|
| Brand | Lampsuite |
| Model / SKU | BCZ8060 |
| Product Type | Explosion Proof Plug & Socket (Wall Mounted) |
| Current Rating | 63A |
| Pin Configuration | 5-Pin (3PH+N+PE) |
| Voltage | 220–250V |
| Protection Rating | IP65 |
| Explosion Protection | Ex db eb IIC T6/T5 Gb |
| Dust Protection | Ex tb IIIC T80°C Db |
| Corrosion Resistance | WF2 |
| Cable Entry | M50 × 1.5 |
| Cable Diameter Range | Φ23–35mm |
| Mounting Type | Wall Mounted |
| Application | Hazardous Areas / Industrial Facilities |
Certifications & Compliance:
🔗 Ex db eb IIC T6/T5 Gb – Certified for explosive gas atmospheres
🔗 Ex tb IIIC T80°C Db – Suitable for combustible dust hazardous environments
🔗 WF2 Anti-Corrosion Rating – Enhanced resistance for harsh industrial conditions
🔗 IP65 – Dust-tight enclosure with water jet protection
🔗 Download Datasheet
Applications of Lampsuite BCZ8060:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Marine Facilities
🔹 Manufacturing
What’s in the Box?
📦 1x Lampsuite BCZ8060 Explosion Proof Plug & Socket (Wall Mounted)
📦 1x Explosion Proof Plug
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2-3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
Is the BCZ8060 suitable for hazardous locations?
Yes. The BCZ8060 is engineered for hazardous environments involving explosive gases and combustible dust, with Ex db eb IIC and Ex tb IIIC protection markings.
What voltage and amperage does this plug & socket support?
This model supports 220–250V operation and is rated for 63A with a 5-pin (3PH+N+PE) configuration.
Can this unit be used outdoors or in harsh environments?
Yes. With an IP65 protection rating and WF2 anti-corrosion resistance, the BCZ8060 is designed to perform in demanding industrial and outdoor environments.
Which industries typically use this product?
The BCZ8060 is commonly used in oil & gas facilities, chemical processing plants, mining operations, marine environments, and heavy industrial manufacturing.
