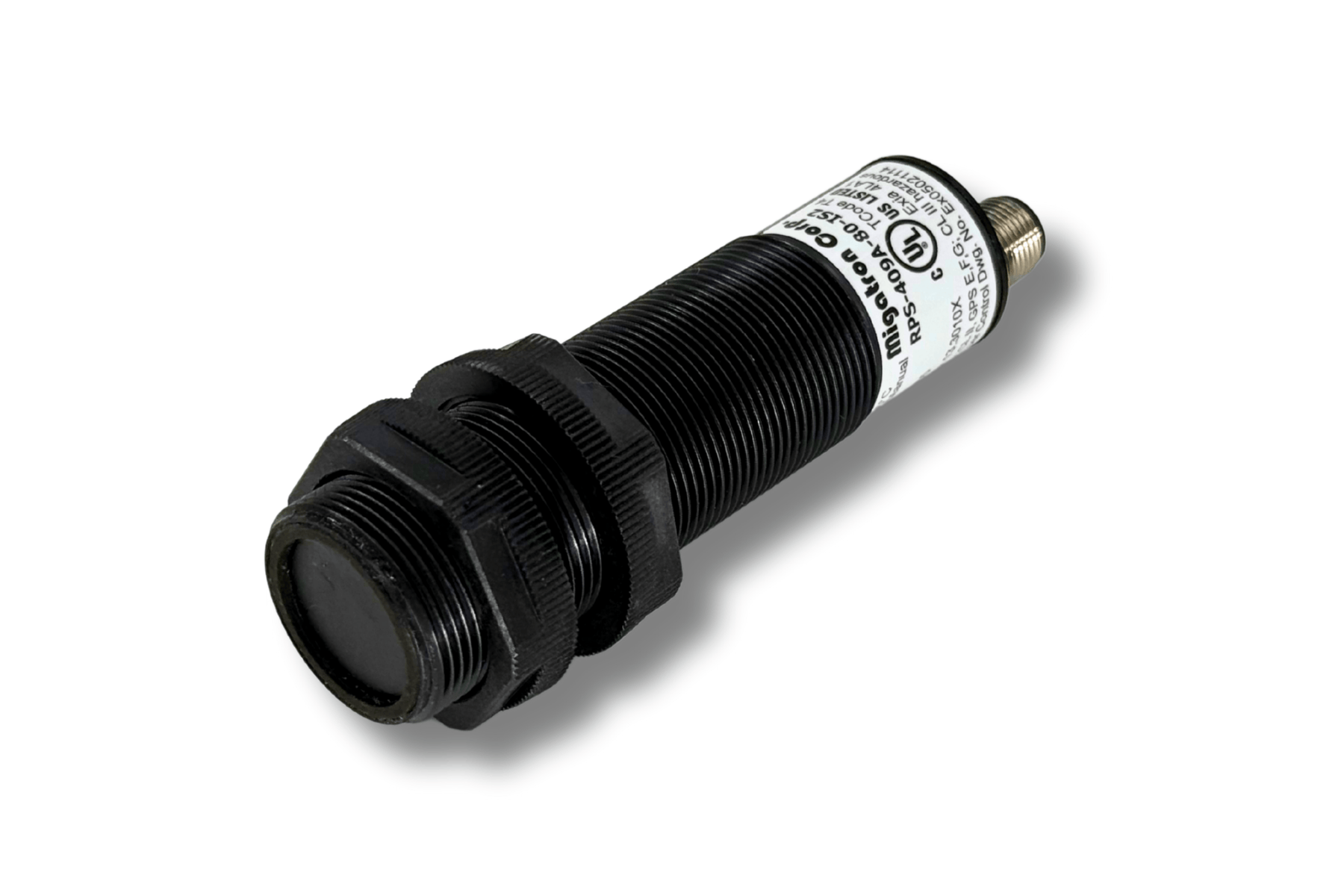

RPS-409A-IS2 Intrinsically Safe Ultrasonic Sensor
The RPS-409A-IS2 Intrinsically Safe Ultrasonic Sensor is an intrinsically safe analog ultrasonic sensor designed for use in hazardous gas and dust environments. This versatile sensor offers a variety of sensing ranges and is ideal for industries such as oil and gas, chemical plants, and other hazardous locations classified under ATEX, IECEx, and UL standards. With built-in temperature compensation and a robust enclosure, the RPS-409A-IS2 provides reliable and accurate readings even in extreme conditions.
Key Features:
- Intrinsically Safe Design: Certified for use in hazardous environments with ATEX, IECEx, and UL certifications.
- Sensing Ranges: Available in multiple sensing ranges, including 4-40″, 6-80″, 10-144″, and 12-216″.
- Analog Voltage Output: Provides a linear analog voltage output that varies with the distance of the target.
- Temperature Compensation: Ensures accurate readings across the entire operating temperature range.
- LED Indicator: Green LED indicates no target, while the LED turns red when a target is detected.
- Sync/Tx Input Line: Allows for connecting multiple sensors to prevent cross talk or control when the sensor transmits.
- Durable Enclosure: The sensor is housed in either PPS or PVC, providing protection and durability in demanding environments.
Options:
| Model Number | Sensor Range | Response Time | Transducer Frequency | |
|---|---|---|---|---|
| RPS-409A-40-IS2 | 4 – 40″ | 100ms | 175kHz | |
| RPS-409A-80-IS2 | 6 – 80″ | 100ms | 135kHz | |
| RPS-409A-40P-IS2 | 4 – 40″ | 100ms | 175kHz | |
| RPS-409A-80P-IS2 | 6 – 80″ | 100ms | 135kHz |
Specifications:
- Power Input: Operates on 16-30V DC with reverse polarity protection.
- Input Current: Maximum of 24mA at 24V DC applied to the safety barrier.
- Output: Short-circuit protected analog voltage output with load resistance ranging from 100k Ohms to infinity.
- Operating Temperature Range: -40°C to +60°C (-40°F to +140°F).
- Humidity Tolerance: 0-95% non-condensing.
- Enclosure Material: Available in Polyphenylene Sulfide (PPS) or Polyvinyl Chloride (PVC) with IP67-rated sealing.
- Weight: 105 grams (3.7 ounces) for the sensor, 118 grams (4.2 ounces) including jam nuts.
Applications:
- Hazardous Locations: Suitable for use in Zone 0, 1, 2, 20, 21, or 22 classified areas.
- Industrial Automation: Ideal for integration with PLCs and computer analog input cards for industrial control and automation systems.
- Extreme Environments: Performs reliably in a wide temperature range, making it ideal for outdoor or high-temperature industrial applications.
Optional Accessories:
- Cables: Available in 2-meter, 5-meter, and 6-meter lengths with M12 4-pin IP67 connectors.
- Safety Barrier: ZSB-409A safety barrier sold separately.
- Grounding Block: DIN rail grounding block sold separately.
The RPS-409A-IS2 provides a dependable, intrinsically safe solution for ultrasonic sensing in hazardous environments, delivering high accuracy and performance while meeting the most stringent safety standards.
Certifications:
- ATEX Certification:
- Ex I M2 (M1) Ex db mb [ia Ma] I Mb
- Ex II 2 (1) G Ex db mb [ia Ga] IIA/IIB/IIC T5…T6 Gb
- Ex II 2 (1) D Ex mb tb [ia Da] IIIC T80°C…T100°C Db
- IECEx Certification:
- Ex db mb [ia Ma] I Mb
- Ex db mb [ia Ga] IIA/IIB/IIC T5…T6 Gb
- Ex mb tb [ia Da] IIIC T80°C…T100°C Db
- UL Certification (USA & Canada):
- Class I, Division 1, Groups A, B, C, & D
- Class II, Division 1, Groups E, F, & G
- Class III, Division 1
