Description

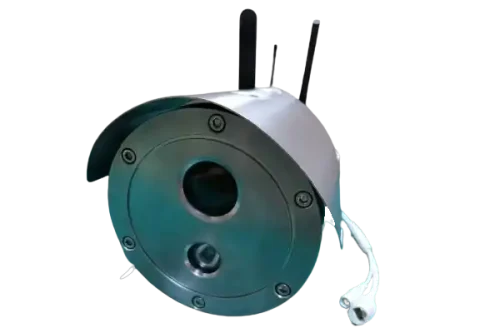

ATEX Explosion Proof Camera KX-EX707PWG2 | WiFi, 4G Hazardous Area CCTV
The KX-EX707PWG2 Explosion Proof Camera is an ATEX-certified hazardous area surveillance solution engineered for use in explosive gas and combustible dust environments. Designed for oil & gas, chemical plants, offshore facilities, mining, pharmaceuticals, and industrial operations, this rugged camera provides reliable remote monitoring while maintaining compliance in hazardous locations.
Featuring Full HD 1080P resolution, a SONY CMOS imaging sensor, infrared night vision up to 30 meters, and optional WiFi and 4G connectivity, the KX-EX707PWG2 ensures clear monitoring in demanding field conditions. Available in both SS304 stainless steel and corrosion-resistant SS316L for marine and offshore applications, the camera supports mobile monitoring, ONVIF compatibility, H.264/H.265 compression, and remote surveillance for critical assets.
Key Features:
✅ ATEX Certified: II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC IP68 T80°C Db
✅ Full HD 2MP Camera with up to 1920 × 1080 resolution
✅ IP66 weatherproof protection for indoor and outdoor hazardous areas
✅ Connectivity options: WiFi, 4G, or WiFi + 4G versions available
✅ SONY 1/2.7″ CMOS sensor with 2.8–12mm lens and auto IR-CUT day/night mode
✅ Infrared night vision up to 30 meters for 24/7 monitoring
✅ H.264 / H.265 / MJPEG video compression support
✅ ONVIF, PSIA, CGI, ISAPI, and GB28181 network compatibility
✅ Optional POE, DC12V, or built-in battery power supply
✅ Available in SS304 or SS316L stainless steel for corrosive environments
📦 Package Options:
Standard Industrial Environment (SS304 Stainless Steel)
🔹 KX-EX707PWG2-W – WiFi Version
Best for facilities with stable internal wireless networks and local monitoring access.
🔹 KX-EX707PWG2-4G – 4G Version
Ideal for remote hazardous areas without WiFi access, enabling cellular remote monitoring via SIM card.
🔹 KX-EX707PWG2-4G-W – WiFi + 4G Version
Maximum flexibility with both WiFi and cellular connectivity for backup communication and remote access.
Corrosive & Offshore Environment (SS316L Stainless Steel)
🔹 KX-EX707PWG2-W-316L – WiFi Version
Recommended for offshore, marine, and corrosive environments requiring enhanced corrosion resistance.
🔹 KX-EX707PWG2-4G-316L – 4G Version
Built for offshore and highly corrosive locations requiring remote cellular monitoring.
🔹 KX-EX707PWG2-4G-W-316L – WiFi + 4G Version
Premium configuration for offshore and corrosive hazardous areas requiring both WiFi and 4G connectivity.
KX-EX707PWG2 Explosion Proof Camera Technical Specifications:
| Feature | Details |
|---|---|
| Product Name | KX-EX707PWG2 Explosion Proof Camera |
| Certification | ATEX |
| Hazardous Area Rating | II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC IP68 T80°C Db |
| Protection Rating | IP66 |
| Camera Sensor | SONY 1/2.7" CMOS |
| Resolution | 2MP, up to 1920 × 1080 |
| Lens | 2.8–12mm |
| Night Vision | IR up to 30m |
| Day/Night Mode | IR-CUT Auto Switch |
| Minimum Illumination | Color 0.1Lux@F1.2 / B&W 0.01Lux@F1.2 |
| Video Compression | H.264 / H.265 / MJPEG |
| Frame Rate | Up to 25fps |
| Connectivity | WiFi / 4G / WiFi + 4G (model dependent) |
| WiFi Protocol | 802.11 b/g/n |
| WiFi Distance | Up to 100m |
| SIM Card Support | Yes (4G versions) |
| Storage | TF Card / Micro SD up to 128GB |
| Network Protocols | ONVIF, PSIA, CGI, ISAPI, GB28181 |
| Support Protocols | RTSP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP |
| Audio | Optional Built-in Microphone |
| Power Supply | DC12V / POE (Optional) / Built-in Battery (Optional) |
| Operating Temperature | -40°C to +60°C |
| Material | SS304 Stainless Steel / SS316L Stainless Steel |
| Installation Options | PTZ, Wall Bracket, Fixed Bracket, Pillar Base |
| Application | Indoor & Outdoor Hazardous Areas |
Certifications & Compliance:
🔗 ATEX Certified – Suitable for explosive gas and combustible dust atmospheres
🔗 II 2G Ex db IIC T6 Gb – Certified for explosive gas hazardous areas
🔗 II 2D Ex tb IIIC IP68 T80°C Db – Certified for combustible dust hazardous areas
🔗 IP66 Rated – Protection against dust and water ingress
🔗 Download Datasheet
Applications of KX-EX707PWG2 Explosion Proof Camera:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Offshore Platforms & Marine Applications
🔹 Manufacturing
What’s in the Box?
📦 1x KX-EX707PWG2 Explosion Proof Camera
📦 1x Mounting Hardware Kit
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2-3 Weeks (Estimated)
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the difference between SS304 and SS316L versions?
SS304 is suitable for most industrial hazardous environments, while SS316L is recommended for highly corrosive environments such as offshore platforms, marine applications, and saltwater exposure.
Can this explosion proof camera be monitored remotely?
Yes, depending on the selected model, the camera supports WiFi, 4G, or WiFi + 4G remote monitoring and mobile access.
Is this camera suitable for outdoor hazardous areas?
Yes, the KX-EX707PWG2 features IP66 protection and is designed for both indoor and outdoor hazardous environments.
Does the camera support night vision?
Yes, it includes infrared night vision with a range of up to 30 meters for 24/7 monitoring.
