Description

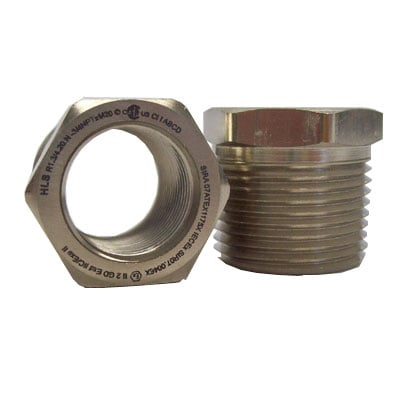

HLS ATEX Reducers – Nickel Plated Brass & Stainless Steel (Hazardous Area Certified)
The ATEX Reducers are designed for hazardous area installations where differing thread sizes require safe and certified adaptation. Used in explosive environments such as oil & gas, chemical plants, and industrial facilities, these reducers ensure compatibility between enclosure entries, cable glands, and conduit systems while maintaining full certification compliance.
Manufactured in high-quality nickel plated brass or 316 stainless steel, these reducers offer exceptional durability and corrosion resistance in harsh environments. They support both Metric and NPT thread configurations and are supplied with a nitrile O-ring for enhanced sealing. With robust ingress protection and wide temperature ranges, these reducers ensure long-term reliability and safety in demanding field conditions.
Key Features:
✅ ATEX & IECEx Certified – Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db
✅ Suitable for Zone 1/21 hazardous areas
✅ IP66 / IP68 protection with O-ring or sealant
✅ Available in Nickel Plated Brass and 316 Stainless Steel
✅ Wide temperature range: -100°C to +150°C (NPB) / up to +850°C (SS)
✅ Compatible with Metric and NPT thread systems
✅ Supplied with Nitrile O-ring (standard)
✅ High durability and corrosion resistance
✅ Designed for cable gland and conduit thread reduction
📦 Package Options:
🔹 1 Unit: Individual reducer for installation
🔹 Box Options: Available in 20, 25, or 2 units depending on SKU
ATEX Reducers Technical Specifications:
| Feature | Details |
|---|---|
| Product Type | Reducer (Thread Conversion Fitting) |
| Material Options | Nickel Plated Brass (NPB), 316 Stainless Steel (SS) |
| Temperature Range | NPB: -100°C to +150°C / SS: -100°C to +850°C |
| Certifications | ATEX, IECEx, Class I Div 1, Class II, Class III |
| ATEX Rating | Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db |
| Ingress Protection | IP66 / IP68 (with O-ring), IP54 (without) |
| NEMA Rating | NEMA 4X |
| Thread Types | Metric, NPT (varies by SKU) |
| O-Ring Material | Nitrile (Standard), Silicone optional |
| Impact Resistance | 7 Nm |
| Applications | Cable gland and conduit thread reduction |
| Mounting Requirement | L1 Locknut required for Exe installations |
| Compliance Standards | IEC/EN 60079 series, UL1203, UL514B, UL50, CSA standards |
| Packaging Options | 1 Unit or Box (2, 20, or 25 units depending on SKU) |
Certifications & Compliance:
🔗 ATEX Directive 2014/34/EU – Certified for explosive atmospheres
🔗 IECEx Certification– Global hazardous area compliance
🔗 UL & CSA Standards – Class I Div 1 Groups ABCD, Class II EFG, Class III
🔗 NEMA 4X – Corrosion and environmental protection
🔗 IP66 / IP68 – Dust-tight and water-resistant protection
🔗 Download Datasheet
Applications of ATEX Reducers:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Offshore Platforms
🔹 Industrial Manufacturing
What’s in the Box?
📦 1x ATEX Reducer (selected variation)
📦 Integrated Nitrile O-Ring
📦 Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2–4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the purpose of a reducer in hazardous areas?
Reducers allow connection between different thread sizes while maintaining explosion-proof integrity.
Are these reducers suitable for Zone 1 environments?
Yes, they are certified for ATEX Zone 1 and IECEx applications.
What materials are available?
Nickel plated brass and 316 stainless steel options are available.
Do they include sealing components?
Yes, a nitrile O-ring is supplied as standard for proper sealing and ingress protection.
