Bartec Handheld Scanner Supply modules BCS3600ex-IS
The Bartec Handheld Scanner Supply modules BCS3600ex-IS play a crucial role in providing an intrinsically safe power source (barrier) for hand-held scanners in environments where explosive atmospheres may be present. These modules include a safety barrier (evaluation barrier) designed to ensure the safe transmission of data lines within such hazardous conditions.
Distinguished by its seamless connectivity, the supply modules enable a direct link of data lines from hazardous areas to non-Ex systems, like PCs or PLCs, without the need for extra barriers or safety features. This adjustable functionality simplifies the retrofitting and modification of existing older systems to effectively accommodate the hand-held scanners.
Handheld Scanner Supply modules BCS3600ex-IS – Versions:
-

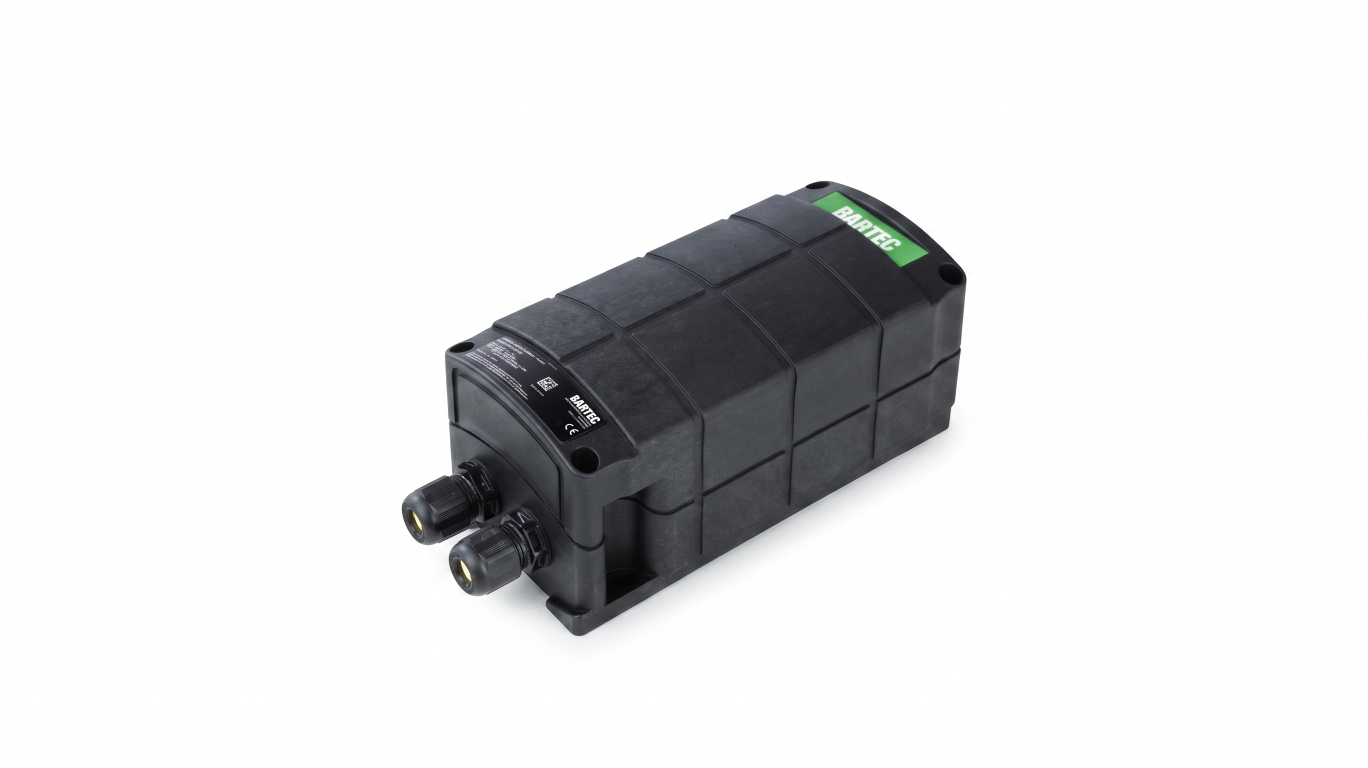

Universal supply module corded for hand-held scanner BCS3608ex-IS – Part # 17-A1Z0-0018
Specification:
| Explosion protection | | |
| Marking ATEX | Ex II 2(1)G Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex II 2(1)D Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | EPS 18 ATEX 1 013 X | |
| Marking IECEx | Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | IECEx EPS 18.0009X | |
| User environment | | |
| Operating temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) | |
| Relative humidity | 5 % ~ 95 % (condensing) | |
| Protection class (IEC 60529) | IP 65 | |
| Insensitivity to ambient light | 0 to 108.000 lux (in direct sunlight) | |
| Technical data | | |
| Size (H x W x D) | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) | |
| Weight | approx. 1050 g (approx. 2.31 lb) | |
| Input voltage | DC 24 V ± 10% / 0.05 A / 0.7 W | |
| AC 100 V - 240 V ±10% / 50/60 Hz / 0.01 A / 1 W | |
| Color | black | |
| Material | Thermoplastic | |
| Supported serial interfaces | Universal supply module to PC/Host | max. cable length |
| USB-SPP* | 5 m |
| RS232 | 15 m |
| RS422 | 1000 m |
| RS485 | 1200 m |
| * USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported. | |
| Data transmission/ Data processing | Unidirectional: Data can be sent from the scanner to another system via the universal supply module. Note on data transmission: Bidirectional data transmission is not supported. Note on data processing: All serial interfaces available on the universal supply module have no intelligence of their own. The interface itself is not able to process/ handle incoming data. A software application (e.g. software Keyboardwedge) is required. (not available in the scope of delivery from BARTEC). | |
| Connection to hand-held scanner | One hand-held scanner can be connected to the universal supply module. | |
| Serial parameters | The serial parameters of the Universal supply module are preset to the following parameters. The baud rate can be adjusted up to 115200 baud. The other parameters are preset and cannot be reprogrammed. | |
| Baud rate | 9600 Baud |
| Parity | None |
| Stop bits | 1 Bit |
| Data bits | 8 Bit |
| Hardware Handshaking | None |
| Software Handshaking | None |
| Warranty | 1 year | |
| Scope of delivery | Universal supply module | |
| Also required | (not included in the delivery) – Connecting cable from universal supply module to hand-held scanner – Connecting cable from universal supply module to PC/Host: Please use commercially available shielded data cables to avoid external interference. Recommendation: CAT5; similar or better | |
-
Universal supply module corded for hand-held scanner BCS3678ex-IS – Part # 17-A1Z0-0019
Specification:
| Explosion protection | | |
| Marking ATEX | Ex II 2(1)G Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex II 2(1)D Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | EPS 18 ATEX 1 013 X | |
| Marking IECEx | Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | IECEx EPS 18.0009X | |
| User environment | | |
| Operating temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) | |
| Relative humidity | 5 % ~ 95 % (condensing) | |
| Protection class (IEC 60529) | IP 65 | |
| Insensitivity to ambient light | 0 to 108.000 lux (in direct sunlight) | |
| Technical data | | |
| Size (H x W x D) | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) | |
| Weight | approx. 1050 g (approx. 2.31 lb) | |
| Input voltage | DC 24 V ± 10% / 0.05 A / 0.7 W | |
| AC 100 V - 240 V ±10% / 50/60 Hz / 0.01 A / 1 W | |
| Color | black | |
| Material | Thermoplastic | |
| Supported serial interfaces | Universal supply module to PC/Host | max. cable length |
| USB-SPP* | 5 m |
| RS232 | 15 m |
| RS422 | 1000 m |
| RS485 | 1200 m |
| * USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported. | |
| Data transmission/ Data processing | Unidirectional: Data can be sent from the scanner to another system via the universal supply module. Note on data transmission: Bidirectional data transmission is not supported. Note on data processing: All serial interfaces available on the universal supply module have no intelligence of their own. The interface itself is not able to process/ handle incoming data. A software application (e.g. software Keyboardwedge) is required. (not available in the scope of delivery from BARTEC). | |
| Connection to hand-held scanner | One hand-held scanner can be paired to the universal supply module (Point to Point). The hand-held scanner connects to the universal supply module via Bluetooth. The universal supply module is recognised as a serial connection by the PC/host. | |
| Bluetooth | Bluetooth 4.2 (LE), Class 2 Radio range (direct visual contact outside – laboratory values) with BCS3678ex Class 2: up to 100 m (300 ft.) only when receiving data | |
| Serial parameters | The serial parameters of the Universal supply module are preset to the following parameters. The baud rate can be adjusted up to 115200 baud. The other parameters are preset and cannot be reprogrammed. | |
| Baud rate | 9600 Baud |
| Parity | None |
| Stop bits | 1 Bit |
| Data bits | 8 Bit |
| Hardware Handshaking | None |
| Software Handshaking | None |
| Warranty | 1 year | |
| Scope of delivery | Universal supply module | |
| Also required | (not included in the delivery) – Connecting cable from universal supply module to hand-held scanner – Connecting cable from universal supply module to PC/Host: Please use commercially available shielded data cables to avoid external interference. Recommendation: CAT5; similar or better | |
-
Supply module Ex i corded for hand-held scanner BCS3608ex-IS- Part # 17-A1Z0-0025
Specification:
| Explosion protection | | |
| Marking ATEX | Ex II 2(1)G Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex II 2(1)D Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | EPS 18 ATEX 1 013 X | |
| Marking IECEx | Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | IECEx EPS 18.0009X | |
| User environment | | |
| Operating temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) | |
| Relative humidity | 5 % ~ 95 % (condensing) | |
| Protection class (IEC 60529) | IP 65 | |
| Insensitivity to ambient light | 0 to 108.000 lux (in direct sunlight) | |
| Technical data | | |
| Size (H x W x D) | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) | |
| Weight | approx. 1040 g (approx. 2.29 lb) | |
| Input voltage | DC 24 V ± 10% / 0.05 A / 0.7 W | |
| DC 24 V ± 10% / 0.2 A / 5 W AC 100 V - 240 V ±10% / 50/60 Hz / 0.1 A / 6 W | |
| Color | black | |
| Material | Thermoplastic | |
| Supported serial interfaces | Universal supply module to PC/Host | max. cable length |
| USB-SPP* | 5 m |
| RS232 (TTL-Pegel) | 15 m |
| * USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported. | |
| Data transmission/ Data processing | Unidirectional: Data can be sent from the scanner to another system via the universal supply module. Note on data transmission: Bidirectional data transmission is not supported. Note on data processing: All serial interfaces available on the universal supply module have no intelligence of their own. The interface itself is not able to process/ handle incoming data. A software application (e.g. software Keyboardwedge) is required. (not available in the scope of delivery from BARTEC) | |
| Connection to hand-held scanner | One hand-held scanner can be connected to the supply module Ex i. | |
| Passive Ex i interface (RS232 + USB) | Level signal | 5 V |
| Supply voltage | 5 V |
| Max. input voltage | Ui 6 V |
| Max. input current | I i 0.5 A |
| Max. input power | Pi 2 W |
| Max. inner capacity | Ci 5,7 μF |
| Max. inner inductance | Li 0 μF |
| Serial parameters | The serial parameters of the supply module Ex i cannot be reprogrammed and are preset to: RS232 and USB-SPP Host Parameters (Default) | |
| Baud rate | 9600 Baud |
| Parity | None |
| Stop bits | 1 Bit |
| Data bits | 8 Bit |
| Hardware Handshaking | None |
| Software Handshaking | None |
| Warranty | 1 year | |
| Scope of delivery | Supply module Ex i | |
| Also required | (not included in the delivery) – Connecting cable from supply module Ex i to hand-held scanner – Connecting cable from supply module Ex i to PC/Host: Please use commercially available shielded data cables to avoid external interference. Recommendation: CAT5; similar or better | |
-
Supply module Ex i Bluetooth for hand-held scanner BCS3678ex-IS- Part # 17-A1Z0-0028
Specification:
| Explosion protection | | |
| Marking ATEX | Ex II 2(1)G Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex II 2(1)D Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | EPS 18 ATEX 1 013 X | |
| Marking IECEx | Ex eb ma [ia Ga] IIC T4 Gb | |
| Ex tb [ia Da] IIIC T80 °C Db IP64 | |
| Certification | IECEx EPS 18.0009X | |
| User environment | | |
| Operating temperature | -20 °C to +50 °C (-4 °F to 122 °F) | |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) | |
| Relative humidity | 5 % ~ 95 % (condensing) | |
| Protection class (IEC 60529) | IP 65 | |
| Insensitivity to ambient light | 0 to 108.000 lux (in direct sunlight) | |
| Technical data | | |
| Size (H x W x D) | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) | |
| Weight | approx. 1040 g (approx. 2.29 lb) | |
| Input voltage | DC 24 V ± 10% / 0.05 A / 0.7 W | |
| DC 24 V ± 10% / 0.2 A / 5 W AC 100 V - 240 V ±10% / 50/60 Hz / 0.1 A / 6 W | |
| Color | black | |
| Material | Thermoplastic | |
| Supported serial interfaces | Universal supply module to PC/Host | max. cable length |
| USB-SPP* | 5 m |
| RS232 (TTL-Pegel) | 15 m |
| * USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported. | |
| Data transmission/ Data processing | Unidirectional: Data can be sent from the scanner to another system via the universal supply module. Note on data transmission: Bidirectional data transmission is not supported. Note on data processing: All serial interfaces available on the universal supply module have no intelligence of their own. The interface itself is not able to process/ handle incoming data. A software application (e.g. software Keyboardwedge) is required. (not available in the scope of delivery from BARTEC) | |
| Connection to hand-held scanner | One hand-held scanner can be paired to the supply module Ex i (Point to Point). The hand-held scanner connects to the supply module Ex i via Bluetooth. The supply module Ex i is recognised as a serial connection by the PC/host. | |
| Bluetooth | Bluetooth 4.2 (LE), Class 2 Radio range (direct visual contact outside – laboratory values) with BCS3678ex Class 2: up to 100 m (300 ft.) only when receiving data | |
| Passive Ex i interface (RS232 + USB) | Level signal | 5 V |
| Supply voltage | 5 V |
| Max. input voltage | Ui 6 V |
| Max. input current | I i 0.5 A |
| Max. input power | Pi 2 W |
| Max. inner capacity | Ci 5,7 μF |
| Max. inner inductance | Li 0 μF |
| Serial parameters | The serial parameters of the supply module Ex i cannot be reprogrammed and are preset to: RS232 and USB-SPP Host Parameters (Default) | |
| Baud rate | 9600 Baud |
| Parity | None |
| Stop bits | 1 Bit |
| Data bits | 8 Bit |
| Hardware Handshaking | None |
| Software Handshaking | None |
| Warranty | 1 year | |
| Scope of delivery | Supply module Ex i | |
| Also required | (not included in the delivery) – Connecting cable from supply module Ex i to PC/Host: Please use commercially available shielded data cables to avoid external interference. Recommendation: CAT5; similar or better | |
