RamFan UB20xx – 8″ Explosion Proof Fan

SKU: N/A

RamFan UB20xx – 8″ Inch, an explosion proof fan, is certified for use in hazardous areas that require Ex II 2 G Ex de IIB T6 Gb certification. In addition, it has received IECEx and INMETRO certifications. Protects against short circuits by incorporating an IP55 weather-tested switch housing with two integrated duct adapters. Thermally protected cutoff switch and weatherproof, dent-resistant, flame retardant, and chemically resistant PC/ABS anti-static enclosure are also included.

IECEx Certified

ATEX Rating

$2,15972

Price Depends on product option
Make a selection to update price

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

The smallest and lightest CFM available in a compact design. At 74 dB, this device is quite quiet. 7.6 m is the length of the power wire. The anti-static duct may be readily connected using the integrated duct adapters.

The ATEX Directive, IEC standards, and INMETRO standards are all met with this explosion proof blower/exhaust fan. The fan can be used to safely blast or exhaust dangerous gases without posing a risk of sparking.

Features:

  • ATEX Zone 1
  • Made in California, USA
  • High-pressure axial blower
  • Durable, PC/ABS anti-static casing is weatherproof, dent-resistant, v0 flame retardant, and chemical resistant
  • 2 integrated duct adapters
  • Starter secured in the flameproof motor enclosure to prevent the risk of ignition when powered on
  • Use pull switch to active ventilator
  • Compact and lightweight
  • IP55 rain switch enclosure

Specifications:

  Model UB20xx (115V) UB20xx (230V)
Part # EF7002 (115V) EF8002 (230V)
IMPA Codes 591416 591417
Motor 0.33 Hp 0.25 kW
Motor Type Totally Encapsulated Air Over Flame Proof
Electric 115V, 50/60Hz, 1ø 230V, 50/60Hz, 1ø
Amps (Start/Run) 7A / 2A 7A / 1.2A
Cable Lengths 25'/16 AWG 7.6 m/1.5 mm 2
Plug Types A.T.X. 100/130V A.T.X. 240V
Operating Temperature -22°F to +104°F -30°C to +40°C
Noise 74 dB @ 3' (1m)
Run Time Continuous
Weight 27 lbs 12 kg
Dimensions (h/w/d) 14 x 14 x 15.5 in 35 x 35 x 39 cm
Impeller 9-Blade
Duct Adapters

Air Flow

Part #EF7002
Free Air980 cfm (1,666 m³/hr)
15 ft/4.6 m 1-90° turn789 cfm (1,341 m³/hr)
15 ft/4.6 m duct 2-90⁰666 cfm (1,132 m³/hr)
25 ft/7.6 m duct 1-90⁰722 cfm (1,227 m³/hr)
25 ft/7.6 m duct 2-90⁰614 cfm (1,044 m³/hr)

Dimensions

Weight26.46 lb
Height13.78 in
Width13.78 in
Depth15.35 in
Motor0.34 hp

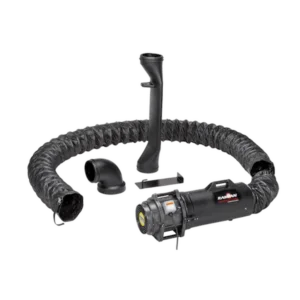

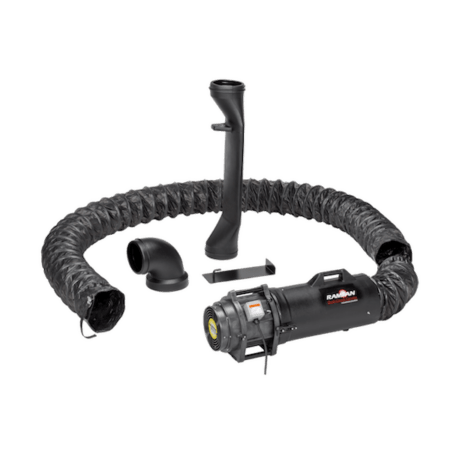

What’s inside the Blower Kit

QuantityDescriptionPrice
1 each8" 1/3HP, 115V, 50/60 IECEX/ATEX/INMETRO Blower-Exhauster, 8" Duct adapters$1,691

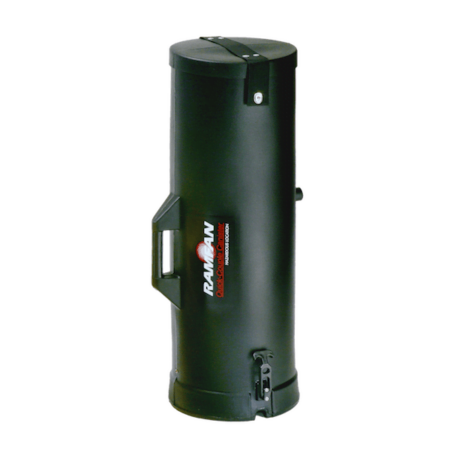

1 eachQuick-Couple Long Canister, 2 pcs (8") conductive duct - 5ft and 15ft and duct coupler
$809
1 eachM-E-D, Manhole Entry Device, MED Vent, Black Conductive$423
1 eachM-E-D, Manhole Entry Device, 90º Elbow Connector, Black Conductive$148
1 eachM-E-D, Manhole Entry Device, Universal Mount$45

Certifications:

Resources:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

Euramco ECKO Flex Conductive Duct - 15' ft

$30411

Euramco ECKO Flex Conductive Duct - 15' ft

$51030
