The PRTrans1000IS is a robust pressure data logger that enables users to continuously monitor and record transient pressure events. The logger samples at a rate of up to 100 Hz (10 ms), but captures data only when user-defined pressure thresholds are exceeded. The device can be configured to initiate the trigger on either high or low thresholds and to terminate it after a certain number of samples or when the signal reaches the specified stop threshold. The device is capable of logging up to 255 occurrences and collecting up to 262,143 pressure samples. Additionally, the data logger keeps track of up to 32 samples of “pre-trigger” data.
The PRTrans1000IS is inherently safe for Class I Division 1, Groups A, B, C, and D and is non-incendive for Class I Division 2, Groups A, B, C, and D. This certification qualifies the gadget for operation in harsh environments. The PRTrans1000IS is a battery-powered gadget with a standard 14-inch NPT connection for a simple connection to your pressure systems. Even if the user-replaceable battery is exhausted, the non-volatile memory will keep recorded data.
Features:
- Class I Division I
- Intrinsically safe
- Rugged
- 1/4 inch NPT pressure port
- 100 Hz operation
- Software selectable trigger modes and threshold levels
- Programmable start time
- Real-Time operation
- Semiconductor Strain Gauge Sensor
- Stainless Steel Enclosure
- Lithium Battery: 3.6 V
Versions
- 0 to 1000 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 100 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 100 PSIG Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 300 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 300 PSIG Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 30 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 30 PSIG Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 5000 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 500 PSIA Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
- 0 to 500 PSIG Intrinsically Safe Transient Pressure Recorder w/ 1/4″ NPT fitting, stainless steel enclosure
MadgeTech software is a robust analytic tool that is accessible for free download from their website at www.madgetech.com. The data can be examined graphically or tabulated, and summary and statistics views are provided for additional analysis.
Software Features:
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full-time zone support
- Data annotation
- Min./Max./Average lines
- Data table view
- Automatic report generation
- Summary view
- Multilingual
Software Key:
- Graph View
- Tabular Data View
- Statistics
- Digital Calibration
- Copy to Excel®
Applications
- Oil and gas applications
- Water hammer
- Compressors
- Pumps
- Pneumatics
- Process control systems
- Lubrication systems
- Chemical processing
- Pulp and paper processing
- Wastewater treatment
- HVAC
Specifications:

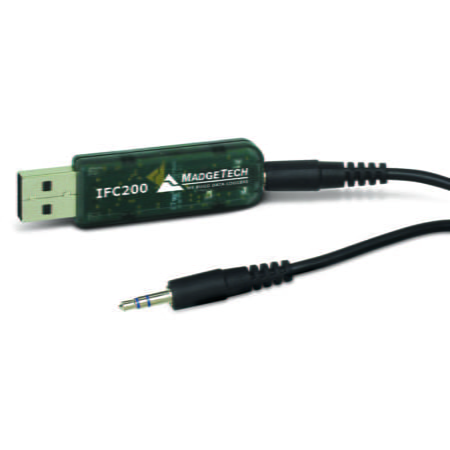

| Pressure Sensor: | Semiconductor strain gauge |
| Pressure Range: | 0 to 30, 100, 300, 500 PSIA/G; |
| 0 to 1000, 5000 PSIA | |
| Pressure Resolution: | 0.02, 0.1, 0.2, 0.5 PSIA/G; 1.0, 5.0 PSIA |
| Calibrated Accuracy: | 2 %FSR, .25 % @ 25 ºC typical |
| Pressure Response Time: | 0.1 ms (10 to 90 %FSR) |
| Repeatability: | ±0.5 %FSR; ±0.2 % typical |
| Adaptor: | 1/4” male NPT |
| Trigger Modes: | Software programmable window size or bi-level start/stop triggers. |
| Start Modes: | Software programmable for immediate start. |
| Real Time Recording: | May be used with PC to monitor and record data in real time |
| Memory: | 262,143 samples |
| Number of Events: | Up to 255 triggered events |
| Pre-trigger size: | Up to 32 samples |
| Reading Rate: | 1 reading every 10 ms to 1 every second |
| Calibration: | Digital calibration through software |
| Calibration Date: | Automatically recorded within device |
| Battery Type: | 3.6V lithium battery included; user replaceable |
| Battery Life: | 3 days continuous @ 10 ms sample rate |
| Shelf Life: | Up to 1 year when device is not in use |
| Data Format: | Date and time stamped PSIA (G), inches, feet, mmHg, bar, Torr, kPa |
| Computer Interface: | USB (interface cable required); 115,200 baud |
| Software: | XP SP3/Vista/Windows 7/Windows 8 |
| Operating Environment: | -40 ºC to +80 ºC (-40 ºF to +176 ºF), |
| 0 %RH to 100 %RH | |
| Dimensions: | 6.4 in x 1.25 in dia. (163 mm x 32 mm dia.) |
| Weight: | 12 oz (340 g) |
| Material: | Stainless Steel |
| Approvals: | CE, FM Certified Intrinsically Safe for Class I, Division 1 groups A, B, C and D |
| BATTERY WARNING: RISK OF FIRE OR EXPLOSION. DO NOT RECHARGE, FORCE OPEN, HEAT OR | |
| DISPOSE OF IN FIRE. |
