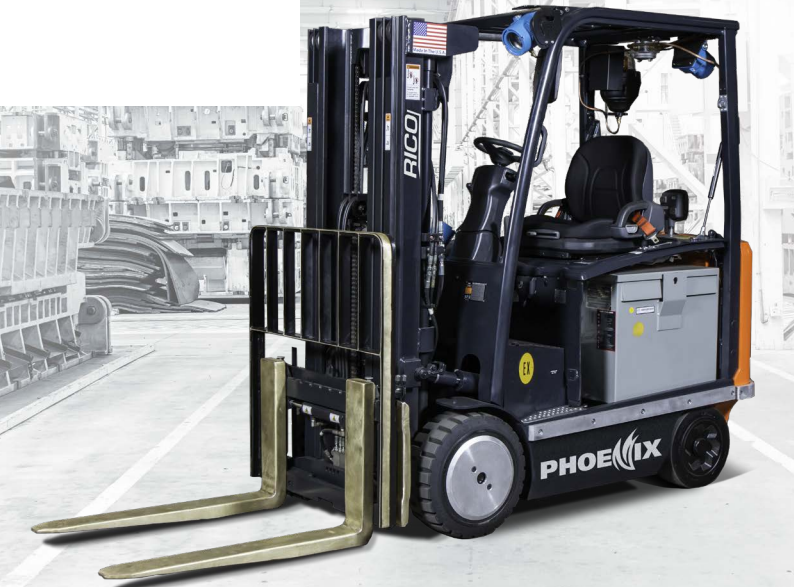

RICO DSD-EX-AC-60 Sit Down Counterbalanced Explosion Proof Forklift
The RICO DSD-EX-AC-60 is a heavy-duty, sit-down counterbalanced electric forklift specifically built for high-risk industrial environments. This model is a prime example of a rico-explosion-proof forklift. It is designed to provide safe operation in hazardous locations. Engineered to operate safely where flammable gases, vapors, or combustible dusts are present, this vehicle ensures maximum productivity. It does so without compromising facility safety. It provides a vital material handling solution for hazardous-area operations in chemical, oil, and gas processing plants.
Designed around outstanding operator visibility and ergonomics, the EX-60 features advanced AC motor technology. The technology has infinitely variable speed control for smooth, precise performance. Equipped with static-conductive steer tires and spark-proof perimeter protection made of brass and aluminum alloys, it actively eliminates mechanical sparking in the field. In addition, durable Mineral Insulated (MI) cables provide superior heat and water resistance. They also save space and ensure gas-tight sealing.
Key Features:
✅ FM Approved for Class 1, Div 1 & 2 (Group D) and Class 2, Div 1 & 2 (Group G)
✅ Built to UL583 specifications with FM Global approval
✅ 6,000 lb (2,721 kg) rated capacity at a 24-inch load center
✅ Intrinsically safe wiring limiting electrical and thermal energy
✅ Mineral Insulated (MI) gas/liquid-tight seamless copper cables
✅ Static-conductive steer tires to prevent electrostatic sparks
✅ Perimeter components and forks protected with brass and aluminum alloys
✅ FM-tested explosion-proof drive, pump, and electrical enclosures
✅ All-steel chassis construction with high-visibility operator design
📦 Package Options:
🔹 Standard Chassis Model: 44.5 in width, standard lift height options
🔹 Wide Chassis Model: 47.5 in width, capable of extended lift heights up to 276 in
🔹 Optional Lighting Packages: LED work lights, blue pedestrian light, and LED strobe light options
🔹 Maintenance Kits: Factory OEM packages available for IS circuits, hydraulics, controls, and MI cabling
RICO DSD-EX-AC-60 Technical Specifications:
| Feature | Details |
|---|---|
| Manufacturer & Model | RICO / DSD-EX-AC-60 |
| Hazardous Area Ratings | Class 1, Div 1 & 2, Group D / Class 2, Div 1 & 2, Group G |
| Approvals / Standards | FM Approved, Built to UL583 Specifications |
| Power & Operation Type | Electric / Sit Down Counterbalanced |
| Rated Capacity | 6,000 lbs (2,721 kg) |
| Load Center | 24 in (610 mm) |
| Voltage | 36V Lead Acid |
| Traction Motor | 32.2 hp (24 kW), AC/Transistor Control |
| Pump Motor | 8.7 hp (6.5 kW), AC/Transistor Control |
| Tires (Drive / Steer) | Cushion / Cushion (Static Conductive Steer) |
| Tire Sizes | Drive: 21×8×15 in / Steer: 16×6×10.5 in |
| Chassis Width | Narrow: 44.5 in (1,130 mm) Wide: 47.5 in (1,207 mm) |
| Length to Fork Face | 93.8 in (2,383 mm) |
| Forks Size | 2.25×5.25×48 in (57×133×1,219 mm) |
| Carriage Class | Class III (40.5 in / 1,029 mm width) |
| Travel Speed (NL/RL) | 4.5 mph (7.2 km/h) |
| Lift Speed (NL/RL - 2-Stg) | 18.9 ft/min / 16.7 ft/min |
| Truck Weight (w/o Battery) | 9,200 lbs (4,173 kg) |
| Max Lift Height (4-Stg) | Up to 276 in (7,010 mm) |
Certifications & Compliance:
🔗 Class 1, Division 1 & 2, Group D – Safe operation in flammable gas/vapor hazardous environments
🔗 Class 2, Division 1 & 2, Group G – Safe operation in combustible dust hazardous environments
🔗 UL583 & FM Approved – Tested and certified by FM Global (NRTL)
🔗 Flame-Path & Enclosure Standards – Explosion-proof drive, pump, and electrical control enclosures
🔗Download Datasheet
Applications of RICO DSD-EX-AC-60:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x RICO DSD-EX-AC-60 Explosion Proof Forklift
📦 1x Lead-Acid Battery Compartment Setup (Battery sold separately/as ordered)
📦 1x Standard Class III Carriage with 48″ Forks
📦 1x Mineral Insulated (MI) Cable Assembly Kit
📦 1x Set of Static Conductive Tires
📦 1x Complete EX Labeling & Tag Kit
📦 1x Documentation & EX Compliance Kit
Ordering & Shipping Details
📦 Lead Time: 2 – 3 Weeks
📍 Shipping Terms: Worldwide / Freight Shipping Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 RICO Intrinsic Safety (IS) Repair Kit (PN: 22-003098-SA)[cite: 1]
🔗 RICO Control Enclosure Rewire Kit (PN: 22-003099-SA)[cite: 1]
🔗 RICO Mineral Insulated Cable Kit (PN: 22-003104-SA)[cite: 1]
FAQs:
What hazardous locations is the RICO DSD-EX-AC-60 certified for?
It is FM-approved for Class 1, Division 1 & 2, Group D (flammable gases/vapors) and Class 2, Division 1 & 2, Group G (combustible dusts) environments.
How does this forklift prevent sparking in explosive atmospheres?
It uses intrinsically safe wiring, static-conductive steer tires, brass/aluminum alloy perimeter and fork protections, sealed gas-tight Mineral Insulated (MI) cables, and FM-tested explosion-proof electrical enclosures.
What is the maximum load capacity of the DSD-EX-AC-60?
It has a rated capacity of 6,000 lbs (2,721 kg) at a 24-inch (610 mm) load center.
Are OEM repair kits available for field maintenance?
Yes, RICO offers specialized OEM repair kits (including IS wiring kits, hydraulic seal sets, light kits, and MI cable kits) to keep the truck compliant throughout its life.
