Description

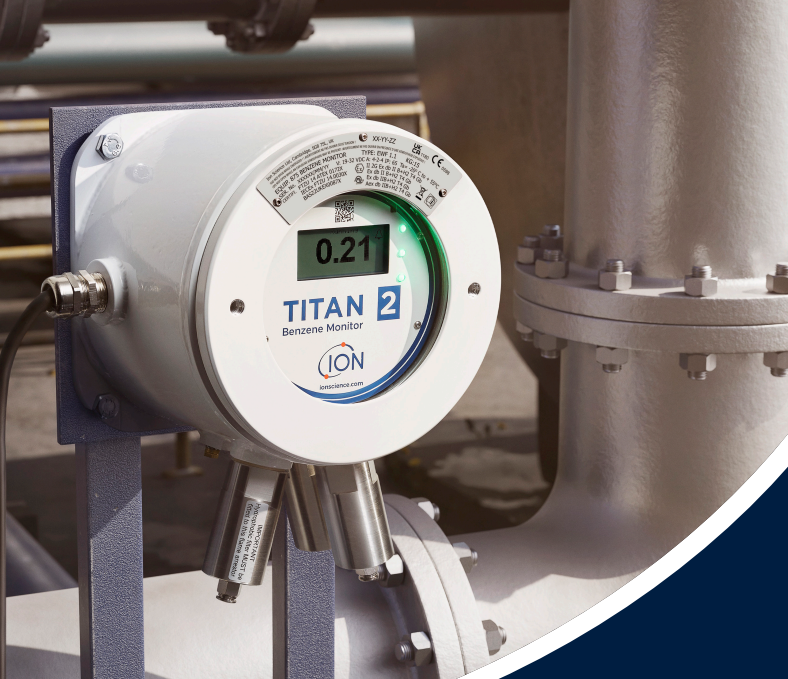

ION Science Titan 2 Benzene Monitor
The ION Science Titan 2 is an advanced, wall-mounted continuous benzene monitor. It is designed specifically for safety and compliance in hazardous industrial environments. Moreover, the Ion-science-titan 2-intrinsically-safe-fixed-benzene-detector is engineered to meet the needs of professionals in these demanding settings.
Benzene is a highly toxic carcinogen. Therefore, accurate, continuous detection is vital for protecting site personnel. The Titan 2 offers an unrivaled gas speciation method that eliminates interfering gases like toluene, xylene, and methane. As a result, it provides field professionals with highly accurate real-time readings they can confidently rely on.
Equipped with the innovative MiniPID T2 10.0 eV sensor, the Titan 2 boasts exceptional sensitivity and performance in the field. It can monitor ambient air and sample airborne hazards down to 0.02 ppm (20 ppb) in just 60 seconds.
Additionally, it is equally capable of assessing the performance of vapor recovery units (VRU) up to 20 ppm[cite: 18, 20]. Its internally regulated heating system ensures stable operation even at extreme temperatures. Meanwhile, the user-friendly magnetic switches allow safe menu navigation without opening the housing.
Key Features:
✅ ATEX, IECEx, and QPS Certified for Zone-Rated Hazardous Locationsbr/
✅ Two 3/4 NPT Gland Threads for secure cable entry, plus Dual Magnetic Switches for external menu control
ION Science Titan 2 Technical Specifications:
| Feature | Details |
|---|---|
| Sensor Type | MiniPID T2 10.0 eV Sensor |
| Target Gas Selectivity | Benzene specific within typical petrochemical matrix |
| Detectable Range | 0.02 ppm to 20 ppm |
| Lower Limit of Detection | 0.02 ppm (20 ppb) with a 10 ppb resolution |
| Accuracy | ±50 ppb or ±10%, whichever is greater (±10 ppb for readings ≤ 0.1 ppm) |
| Measuring Frequency | Once per minute (60 seconds) |
| Flow Rate | Sample flow rate ≥ 100 ml/min |
| Gas Sample Line Length | 10 meters maximum length (PTFE, 6 mm OD, 4 mm ID) |
| Display | Graphical Black & White LCD (64 x 128 pixels) with backlight; Bright LEDs for normal operation, faults, and alarms |
| User Interface | Two magnetic switches for non-intrusive menu operation |
| Temperature Stability | Internally regulated heating for stable operation |
| Operating Temperature | Recommended range of -20°C to +50°C (-4°F to +122°F) |
| Humidity Range | 0% to 99% RH |
| Ingress Protection | IP65 rated enclosure against dust and water ingress |
| Power Requirements | Vin (Nominal): 24 V DC @ 3.2 A | Vin (Max): 32 V DC @ 2.4 A Vin (Min): 19 V DC @ 4.0 A |
| Communication Outputs | Isolated 4-20 mA output; Isolated RS485 Modbus (ASCII or RTU, simplex/half-duplex or full-duplex); Micro USB for PC software |
| Relay Outputs | Two isolated, voltage-free outputs rated at 24 V DC @ 1.25 A |
| Data Storage | On-board MMC, 2GB capacity (minimum of 6 months data storage) |
| Cable Entry | Two 3/4 NPT gland threads |
| Weight and Dimensions | 15 kg (33 lbs); 219 x 219 x 172 mm (8.6 x 8.6 x 6.8 inches approx.) |

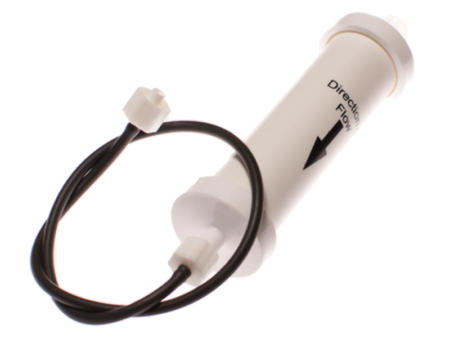

| Minimum Service Period | 6 months (PID lamp, electrode stack, inline filter, VRV restrictor, hydrophobic & carbon filter) | 12 months (adds AirSep filter) |
Certifications & Compliance:
🔗 ATEX-Certificate (FTZU 14 ATEX 0172X) – II 2G Ex db IIB+H2 T4 Gb (Tamb. -20°C to +55°C)
🔗 IECEx-Certificate (IECEX FTZU 14.0030X) – Ex db IIB+H2 T4 Gb (Tamb. -20°C to +55°C)
🔗QPS-Certificate (LR1621-1) – Ex db IIB+H2 T4 Gb / AEx db IIB+H2 T4 Gb (Ta = -20°C to +55°C)
🔗 Ingress Protection – IP65 rated dust and water resistance
🔗 Titan 2 brochure V1.0 US
Applications of ION Science Titan 2:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Bulk Storage Facilities
🔹 Labs & Processing Facilities
🔹 Asphalt Production
What’s in the Box?
📦 1x Titan 2 Benzene Monitor Base Unit (Ex d Enclosure)
📦 1x Removable Service Module Cartridge

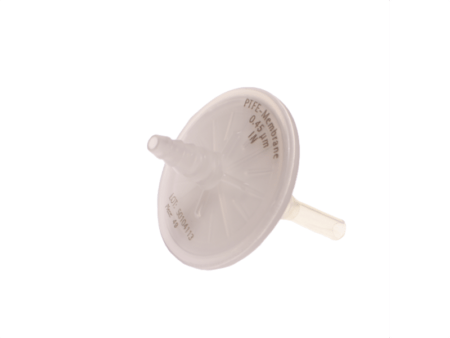

📦 1x Integrated Flame Arrestor & Hydrophobic Filter
📦 1x Internal Data Storage MMC Card (2GB)
📦 1x Documentation Kit & Installation Guide
Ordering & Shipping Details
📦 Lead Time: 2 – 3 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the detectable range and speed of the Titan 2?
The Titan 2 can accurately detect benzene levels from as low as 0.02 ppm (20 ppb) up to 20 ppm. Furthermore, it does so with a response sampling time of 60 seconds.
How does the monitor handle interfering gases like methane and toluene?
The Titan 2 utilizes a unique separation and sampling method that isolates benzene and eliminates common cross-interfering gases, providing clear, reliable gas speciation.
Can the Titan 2 be serviced without removing the entire device from the site?
Yes. It features an impressive modular design where the main Ex d casing can remain fixed, while the internal components are housed on a remotely serviceable, plug-and-play cartridge module.
Is there an extended warranty available for this instrument?
Yes, registering the monitor online allows you to extend the manufacturer’s warranty for up to 2 years.
