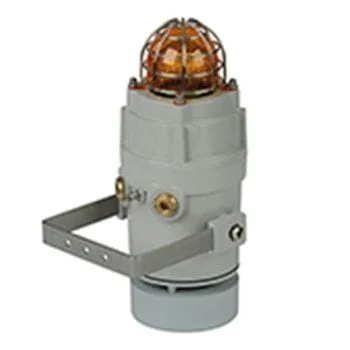

Tomar Explosion Proof Radial Alarm Horn and Xenon Strobe

SKU: N/A

The BEx range features enclosures manufactured from corrosion proof, marine grade copper-free LM6 aluminum with a Chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals, and an ingress protection of IP66/67.Marine grade, corrosion proof, LM6 aluminum enclosure

Hazardous Area Rating

,

ATEX Rating

,

Version

24VDC 5JOULE STRB/HORN UL/CSA, 120VAC 5JOULE STRB/HRN UL/CSA, 230VAC 5JOULE STRB/HRN UL/CSA

$2,50186

Price Depends on product option
Make a selection to update price

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Explosion Proof Radial Alarm Horn and Xenon Strobe D1xC1X05R

Features:

• Automatic synchronization on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard standard
• Very large termination area.
• Dual M20 cable entries – adaptors available.
• Stopping plug included.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Reverse polarity diode fitted.
• IP66/67 ingress protection.
• 380 candela effective light intensity.
• UV stable PC, field replaceable, color lens filter.

Introducing Explosion Proof Xenon Beacon (10 Joules) Tomar D1XC1X05R

The BExBG10 10 Joule beacon’s robust construction enables installation in the harshest of environments. Additional features include automatic synchronization on multi-beacon systems and standard stainless steel guard and mounting bracket.

Approvals And Coding:
• IECEx KEM 10.0002X
• IEC 60079-0 : 2011
• IEC 60079-1 : 2007-4
• IEC 60079-31 : 2013
• ATEX KEMA 00ATEX2006X
• EN 60079-0 : 2012 + A11
• EN 60079-1 : 2007
• EN 60079-31 : 2014
• TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
• Available safety-integrity level: SIL2
• Inmetro certificate: 10-IEx-0010
• II 2G Ex d IIC T4 Gb Ta. -50°C to +50°C
• II 2G Ex d IIC T3 Gb Ta. -50°C to +70°C
• II 2D Ex tb IIIC T120°C Db Ta. -50°C to +40°C
• II 2D Ex tb IIIC T135°C Db Ta. -50°C to +55°C
• II 2D Ex tb IIIC T150°C Db Ta. -50°C to +70°C

Specifications:
ItemDescription
Energy10 Joules (15Ws)
Flash Rate
1Hz (60 fpm)
Peak Candela1,000,000 cd - calculated from energy (J)
Eff. Intensity cd500 cd - calculated from energy (J)
Peak Candela87,590 cd* - measured ref. to I.E.S.
Eff. Intensity cd380 cd* - measured ref. to I.E.S.
Lens colorsAmber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC12 vdc; 24vdc; 48vdc
Voltages AC115vac; 230vac
Ingress protectionBG 10D: IP66/67 BG 10E: IP66
Enclosure materialMarine-grade copper free LM6 Aluminum
Enclosure finish
Chromate & powder coated finish - anti-corrosion
ColorRAL3000 Red
Cable entriesDual M20 ISO (one stopping plug incl.)
Terminals0.5 - 2.5mm² (20-14 AWG)
Enclosure volume<2 liters
DC Line monitoringBlocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode
Grounding stud
M5
Temperature range-50° to +70°C (-58°F to +158°F)
Relative humidity90% at 20°C [68°F]
Tube lifeEmissions are reduced to 70% after 8 million flashes
WeightDC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs

Explosion Proof Radial Alarm Horn and Xenon Strobe D1xC1X05R
