Intrinsically Safe TVOC 2 Fixed PID Detector

SKU: TV2SXBMX-X

TVOC 2 is a fixed continuous PID detector for the detection and measurement of total volatile organic compounds (TVOCs). Its photoionisation detection (PID) sensor capabilities utilise advanced patented Fence Electrode Technology with increased resistance to humidity and contamination.



Weight3.5 lbs
Dimensions7.4 × 4.9 × 3 in
ATEX Rating

,

IECEx Certified

$3,14160

Intrinsically Safe TVOC 2 Fixed PID Detector

robust fixed PID detector, TVOC 2 has a selectable detection range of 0 – 10 ppm, 0 – 100 ppm or 0 – 1000 ppm and is ideal for use in manufacturing and process industries where VOCs are typically present.

With a 4-20 mA analogue output, TVOC 2 can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high VOC levels in the working environment.

The instrument’s ATEX approvals enable a 3 wire TVOC system to be used in Zone 2 hazardous areas without safety barriers, whilst its ATEX and IECEx approvals allow TVOC 2 to be used in Zone 1 hazardous areas with safety barriers.

Simple to install service and calibrate, TVOC 2 requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.

Best available photoionisation (PID) detection
  • PID independently verified as best performing on the market
  • Range: 0 to 10, 0 to 100 or 0 to 1000 ppm from just one instrument
  • In-built humidity resistance with no need to compensate
  • Anti-contamination design for extended field operation
  • Variable duty cycle prolongs run time
  • Reliable diffusive monitoring – no pump required
Safety
  • Accurate results over all environmental conditions
  • Rugged and robust design withstands harsh environments
  • Large LCD display for clear readings
  • ATEX and IECEx approved
Ease of use
  • Simple to use – minimal training required
  • Easy access PID sensor for fast, simple servicing
  • Simple calibration procedure
  • Easily integrated into a control system
Low-cost operation
  • Inexpensive consumables and parts
  • Two-year warranty when instrument registered online

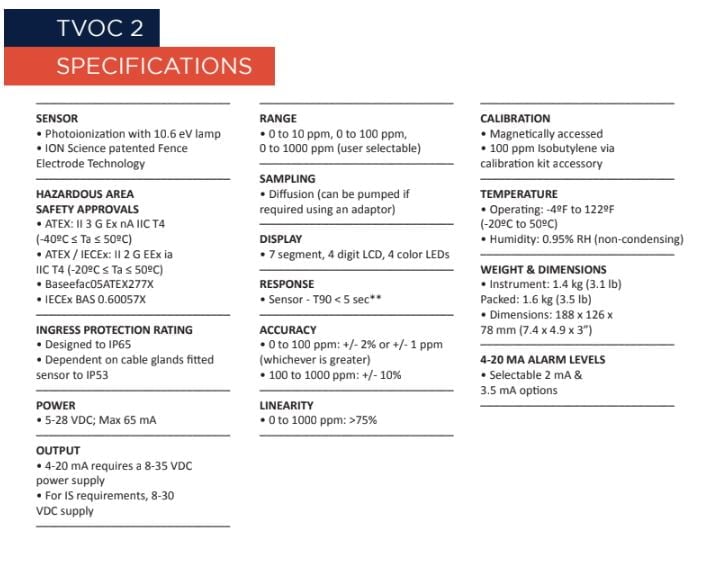

Intrinsically safe TVOC 2 fixed PID Detector specs
Intrinsically safe TVOC 2 fixed PID Detector specs

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

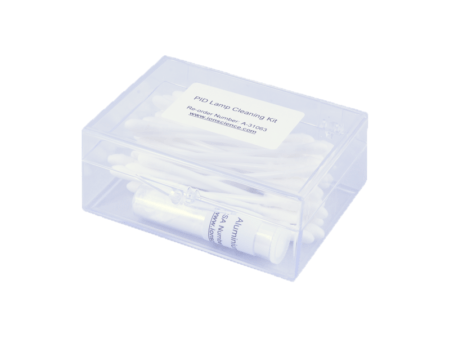

Ion Science PID lamp cleaning kit

Ion Science PID lamp cleaning kit

This conveniently packaged PID lamp cleaning kit is available for cleaning the lamp within the PID sensor to remove dirt, grease, and grime from your lamp window ensuring optimal performance of your instrument.This accessory is compatible for use with all Ion Science 10.0eV and 10.6eV PID lamps. It should not be used with the 11.7eV lamp.

Brand: Ion Science

In Stock

$6120

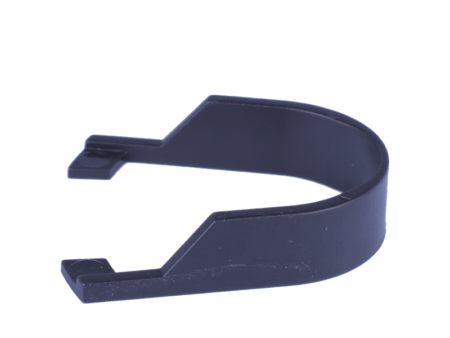

Intrinsically safe Ion Science PID sensor stack removal tool

Ion Science PID Sensor Stack Removal Tool

SKU: 846216

  • The Ion Science PID sensor stack removal tool is compatible for use with Intrinsically Safe TVOC 2 Fixed PID Detector

Brand: Ion Science

In Stock

$1020

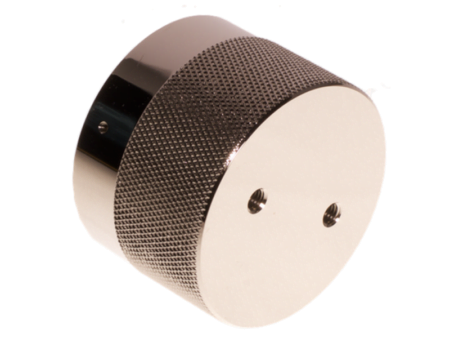

Intrinsically safe Ion Science TVOC 2 fixed cal adaptor

Ion Science TVOC 2 Fixed Cal Adaptor

SKU: 849209

This fixed cal adaptor is an alternative sensor housing allowing the TVOC to be bump tested from a remote location. Pipe connectors are attached via m5 threaded holes and gas pushed to the sensor via a gas bottle/flow regulator (sold separately).

Brand: Ion Science

In Stock

$21930

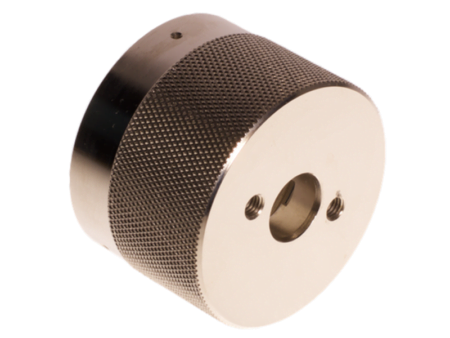

Intrinsically safe Ion Science TVOC 2 flow adaptor cap

Ion Science TVOC 2 Flow Adaptor Cap

SKU: 849206

This TVOC flow adaptor is an alternative sensor housing used to integrate the TVOC into a pumped system. Pipe fitting can be fitted via 2 x M5 holes as entry and exit points. IMPORTANT: Maximum pressure 300 mBar. Recommended flow 250 to 500 ml/min.

Brand: Ion Science

In Stock

$10710

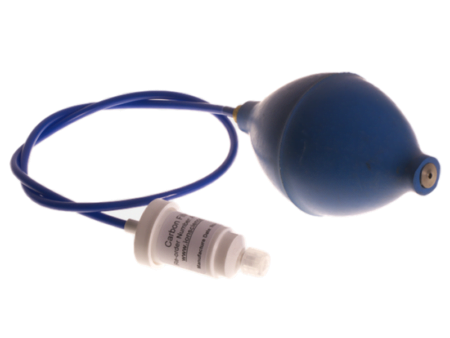

TVOC2-accessory-Zero-cal-kit-details

Ion Science TVOC 2 hand aspirator

 This kit is comprised of a hand separator, tubing, and carbon filter. Pumping the aspirator draws ambient air through the carbon filter presenting clean (VOC free) air to the TVOC sensor. This avoids having to use a zero gas span bottle.

Brand: Ion Science

In Stock

$7140
