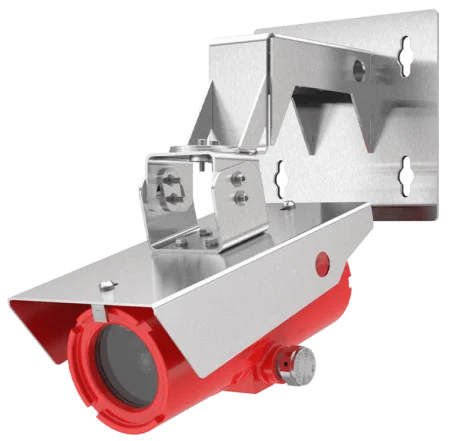

Spectrum F101-P1377-BD Explosion-Proof 5MP fixed Camera
Features:
Spectrum Explosion-Proof Fixed Camera
Casing
- IP66-rated, powder coated aluminum chassis
- Casing manufactured and certified by Spectrum Camera Solutions, LLC
| Technical Data | |
| Model | Spectrum F101-P1377-BD |
| Camera | |
| Image sensor | 1/2.7” progressive scan RGB CMOS |
| Lens | IR corrected, CS-mount lens, P-Iris Varifocal 2.8–8 mm, F1.2 Horizontal field of view: 111°–38° Vertical field of view: 81°–28° |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | 5 MP 25/30 fps with Forensic WDR and Lightfinder: Color: 0.13 lux, at 50 IRE F1.2 B/W: 0.03 lux, at 50 IRE F1.2 |
| Shutter speed | WDR: 1/33500 s to 1/5 s |
| No WDR: 1/50000 s to 1/5 s | |
| Sensor | Axis F101-A XF P1377 |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1 GB RAM, 512 MB Flash |
| Compute capabilites | Machine learning processing unit (MLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Motion JPEG |
| Resolution | 2592x1944 (5 MP) to 160x90 2688x1512 (4 MP) to 160x90 1280x720 (HDTV 720p) to 160x90 |
| Frame rate | Capture mode 5 MP: 25/30 fps (50/60 Hz |
| Capture mode 4 MP: 25/30 fps (50/60 Hz) | |
| Capture mode HDTV 720p: 180 fps | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
| Pan/Tilt/Zoom | Digital PTZ Uploadable PTZ driver (Pelco D pre-installed) |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate |
| Audio input/output | External microphone input, line input, digital input with ring power, line output, built-in microphone (can be disabled), automatic gain control |
| Network | |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS)a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System integration | |
| Application programming interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com One-Click Cloud Connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
|
| Onscreen controls | Electronic image stabilization Day/night shift Defogging |
| Wide dynamic range | |
| Event triggers | Analytics, shock detection, edge storage events, supervised external input, audio level, time scheduled |
| Hardware: network, ring power overcurrent protection MQTT subscribe | |
| Event actions | MQTT publish |
| Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, play audio clip, WDR mode, day/night mode | |
| Data streaming | Event data |
| Built-in installation aids | Focus assistant, pixel counter, remote back focus, autorotation |
| Analytics | |
| Axis Object Analytics | Object classes: humans, vehicles |
| Trigger conditions: line crossing, object in area Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes Polygon include/exclude areas Perspective configuration | |
| ONVIF Motion Alarm event | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection, AXIS Motion Guard, | |
| AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, audio detection | |
| Supported | |
| AXIS Live Privacy Shield | |
| Support for additional applications if the device is used with compatible accessories. For more information, contact your Axis partner. | |
| Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | Aluminum |
| Weight | 6.4 kg (14 lb) |
| Dimensions | 13.85 x 7.20 x 6.01 in (352 x 183 x 153 mm) |
| Power | Camera: Power over Ethernet (PoE) 57 VDC IEEE 802.3af/802.3at Type 1 Class 3, max 10.7W, typical 5.4W |
| Heater: 12-24 VAC/VDC 25W | |
| Storage Conditions | .-40°C to 65°C (-40°F to 149°F) |
| Humidity 5-95% RH (non-condensing) | |
| Operating Conditions | Zone system: -50°C to +60°C |
| (USA) Class/Division system: -40°C to +60°C | |
| Humidity 10-100% RH (condensing) | |
| Warranty | 5-year limited warranty, see www.spectrumcamera.com/warranty |
| Approvals | Hazardous Area |
| FM3600, FM3615, ANSI/ISA/EN/IEC/CAN/ CSA-C22.2 60079-0, ANSI/UL/EN/IEC/CAN/ CSA-C22.2 60079-1, ANSI/UL/IEN/EC/CAN/ CSA-C22.2 60079-31 | |
| EMC | |
| EN 60032 Class A, EN 50121-4, IEC 62236-4, EN 60024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 | |
| Safety | |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IS 13252 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068- 2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) | |
| Network | |
| NIST SP500-267 | |
| Explosion-proof Certifications | USA: |
| Class I Division 1 Groups BCD T6 Ta= -40°C to +60°C, Type 4X, IP66 | |
| Class II/III Division 1 Groups EFG Ta= -40°C to +60°C, Type 4X, IP66 | |
| Certificate: FM18US0262X | |
| Canada: | |
| Class I Division 1 Groups BCD T6 Ta= -50°C to +60°C, Type 4X, IP66 | |
| Class II/III Division 1 Groups EFG Ta= -50°C to +60°C, Type 4X, IP66 | |
| Class I, Zone 1, AEx/Ex db IIB+H2 T5 Gb Ta = -50°C to +60, Type 4X, IP66 | |
| Zone 21, AEx/Ex tb IIIC T85°C Db Ta = -50°C to +60°C, Type 4X, IP66 | |
| Certificate: FM18CA0126X | |
| ATEX: | |
| II 2 G Ex db IIB+H2 T5 Gb Ta = -50°C to +60°C, IP66 | |
| II 2 D Ex tb IIIC T85°C Db Ta = -50°C to +60°C, IP66 | |
| Certificate: FM18ATEX0073X | |
| IECEx: | |
| Ex db IIB+H2 T5 Gb Ta = -50°C to +60°C, IP66 | |
| Ex tb IIIC T85°C Db Ta = -50°C to +60°C, IP66 | |
| Certificate: IECEx FMG 18.0029X | |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available at axis.com/ vms |
| Languages (Camera) | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Polish |

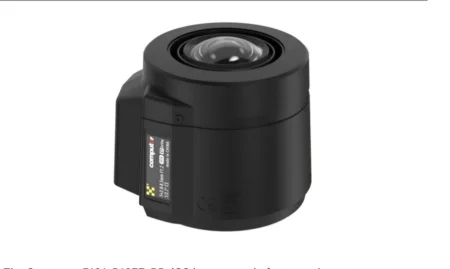

| Upgraded i-CS lens option | Spectrum F101-P1377-BD-iCS |
| Explosion-proof 5MP fixed camera with upgraded i-CS lens | |
| Key Features | IR-corrected lens |
| F-number 1.2 | |
| Focal length 2.8-8.5mm | |
| Supports sensors up to 1/2.7” | |
| The Spectrum F101-P1377-BD-iCS lens upgrade features the most recent industry standard in intelligent CS-mount optics. |
|
| The i-CS lens includes three motors, which enable automatic and remote zoom, focus, and iris opening. |
|
| Lens Computar i-CS 2.8-8.5 mm offers great flexibility to your installation thanks to its open protocol and the ability for the camera to interface with multiple features. |
|
| The lens is IR-corrected. | |
| This means that you don’t need to adjust the camera’s focus when you shift between day and night mode using the IR-cut filter. |
|
