Home » Intrinsically Safe Products » Spectrum 1313-2-SPH Industrial Control Panel-Intrinsically-Safe

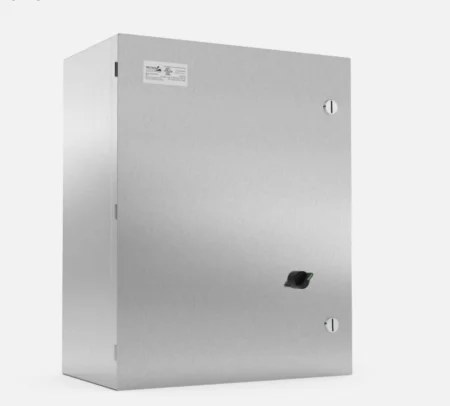

Spectrum 1313-2-SPH Industrial Control Panel-Intrinsically-Safe

Spectrum 1313-2-SPH Industrial Control Panel-Intrinsically-Safe

SKU: 1313-2-SPH
Q&AsWrite A Review

The Spectrum 1313-2-SPH, a UL listed industrial control panel, certified for hazardous areas, injects power to (2) 30W PoE+ devices, perfect for demanding installations in challenging environments.

Hazardous Area

Class 1 Division 2

$4,80000

This product is currently out of stock, but our sales team can help you find the perfect replacement.

Get Help Now

FOUND IT CHEAPER?

WE MATCH IT!
PRICE MATCHGUARANTEE

Shipping Time: 1-2 Weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category: Tags: , , Brand:
Support Image
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat with us

Spectrum 1313-2-SPH Industrial Control Panel-Intrinsically-Safe

Introducing Spectrum 1313-2-SPH Industrial Control Panel-Intrinsically-Safe a UL listed industrial control panel, holds hazardous-area certification for Class I, Division 2, groups B, C, D T4. Facilitating the injection of up to (2) 30W PoE+ devices, it is tailored for challenging environments within surveillance cabinets, offering a ruggedized design capable of withstanding shock, vibrations, and temperatures ranging from -25°C to +40°C (-13°F to +104°F). Ideal for demanding installations, this control panel ensures robust performance and reliability.

Features:

  • EEE 802.3at PoE+: Supplies 30 watts per port for robust power delivery.
  • IEEE 802.3af Support: Compatibility with devices using IEEE 802.3af Power over Ethernet.
  • Dual-Speed SFP Slot: Dual-speed support for the SFP slot, providing versatile connectivity.
  • Link Pass-Through: Includes link pass-through functionality for seamless communication.
  • Operating Temperature Range: Effective operation in temperatures from -25°C to +40°C.
  • Class I, Division 2 Certification: Classified as Class I, Division 2, Groups B, C, D, suitable for hazardous environments.
  • Full/Half-Duplex Flow Control: Enables optimized data transmission with full/half-duplex flow control.
  • Auto-MDI/MDIX Support: Facilitates hassle-free network configuration with automatic MDI/MDIX support.
  • Auto-Negotiation Feature: Automatically adjusts network settings through the auto-negotiation feature.
  • Store-and-Forward Transmission: Utilizes a store-and-forward transmission mechanism for efficient data transfer.
  • 10K Byte Jumbo Frames: Supports 10K byte jumbo frames for improved network performance.

Spectrum Industrial Control Panel-Intrinsically-Safe

Specifications:

Technical data
ModelSpectrum 1313-2-SPH
General
Dimensions406.4 x 508 x 225.425 mm ( 16 x 20 x 8.875 in. )
Weight19.05 kg ( 42 lbs )
Material316 Stainless Steel
Operating Conditions-25°C to +40°C
Storage Conditions-40°C to +85°C
UL Listed File NumberE481600
Input120VAC 60HZ 10A
OutputIEEE 802.3at 60W
Power consumption without POE3.53 Watts (No PoE) 63.5 Watts (2 ports PoE)
Status LEDSCopper Port: Link/ACT Copper Port: Gigabit Transmission SFP Port: Link/ACT PoE Power Input Power
Explosion-proofClass I Division 2 Groups B,C,D
CertificationsCE Mark, FCC Class A, EN55011, EN55022/EN61000-6-4 (EMC), EN55024/EN61000-6-2 (Immunity), EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6(CS) EN61000-4-8 (Magnetic Field), IEC60068-2-27(Shock), IEC60068-2-32 (Free fall), IEC60068-2-6 (Vibration)
StandardsIEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3z IEEE 802.3af
Warranty3-year limited warranty, see spectrumcamera.com/warranty

Spectrum Industrial Control Panel-Intrinsically-Safe
